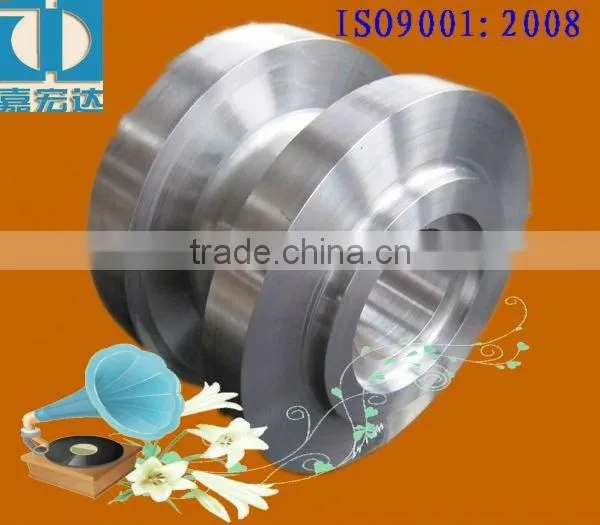

Help CenterANSI Carbon Steel Forging Parts China Professional Manufacturer
Related Products
Specifications
ISO9001:2008material:A105
OD=680mm
weight=649kg
price range:$1900-$2000
We are pleased to offer you our best quotation if we receive your drawings & the technical requirements!Welcome to your enquiry!
chemical composition
Element |
C% |
Mn% |
P% |
S% |
Si% |
Cr% |
Ni% |
Mo% |
Cu% |
V% |
CE |
|
Required |
Min |
|
0.6 |
|
|
0.10 |
|
|
|
|
|
|
Max |
0.23 |
1.05 |
0.035 |
0.035 |
0.35 |
0.30 |
0.40 |
0.12 |
0.40 |
0.08 |
0.43 |
|
Heat No.: 11607181 |
0.18 |
0.97 |
0.02 |
0.008 |
0.27 |
0.02 |
0.01 |
0.01 |
0.01 |
0.01 |
0.35 |
|
mechanical properties
Heat No. |
HT No. |
Y.S.(Mpa) |
T.S.(Mpa) |
E.% |
R.A.% |
HARDNESS(BHN) |
≥250 |
≥485 |
≥22 |
≥30 |
137-187 |
||
11607181 |
ZJZ110910 |
367 |
554 |
33.0 |
74.9 |
158 |
heat treatment
Heat Treatment Process | |||
Quenched |
Austenitized to 910°CX2.00HRS |
||
Liquid |
WATER |
||
Start Temp |
22°C |
End Temp |
40°C |
Tempered |
600°CX3.50HRS AIR COOLED |
||
Now I’d like to introduce our products,relevant reports and certifications to you..And it is our sincere wish that we have the privilege of serving you soon.
Material |
Forged Carbon Steel, Stainless Steel , Duplex Stainless Steel , Low Alloy Steel (Like A105,LF2,LF6,F6a,F304,F316,F22,F51,F11,F317L,F60…) |
|
Main products |
forged flange |
slip-on flange,welding neck flange,socket welding flange,threaded flanged,lap joint flange,blind flange,ring joint flange,long welding neck flange |
free forgings |
body,body adapter,stem housing,trunning plate,seat ring,ring |
|
Forging style |
Closed die forging |
|
open die forging(free forging) | ||
Main market |
Africa, North America, South America, Southeast Asia, Mid East, Eastern Asia, Eastern Europe |
|
Reports |
Material test (as per EN10204 3.1)
|
1 Chemical composition (C,Mn,P,S,Si,Cu,Ni,Cr,Mo,V,CE) 2 Mechanical properties(yeild strength,tensile strength,elongation,reduction of area) 3 heat treatment(normalized,tempered,quenched,anneal) 4 Hardness(standard:NACE MR0175) 5 Impact test |
|
Material test (as per EN10204 3.2) |
Third Part Inspection is witnessed by BV. |
|
|
Ultrasonic Test (100% Area & ALL QUTY.) |
UT testing standard:ASTM A388 UT acceptance standard: ASME B16.34 APPENDIX IV
|
|
MPT |
As per your requirements |
|
Dimension report (ALL QUANTITY) | ||
Test block |
It is taken from the location of poduct for mechanical &chemical test. |
|
Our factory pay more closed attention to our products’ quality and stage inspection.Based on that, we have a great success in the past ten years.We have our own factory for twenty years.If you are interested in our products and wanna establish business ralations with us,we are pleased to quote you our best price as per your drawings you require.
Welcome to your enquiry!
