12x10"300NB Body Adapter Free Forging
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanxi, China
Brand Name:
JHD
Model Number:
12x10"FB(300NB) BODY ADAPTER CLASS900
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB/CIF TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10x8"250NB Body Adapter Free ForgingNegotiableMOQ: 5 Pieces -
12"FB 200NB Body Adapter Free ForgingNegotiableMOQ: 5 Pieces
-
12"FB Body Adapter ForgingNegotiableMOQ: 5 Pieces
-
12"RB Body Adapter Free ForgingNegotiableMOQ: 5 Pieces
-
ANSI LF2 Steel Body Adapter Forging Made in ChinaUS$ 2,000 - 2,200MOQ: 2 Pieces
Place of Origin
Shanxi, China
Brand Name
JHD
Model Number
12x10"FB(300NB) BODY ADAPTER CLASS900
Application
Valve body connection
Material
Steel
Specifications
Focus on process quality & stage inspection.Integral test bars are taken from forgings.
Widely used in petroleum industry etc
SERVICE
1.Best Quality
2.Professional Service
3.Full set quality control
4.Competitive Price
PRODUCT INFORMATION
CHEMICAL COMPOSITION
| C% | Mn% | P% | S% | Si% |
| 0.18 | 0.97 | 0.02 | 0.008 | 0.27 |
| Cr% | Ni% | Mo% | Cu% | V% |
| 0.02 | 0.01 | 0.01 | 0.01 | 0.01 |
MECHANICAL PROPERTIES
| Material:ASTM A105 FORGED CARBON STEEL | Yield=374Mpa |
| UT as per ASME A355 & ASME B16.34 | Tensile=584Mpa |
| Minimum reduction ratio of product is 4:1 | Elongation=32.4Mpa |
| Heat-treatment:Q+T | Reduction=72.6Mpa |
- The visual & dimension & hardness on component are inspected & tested.
- All procedures of production are recorded & traceability and offer the 3.1 certificate.
- According to customer demand,we would carry out the intermational Third-Party Inspection(TPI) and offer EN10204 3.2 Certificate.
- The integral test bars for mechanical property are taken from location of forings.
About us
Focus on process quality & stage inspection.
We are professional manufacturer of forgings and have 10 year’s forgings export experience.
For the forging,the material of our capability include all kinds of steel(like CC/CS/Martensitic Steel/Duplex SS)
Our company is ISO9001:2008 Certified for the production & sevice of forging steel parts of valves & flanges and design.
All procedures of making included heat-treatment are completed in our own forged shop,heat-treatment shop and machining shop.

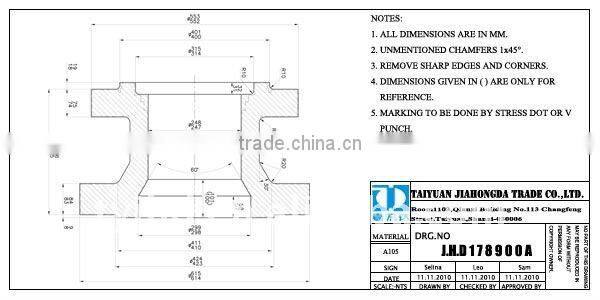

DRAWING

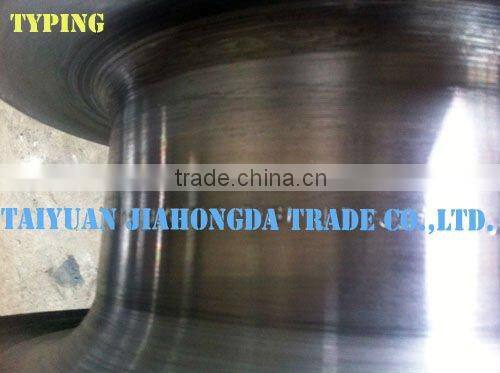

TYPING

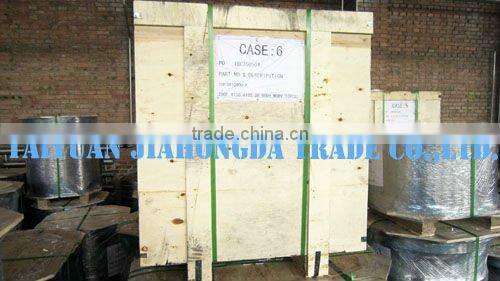

PACKING
