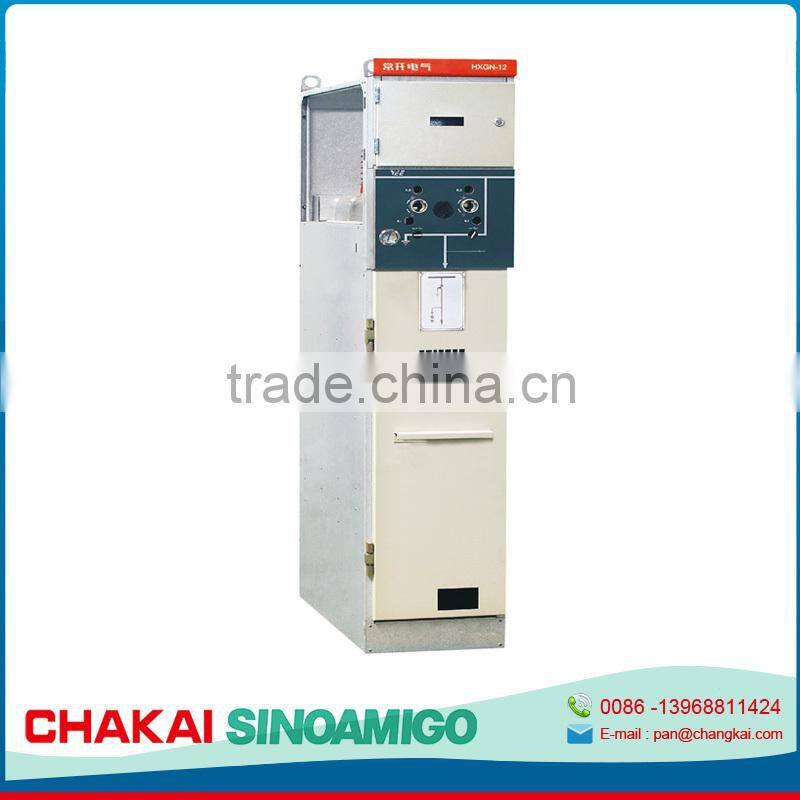

China's fastest growing factory best quality HXGN15-12L HV Switchgear Metal-clad AC Ring Main Unit electric control panel
- 50 Set / Sets per Month
- NINGBO / SHANGHAI
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CHANGKAI /SINOAMIGO | Model Number: | HXGN15-12L |
Product Description
Description of HXGN15-12L HV Metal-clad AC Ring Main Unit
electric control panel HXGN15-12L HVswitchgear metal enclosed AC ring main unit is a new HV apparatus which introduced from abroad and accord with the requirement of rural distribution and city distribution in nation. Main switch, operation mechanism and component use the SFL-12/24 model SF6 switch equipment produced by ABB company or FLN36-12D model SF6 switch equipment produced by our company. Also can use the HAD/US model SF6 circuit breaker or VD4-S model vacuum circuit breaker produced by company ABB according to requirement of customer operation type is manual and motor.
Ambient condition
1. Ambient temperature: -25°c~+40°c;
2. Altitude: ≤1000m;
3. Relative humidity: daily average ≤ 95%, monthly average ≤ 90%;
4. Occasions without flammable and explosive matter, without corrosive chemical and frequent severe vibration, without strong shake.
Product feature
Panel structure: The panel body is enclosed by 2mm aluminium-zinc plated steel plate after multi-bending. It is simple, firm, delicate and peculiar.
1. Busbar compartment: The busbar compartment is located in the top and connect with neighhboring panel.
2. Load break switch is a separated unit with SF6 gas.
3. Cable compartment: Approximate 75% room of connecting cable and installing fuse, earthing switch and PT.
4. Mechanism chamber and interlock: The chamber consists of operating mechanism, mechanism interlock, position indicator, auxiliary contact trip coil, charge indicator and interlock.
5. LV chamber: It is lockted in the top. It mainly used for installing instrument, relay and motor.
6. Circuit breaker compartment: The circuit breaker (SF6 or Vacuum) is located below load break switch.
Pressure release:
A. Upper pressure release: It is mainly used for releasing gas pressure which produced by arc accident in busbar load break switch compartment.
B. Down pressure release: It is mainly used for ealeasing gas pressure which produced by arc accident in cable small compartment.
Technical specification of HXGN15-12L
No. | Item | Unit | Technical Data |
1 | Rated voltage | KV | 3,6,10 |
2 | Highest voltage | KV | 3.6,7.2,12 |
3 | Main bus-bar rated current | A | 630 |
4 | Rated short circuit breaking current | KA | 50(fuse) |
5 | Rated short time withstand current | KA | 20(3S) |
6 | Rated peak withstand current | KA | 50 |
7 | Rated transfer current | A | 1700 |
8 | Rated frequency | HZ | 50/60 |
9 | Degree of protection |
| IP3X |
10 | Bus system |
| Single bus, single bus with bypass |
11 | Operating method |
| Electromagnetism, spring storage energy manual |

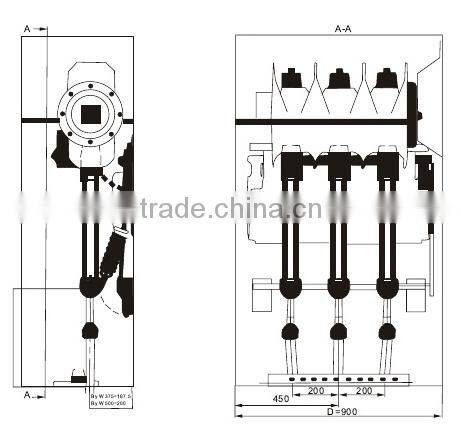

Structural drawing of HXGN15-12L
Outline dimension and weight of HXGN15-12L
Height |
| 1600/1850(mm) |
Width | Width of circuit breaker panel | 750(mm) |
Other width of panel | 375/500(mm) | |
Depth | 980(mm) |
Picture show
Our promises
Quality assurance:All the products will go through the detailed quality inspection during production.
Manufactuer's price:Factory direct sale,competitive price.
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
4. Good after-sale service offered, please get back if you got question.
5. Protection of your sales area, design drawing and all your private information.
