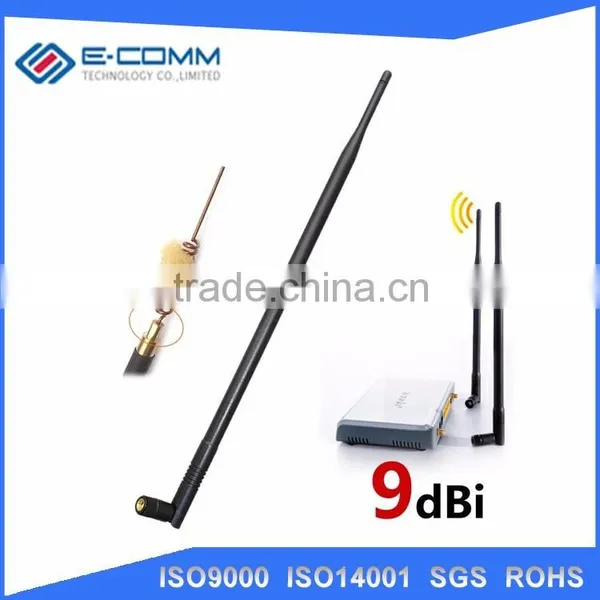

Hot selling!! 2.4GHz 10dB omni-directional antenna with SMA male connector for WIFI wireless router card
Direct buy from factory:
Specification:
Freq. : 2400 - 2500
S.W.R. : <= 2.0
Gain : 2dBi,3dBi,5dBi.7dBi,9dBi,10dBi,12dBi 16dBi etc.
Impedance:50Ω
Radiation Pattern : Directional
Connector : SMA / TNC / BNC / FME
Application:
IEEE 802.11 wlan system
wireless communication system
WIFI / WLAN / MIMO / Bluetooth system
RoHS Compliant
Low V.S.W.R. / Low Loss Design / High Gain
High Efficiency and Sensitivity
Low Loss RF Coaxial Connector Cable Feed
Matching Free Design
Water proof and weather proof design
| Electrical Specifications 2.4 WiFi Antenna | |
| Center Frequency (MHz) | 2400-2483MHZ |
| Gian (dBi) | 2dBi,3dBi,5dBi.7dBi,9dBi,10dBi,12dB,16dBi |
| Input Impendence (Ω) | 50 |
| V.S.W.R | ≤2.0 |
| Polarization Intensity | vertical |
| Max Input Power(w) | 50 |
| Mechanical Specifications | |
| Connector | SMA/TNC/BNC/TNC |
| Size-mm | Φ13.5×19.5 or customized |
| Radome Color | Black |
| Net weight (g) | 25 |
| Operating Temperature(°C) | -40°C~+60°C |
| Humidity-% | 5-95 |
| Applied in the 2.4 Ghz WLAN/WiFi system, strengthen the wireless network signal | |
Product Shows :
Product Details :
Ours main test device:
We can offer you all the accurately date about ours all product from ours lab.
Include all these following items.
And make sure all the proseccing reject ratio is 0.
<This is ours promise for all ours customers.>
FAQ :
1,Q:what is you brand ?
A: E-comm antennas
2,Q:how can i get the sample ?
A: if you need sample to test ,please pay for the shipping cost ,there we can free for two sample to you
3,Q: how much the shipping cost will be for sample ?
A :The depend on the weight and packing size you are
4, Q :how can i get the price list ?
A :please send the email and order information for us , so we can give the latest price for you
