Best quality for marine satellite tv antenna with magnet base
The antenna has three motors to control the elevation, the azimuth and the polarization. when the ship is parking or driving. There are two Gyro. in the PCB, they can read the ship drive locus,then adjust the antenna to direct the satellite. We can write four satellites into the controller. Meanwhile, customer can increase or change one satelliteby himself. GPS included.
Feature:
1.There is one 60cm dish in the cover.
2 It can quickly track satellite in 60 seconds at first time.
3.It can output MPEG2,MPEG4,H.264 Type video picture, compatible for DVB-S2.
4. It can receive satellite TV in the area over 47dBw.
5.It can work in ocean and river when the ship motion Roll /Pitch at±25°.
6.It include three motors to control antenna's azimuth,elevation and polarization.
7. Build in GPS.
9.Gyro. included, it can record the ship’s driving locus. Then let the antenna track satellite immediately.
Specification:
Item |
Content |
Item |
Content |
Antenna type |
60cm dish |
weight |
20 kg |
Mini. EIRP |
47dBw |
Workingtemperature |
-22℃~5 5℃ |
Frequency range |
10750 MHz~12750 MHz |
Accessory |
IDU,cable |
Antenna gain |
36 dBi |
Update port |
USB2.0 |
polarization |
RHCP/VHCP,V&H |
shell material |
plastic |
Track speed |
50°/s |
Polarization angle |
-45°~+45° |
Tracking type |
3-axis |
Waterproof |
IPX65 |
Elevation range |
10°~90° |
Install type |
bolt |
Azimuth range |
680° |
Package material |
paper |
GPS |
Build in |
Package weight |
25kg |
Power supply |
AC100-240V 0.5A |
Package dimension (L*W*H) |
82cm * 82cm * 100cm |
Diameter x height |
Φ70cm x 75 cm |
|
|

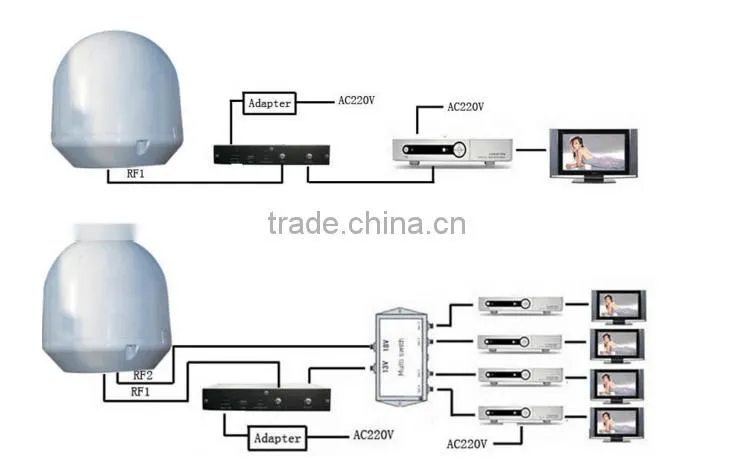

Connection figure:
Can use for anywhere around the world!
Ours workshops:
We have assembly work shop with 9 lines
Singinal Sample room with more than 20 peoples
Hard ware work shop with 5 lathe lines
Plastic injection workshop with 5lines
Wire cutting work shop with 4lines
Singile product tesiting room with the QA team
The most Professional Lab
The professional QA team
The most professional RD team.
The most sales team
