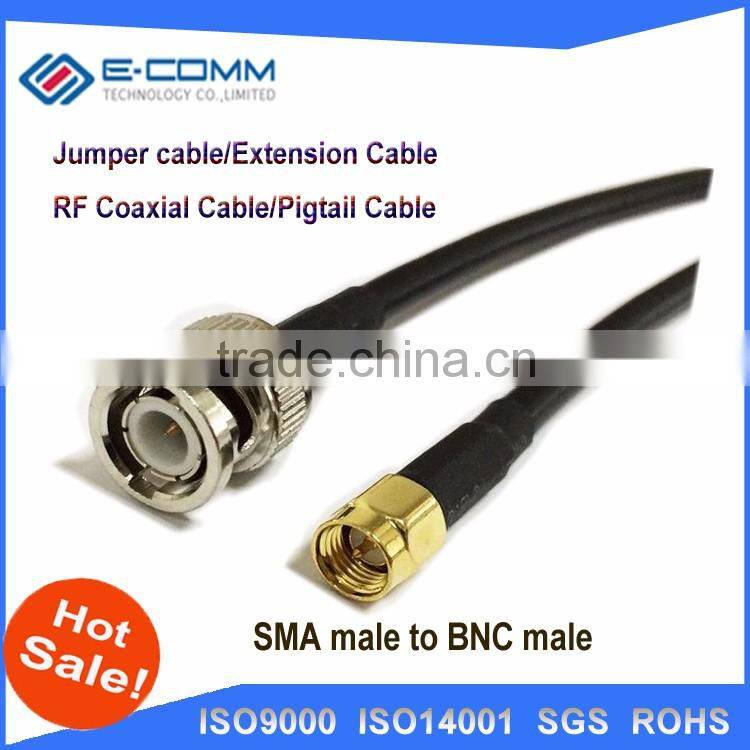

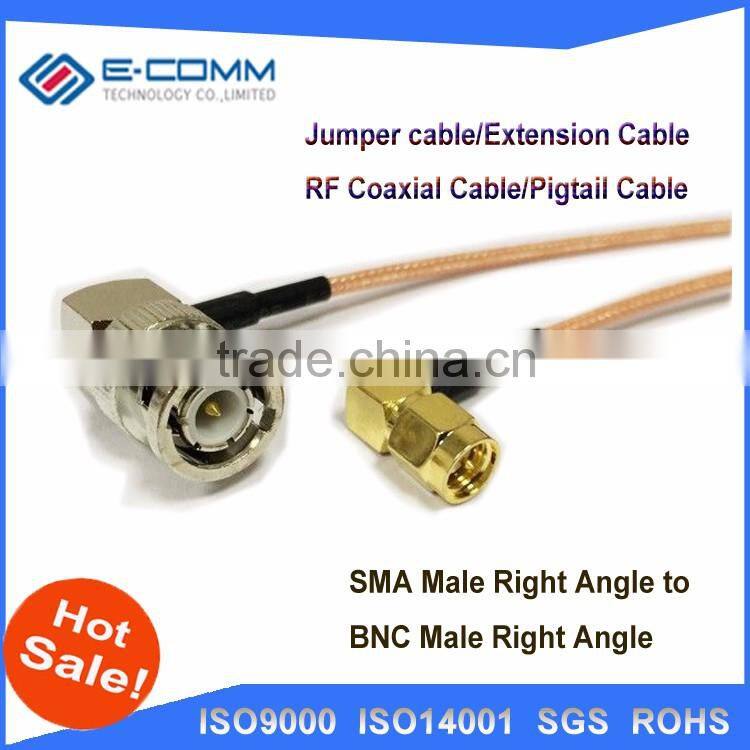

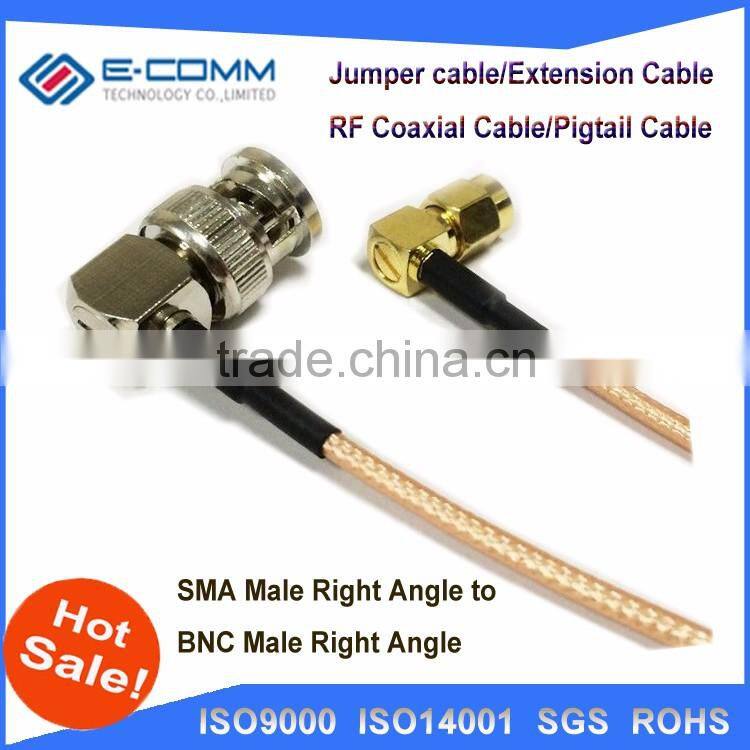

Hot sale!!RF Wireless patch leads cable SMA Male To BNC Male right angle adapter RG58 50CM
USD $4.00 - $4.00
/ Piece
100 Pieces(Min.Order)
- 10000000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | E-comm | Model Number: | Coaxial Cable |
| Number of Conductors: | 1 |
Product Description
Hot sale!!RF Wireless patch leads cable SMA Male To BNC Male right angle adapter RG58 50CM
Specification:
1, Cable length,any length is OK, but please contact us firstly for prices.
2, Connectors, crimp different connectors as you request
3, Cable type, we have RG178,RG178,RG58,RG142,RG8,RG316 etc cables for your chooice.
4, Large quantity, wholesale price can be offered.
| Electrical Performance | ||
| Nominal Impedance | 50Ω | |
| Freqency Range | DC to 1GHz | |
| Insertion Loss | ≤1.55dB | |
| VSWR | ≤1.2 | |
| Dielectric Withstanding Voltage | 100VAC(Cable Limited) | |
| Cable | RG316/RG78/RG142/RG174/RG58 | |
| Length of the Cable Assembly(with the Attached Connectors) | Customized | |
| Body | Brass | Brass |
| Insulator | Teflon | Teflon |
| Inner Contact | Beryllium bronze | Brass |
| other metal parts | Brass | Brass |
| Sealing ring | Silicon rubber | |
| Body | Gold Plated | Nickle Plated |
| Inner Contact | Gold Plated | Gold Plated |
| other metal parts | Gold Plated | Nickel Palted |
| Temperature Range | -40-+85℃ |

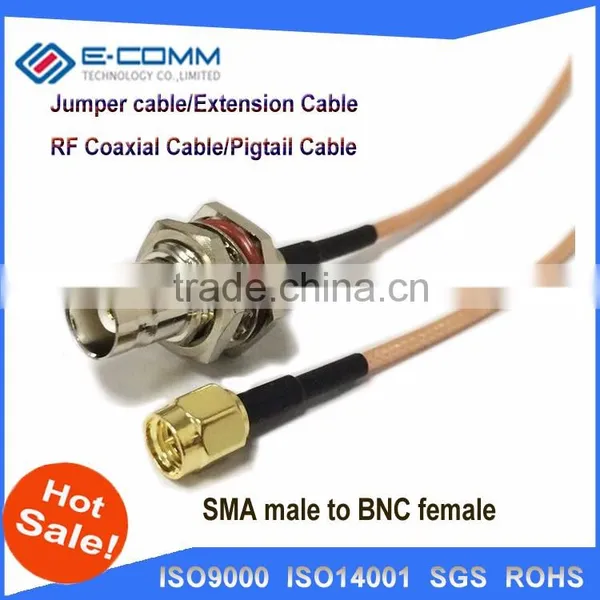

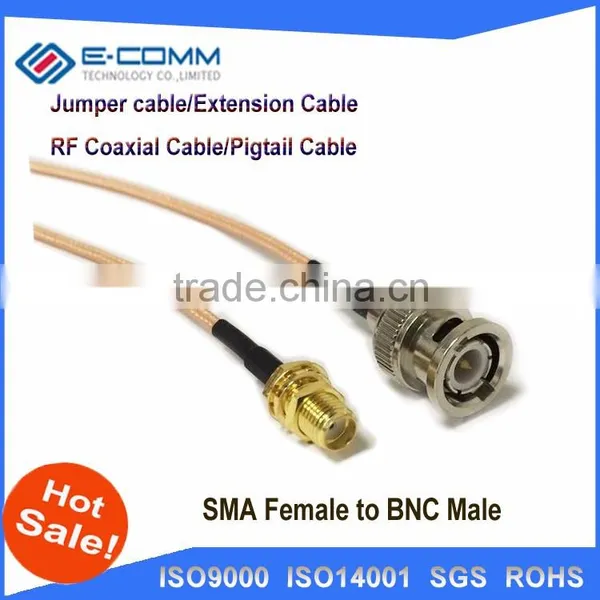

Product shows:
Ours service:
1) Factory sell directly.
2) Long-term, strong and steady supplying ability.
3) Delivery time:5-7 working days after payment confirmed.
4) Do as your requirements on package, brand or other designs.
5) Strong sales promotion policy.
6) Ex-factory price and competitive price.
Plz. click here back to ours home page!
