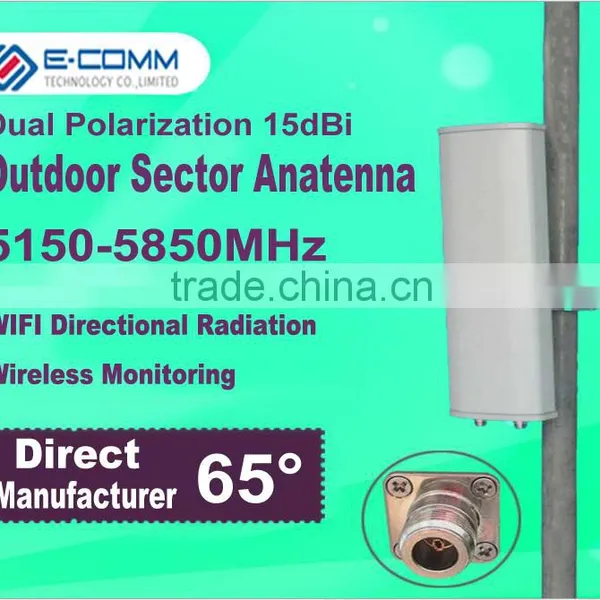

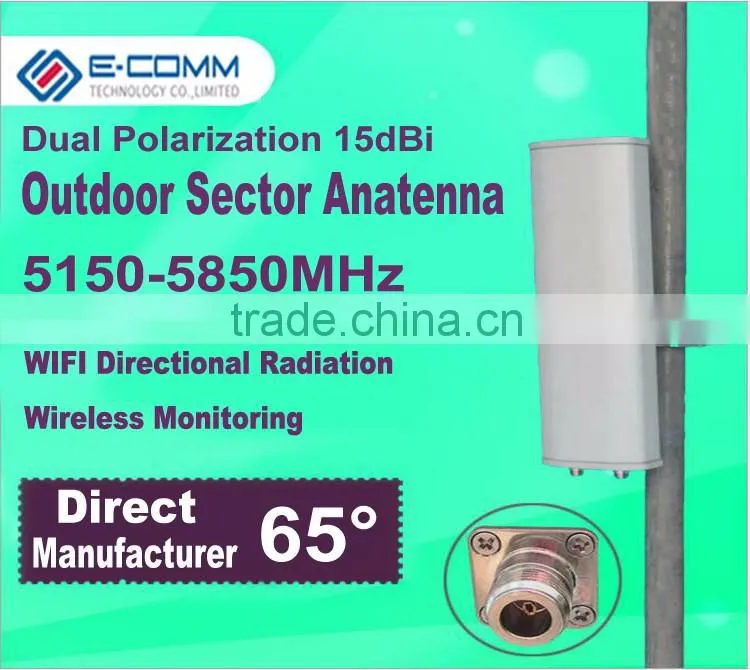

New arrival!! 5.8Ghz 15dBi outdoor directional sector dual polarization panel MIMO antenna for WLAN/WIFI transmitting and receiving
High gain outdoor Mimo antenna,65 degree coverage!
Direct Manufacturer!
More spec. for you choose!
Can be cusomized!
Electrical specifications | |
Frequency Range(MHz) |
5150-5850Mhz |
Polarization |
Vertical and Horizontal |
Impedance |
50 Ohm |
Gain (dBi) |
2*15 |
Radiation |
Omni |
Half power Beam Width |
H:65 V:14 |
Front to back ratio |
≥18 |
VSWR |
≤1.5 |
Maximum input power (W) |
200w |
Lighting Protection |
Direct Ground |
Mechanical specifications | |
Connector |
2N Female |
Dimensions (Height*Width*Depth) |
260mm*114mm*54mm |
Packing weight (kg) |
2.2kg |
Radiating Material |
UPVC |
Operating temperature (℃) |
-40~60 |
Mounting hardware (mm) |
Ø35-75mm |
Shipping:
Express delivery: UPS / DHL / TNT / FEDEX / EMS/Air freight /Shipping to meet customers' need.
