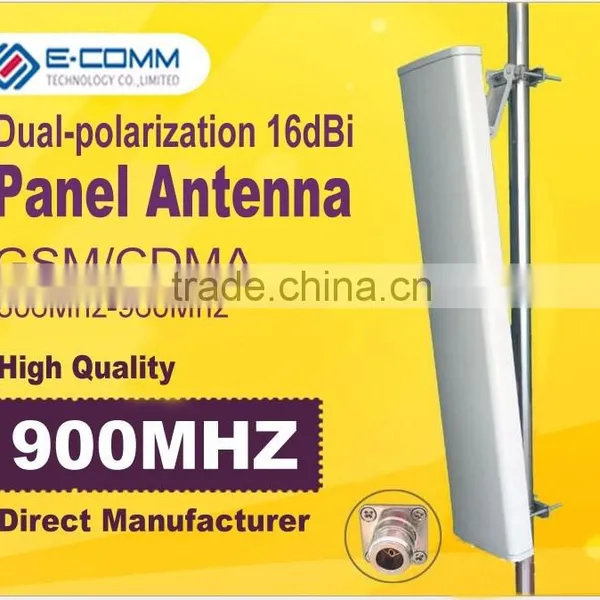

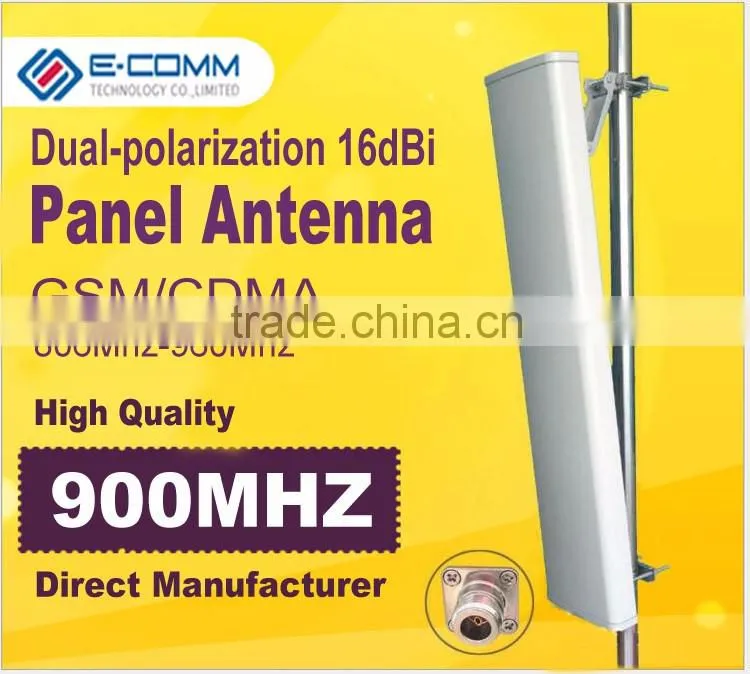

Outdoor 806-960MHz high gain16dBi GSM CDMA base station dual polarizationpanel panel antenna

Electrical specifications

Frequency Range(MHz)

806-960Mhz

Polarization

45 degree

Impedance

50 Ohm

Gain (dBi)

2*16dBi

Radiation

Directional

Half power Beam Width

H:65  V:30

Front to back ratio

≥18

VSWR

≤1.5

Maximum input power (W)

400w

Lighting Protection

Direct Ground

Mechanical specifications

Connector

2N Female

Dimensions (Height*Width*Depth)

1900mm*280mm*80mm

Packing weight (kg)

12.5kg

Radiating Material

UPVC

Operating temperature (℃)

-40~60

Mounting hardware (mm)

Ø35-90mm
