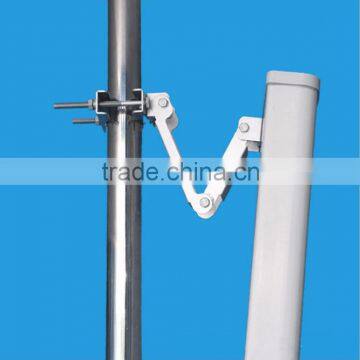

High gain 12dBi GSM/CMDA 900MHz panel sigle-polarization antenna for Wireless cellular phone base stations/repeater stations
Direct Manufacturer!
More spec. for you choose!
Can be cusomized!
Electrical specifications | |
Frequency Range(MHz) |
806-960Mhz |
Polarization |
Vertical |
Impedance |
50 Ohm |
Gain (dBi) |
12dBi |
Radiation |
Directional |
Half power Beam Width |
H:65 V:30 |
Front to back ratio |
≥18 |
VSWR |
≤1.5 |
Maximum input power (W) |
400w |
Lighting Protection |
Direct Ground |
Mechanical specifications | |
Connector |
N Female |
Dimensions (Height*Width*Depth) |
700mm*280mm*80mm |
Packing weight (kg) |
6kg |
Radiating Material |
UPVC |
Operating temperature (℃) |
-40~60 |
Mounting hardware (mm) |
Ø35-90mm |
Shipping:
Express delivery: UPS / DHL / TNT / FEDEX / EMS/Air freight /Shipping to meet customers' need.
