Help Center1575.42 MHz Gps Passive Ceramic Patch Antenna for Car Marine Positioning System
Related Products
-
1575.42 MHz Car Marine Passive GPS and GSM Quad Band Dual Mode Ceramic AntennaUS$ 1 - 4MOQ: 100 Pieces -
1575.42 MHz Car Marine Active Gps Antenna for Navigation SystemUS$ 1 - 4MOQ: 100 Pieces
-
1575.42 MHz Car Marine Gps Passive Patch AntennaUS$ 1 - 4MOQ: 100 Pieces
-
Internal GPS Passive and GSM Quad Band Dual Mode Ceramic Patch AntennaUS$ 1 - 4MOQ: 100 Pieces
-
1575.42 MHz GPS Active and GSM Quad Band Dual Mode Patch Navigation AntennaUS$ 1 - 4MOQ: 100 Pieces
Application
Global positioning system
Garmin / Marine positioning system
GPS / GSM car tracking system
Features
RoHS Compliant
Low V.S.W.R. / Low Loss Design / High Gain
High Efficiency and Sensitivity
Low Loss RF Coaxial Connector Cable Feed
Matching Free Design
Water proof and weather proof design
Specification
Type:25x25 Ceramic Antenna
Freq. : 1575M.42 Hz ± 5MHz
S.W.R. : <= 1.5
Gain : 4 dBi
Impedance: 50 Ω
Polarization: Right Hand Circular Polarization
Connector : SMA / FME / MMCX / BNC / FAKRA / TNC / MCX / SSMB / SMB / SMC
Cable : RG174 at 5m
Mounting: Magnetic / Adhesive / Screw Mounting
Amplifier / Filter
Gain: 28dB
Noise Figure:1.5dB
Out Band Rejection: 7dB @ ± 20MHz, 20 dB @ ± 50MHz , 30dB @ ± 100MHz
DC Voltage: 3 ~ 5V
DC Current: 5 ~ 10 mA

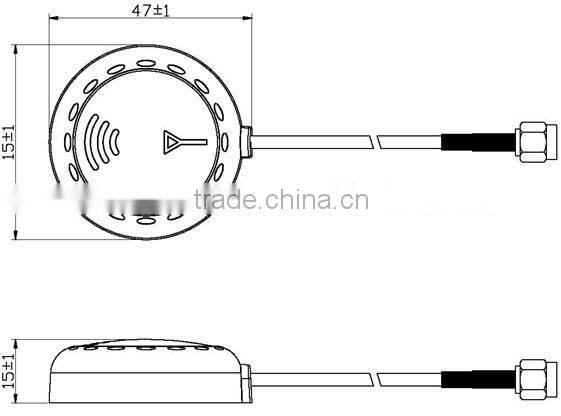

Size
5 pcs per PE bag, 300pcs per carton with size 42*30*27
