GPS GSM Antenna Dual Band Antenna Active Car Antenna

GPS GSM Antenna Dual Band Antenna Active Car Antenna

Application

Global positioning system

Garmin / Marine positioning system

GPS / GSM car tracking system

Features

RoHS Compliant

Low V.S.W.R. / Low Loss Design / High Gain

High Efficiency and Sensitivity

Low Loss RF Coaxial Connector Cable Feed

Matching Free Design

Water proof and weather proof design

Specification

Type:25x25 Ceramic Antenna

Freq. : 1575M.42 Hz & 824-960 &1710-2170 MHz

S.W.R. : <= 1.5

Gain : 20 dBi

Impedance: 50 Ω

Polarization: Right Hand Circular Polarization

Connector : SMA male

Cable : RG174 at 3m

Mounting: Magnetic / Adhesive / Screw Mounting

Amplifier / Filter

Gain: 20dB

Noise Figure:1.5dB

Out Band Rejection: 7dB @ ± 20MHz, 20 dB @ ± 50MHz ,  30dB @ ± 100MHz

DC Voltage: 3 ~ 5V

DC Current: 5 ~ 10 mA

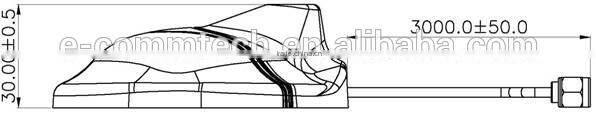

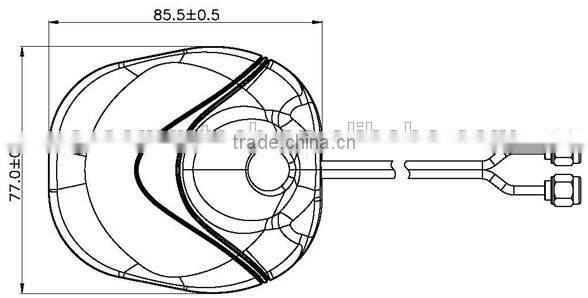

Size

1 pc per PE bag, 300pcs per carton with size 42*30*27
