Direct buy from factory gps gsm antenna adapter for laptop with FAKRA connector
Application
Global positioning system
Garmin / Marine positioning system
GPS / GSM car tracking system
Specification:
| 1. Antenna Specification | |
| Center Frequency | 1575.42MHz |
| V.S.W.R | ≤1.5 |
| Band Width | ±5 MHz |
| Impendence | 50Ω |
| 2.LNA Specification | |
| LNA Gain(Without cable) | ≥27dB |
| Noise Figure | ≤1.5dB |
| Interference rejection | 20dB(f0±140MHz) |
| V.S.W.R | <2.0 |
| DC Voltage | 3.0±0.3VDC;5.0±0.5VDC |
| DC current | ≤20mA |
| 3.Mechanical Specification | |
| Weight | <47gram |
| Size | 46×46×13mm |
| Cable | RG174 3meters (Or customized) |
| Connector | SMA(Customized other connectors) |
| Mounting | Magnetic base |
| Housing color | Black |
| shell encapsulating properties | Waterproof and Dustproof |
| 4.Environmental Specification | |
| Working Temp | -40℃~+85℃ |
| Storage Temp | -40℃~+90℃ |
| Vibration | Sine sweep 1g(0-p) 10~50~10Hz each axis |
| Humidity | 95% |
| Waterproof | IP 66 M(GB 4208-84) |
| MTBF=1×10-6/pc.hr | 40℃±5℃ DC=3.3v |

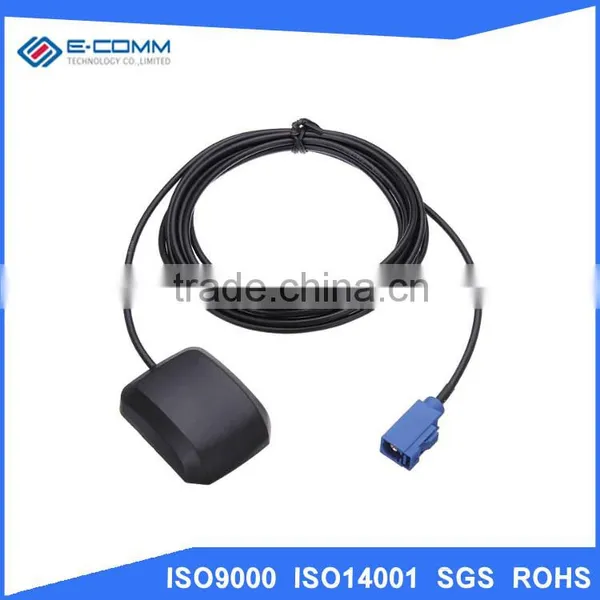

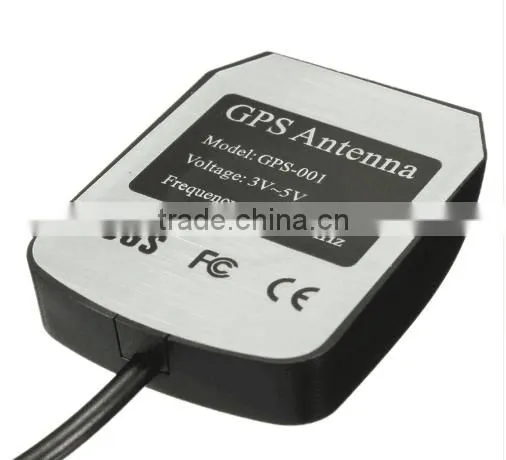

Product Shows:
Packing and Shipping:
1.Standard packing : 1pcs/polybag for inner packing ,Carton for outer packing or as customers' requirements.
2.Express delivery: UPS / DHL / TNT / FEDEX / EMS/Air freight /Shipping to meet customers' need.
Ours workshops:
We have assembly work shop with 9 lines
Singinal Sample room with more than 20 peoples
Hard ware work shop with 5 lathe lines
Plastic injection workshop with 5lines
Wire cutting work shop with 4lines
Singile product tesiting room with the QA team
The most Professional Lab
The professional QA team
The most professional RD team.
The most sales team
