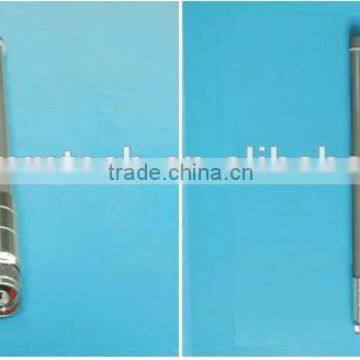

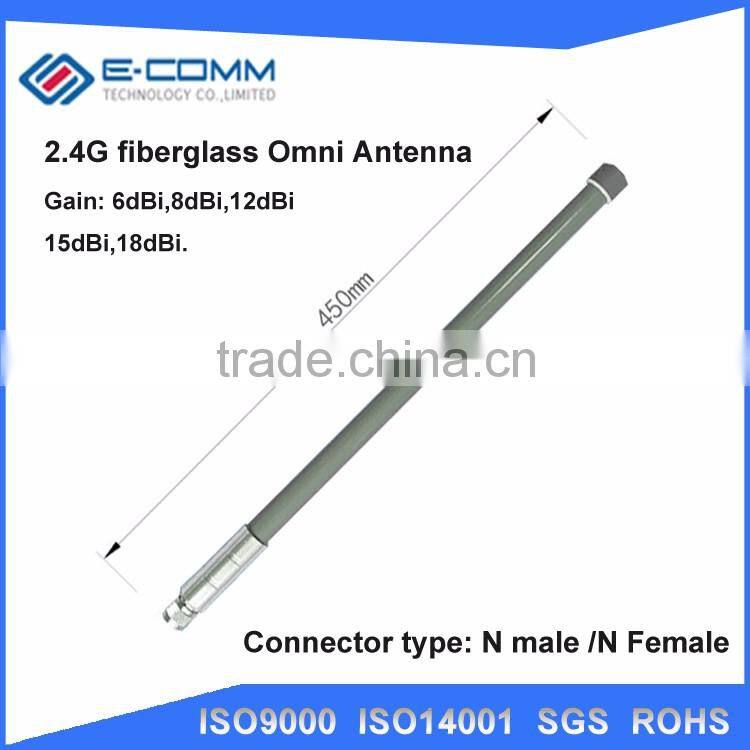

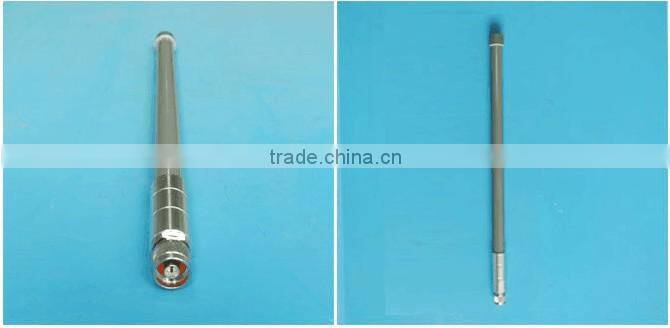

8dBi 2.4ghz fiberglass outdoor Omni-directional antenna for wireless supervising system
High gain fiberglass Omni antenna,360 degree coverage!
Direct Manufacturer!
More spec. for you choose!
Can be cusomized!
Electrical specifications | |
Frequency Range(MHz) |
2.4G |
Polarization |
Vertical |
Impedance |
50 Ohm |
Gain (dBi) |
8db |
Radiation |
Omni |
Horizontal Beam Width |
360º |
VSWR |
≤1.5 |
Maximum input power (W) |
50 |
Lighting Protection |
Direct Ground |
Mechanical specifications | |
Connector |
N MALE/N FEMALE |
Connector position |
Bottom |
Packing weight (kg) |
301G |
Radiating Material |
Cu |
Radome Material |
Fiberglass |
Operating temperature (℃) |
-50~70 |
Mounting hardware (mm) |
Ø25-40mm |
Shipping:
2.Express delivery: UPS / DHL / TNT / FEDEX / EMS/Air freight /Shipping to meet customers' need.
