500-1000ml Shampoo Dispensing Peristaltic Pump

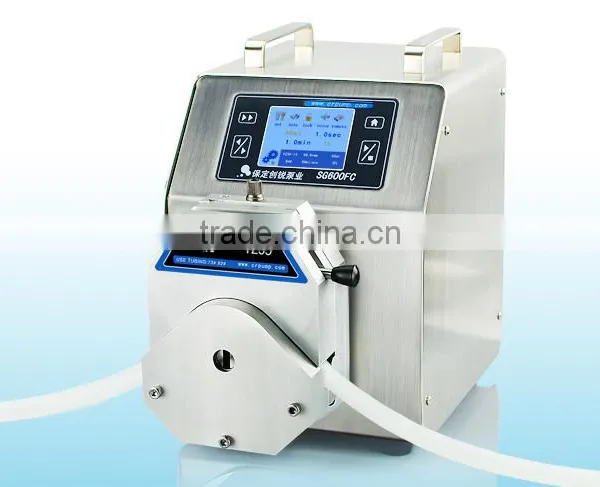

SG600FC has touch-sensitive color LCD screen to display the Run and parameter setting menu, filling parameters and flow’s display is simple and intuitive, easy operation. It also has flow calibration function, when the filling volume deviation through this calibration, in order to meet the requirements of the users of high-precision filling. With a variety of control methods, with the communication interface to provide users with communication protocol, users can request custom PC software for remote control.
The operating interface
Technical Parameters
Speed: 1.0 to 600.0 rpm, reversible
Speed resolution::0.1rpm(0.1~100rpm)
1rpm(100~600rpm)
- Speed control: Rotary coded switch coupled with membrane keypad
Display:: touch-sensitive color LCD screen
- Copy number: 1 to 9999
- Dispense volume: 0.1 mL to 99.9 L
- Pause time: 1 to 9999 s
- Back suction angle: 0 to 720°, 15° increments
- External control: Start/stop and cw/ccw control
0 to 5 V, 0 to 10 V, and 4 to 20 mA speed control
Communication interface::RS485
External Control: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, and 4to 20 mA speed control
Power Supply: AC 220V±10%,50Hz/60Hz(optional)
AC 110V±10%,50Hz/60Hz(optional)
Power Consumption:: <50W
Operating condition: Temperature 0 to 40 °C, Relative humidity < 80%
Pump Head & Tubing
Typical Application
1.Oil material adding in cosmetic production
2.Vitamin adding in milk
3.Material adding in plating
Function &Features

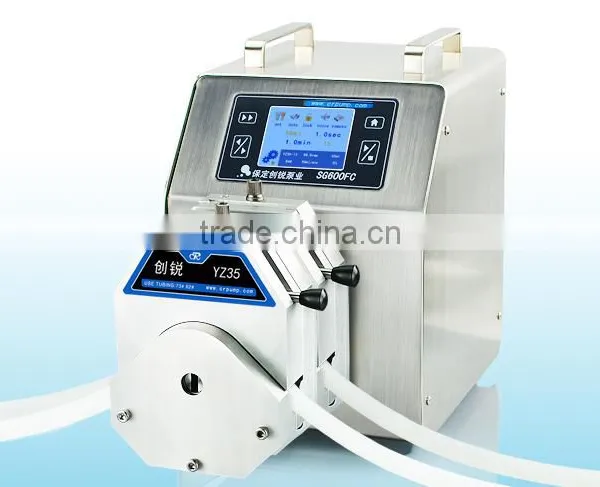

1. Applicable pump heads: YZ35 (Al), YZ35-13 (PPS)
2. Stainless steel housing of the drive is available
3. Suitable for industrial applications
4. Longer Footswitch or other external control device optional
5. Equipped with Changrui Dispensing Controller for filling function
Before to ensure the pump type , the following three question should be answered:
1.Your bottle volume ? ml
2.Which liquid you will transfer ? is thick ?
3.How many bottles you want to fill in one minute ?
You can mails your answers including the above infos , then we will select the most proper pump to you !
Packing
Express
Our peristaltic pump with 1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem..
