Product Introduction
/watch?v=LaGH7F2_hGc&feature=youtu.be operation link for glycerin

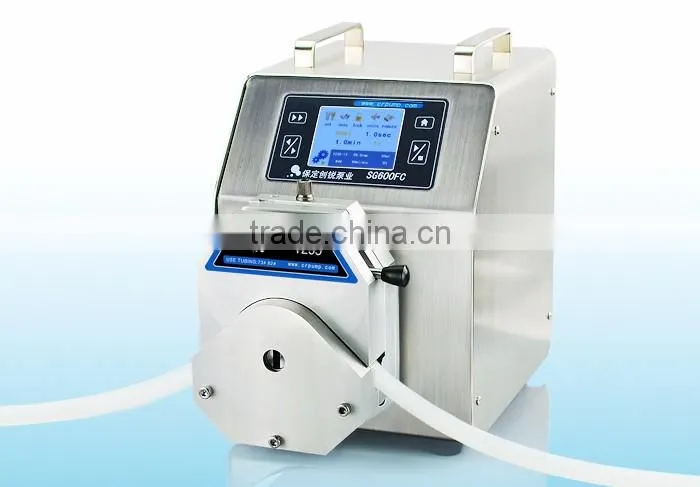

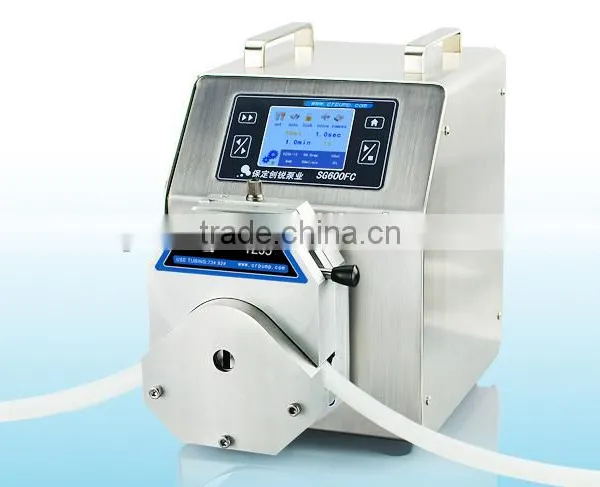

SG600FC Vegetable glycerin & e liquid dispensing peristaltic filling pump has touch-sensitive color LCD screen to display the Run and parameter setting menu, filling parameters and flow’s display is simple and intuitive, easy operation. It also has flow calibration function, when the filling volume deviation through this calibration, in order to meet the requirements of the users of high-precision filling. With a variety of control methods, with the communication interface to provide users with communication protocol, users can request custom PC software for remote control.
Typical application
1.Oil material adding in cosmetic production
2.Vitamin adding in milk
3.Material adding in plating
/watch?v=LaGH7F2_hGc&feature=youtu.be operation link for glycerin
Functions and features
1. Applicable pump heads: YZ35 (Al), YZ35-13 (PPS)
2. Stainless steel housing of the drive is available
3. Suitable for industrial applications
4. Longer Footswitch or other external control device optional
5. Equipped with Changrui Dispensing Controller for filling function
Speed: 1.0 to 600.0 rpm, reversible
Speed resolution::0.1rpm(0.1~100rpm)
1rpm(100~600rpm)
- Speed control: Rotary coded switch coupled with membrane keypad
Display:: touch-sensitive color LCD screen
- Copy number: 1 to 9999
- Dispense volume: 0.1 mL to 99.9 L
- Pause time: 1 to 9999 s
- Back suction angle: 0 to 720°, 15° increments
- External control: Start/stop and cw/ccw control
0 to 5 V, 0 to 10 V, and 4 to 20 mA speed control
Communication interface::RS485
External Control: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, and 4to 20 mA speed control
Power Supply: AC 220V±10%,50Hz/60Hz(optional)
AC 110V±10%,50Hz/60Hz(optional)
Power Consumption:: <50W
Operating condition: Temperature 0 to 40 °C, Relative humidity < 80%
Ordering guide
For water
Drive |
Pump heads |
Tubing |
Flow rates (mL/min) |
SG600FC |
YZ35-13 |
73# 82# |
10~12000 |

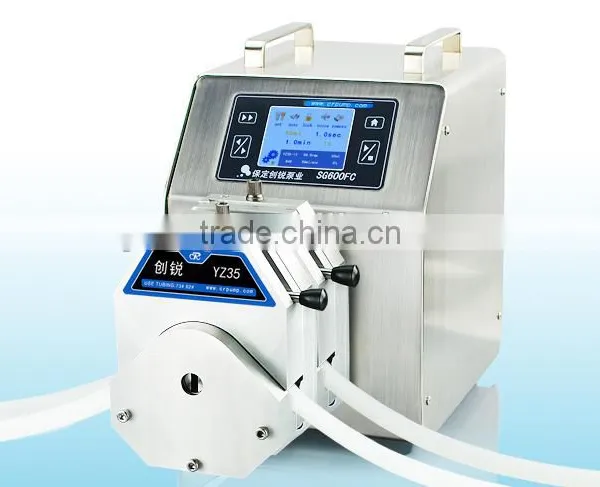

YZ35-13*2 |
73# 82# |
10~24000 per channel |
For glycerin
Drive |
Pump heads |
Tubing |
Flow rates (mL/min) |
SG600FC |
YZ35-13 |
73# 82# |
10~1500 |
YZ35-13*2 |
73# 82# |
10~3000 per channel |
Dear All ,
Welcome to our website ,wish you have a nice day and will get the harvest from us .=))
To help you choose the suitable pump. can you help me to confirm some details as below :
1,what's the application of the pump ? bottle filling or constant transfer ?
2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?
3, for constant transfer ,what's flowrate you need? ml/min
4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?
Pls send these answers or most details to us, then we will help u to choose the best pump and tube .
Thanks for your time .
Ella Xu
whatsapp :+0086 15633705132 skype : ella-crpump QQ :507183200
our peristaltic pump with1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
To help u send the right tube and motor ,before purchase ,pls confirm the details as below:
1.What flowrate you need ? ml/min
2.What kind of liquid you will transfer ? does it corrosive ?
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
