Dia. 20~40 Stainless Steel Mini Cylinder
US$ 1 - 10
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Type:
Other, Cylinder, Mini cylinder
Place of Origin:
Zhejiang, China
Model Number:
air cylinder
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price Electric Air Control Valve Solenoid Valve 4V430C-15 4V400 SeriesUS$ 2 - 10MOQ: 10 Pieces -
Low Price Electric Air Control Solenoid Valve 3V310-10 NC 3V300 SeriesUS$ 2 - 10MOQ: 10 Pieces
-
Standard Air Cylinder SC,SU SeriesUS$ 3 - 10MOQ: 100 Pieces
-
Low Price Electric Valve Air Valve Control Valve Solenoid Valve 4V110-06 4V100 SeriesUS$ 2 - 10MOQ: 10 Pieces
-
Low Price Electric Air Control Solenoid Valve 4M210-8 Namur SeriesUS$ 2 - 10MOQ: 10 Pieces
Type
Other, Cylinder, Mini cylinder
Place of Origin
Zhejiang, China
Model Number
air cylinder
Brand Name
WEHOPE
Specifications
1.Many years experiences.2. High quality , favorable price .
3. Fast delivery , best service
Product Description
STAINLESS STEEL MINIATURE CYLINDER( 20~ 40)

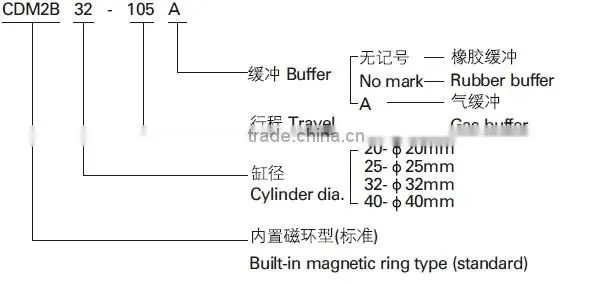

Model Selection
TECHNICAL DATA
| Dia(mm) | 20 | 25 | 32 | 40 | ||
| Fluid | Air | |||||
| Action | Double-action | |||||
| Endurable pressure | 1.05Mpa(10.5kgf/cm ) | |||||
| Max applicable pressure | 1.0Mpa(10.2kgf/cm ) | |||||
| Min applicable pressure | 0.05Mpa(0.5kgf/cm ) | |||||
| Environment and fluid temperature | -10~+70 | |||||
| Piston speed | 50~750mm/s | |||||
| Buffer | Rubber buffer(standard)for both ends | |||||
| Travel tolerance | +1 | |||||
| Iubrication | No need | |||||
| Pipe size | 1/8 | 1/8 | 1/8 | 1/4 | ||
Travel/Magnetic Switch Selection
| Inner diameter (mm) | 20 | 25 | 32 | 40 | ||
| Standard travel |
25,40,50,75,80,100,125, 150,160,175,200,250,300 |
|||||
|
Endless belt installation type |
Magnetic switch |
D-C73L D-C76L D-C80L D-H7A1L D-H7BL |
||||
|
Switch invariant code |
BM2-020 | BM2-025 | BM2-032 | BM2-040 | ||
| The longest travel (mm) | 1000 | |||||
Configuration diagram/parts talbe
Parts Stable
| No. | Name | Material |
| 1 | Pole cover | Aluminum alloy |
| 2A | Head | Aluminum alloy |
| 2B | Head | Aluminum alloy |
| 2C | Head | Aluminum alloy |
| 3 | Pipe | Stainless steel |
| 4 | Piston | Aluminum alloy |
| 5 | Piston pole | Carbon steel |
| 6 | Guide sleeve | Bearing alloy |
| 7 | Retaining ring of sealing part | Rolling steel |
| 8 | Locating ring | Carbon steel |
| 9 | Buffer pad | Polyurethane rubber |
| 10 | Buffer pad | |
| 11 | Locating ring | Carbon steel |
| 12 | U guide sleeve | Bearing alloy |
| 13 | Sealing ring of pistor | NBR |
| 14 | Washer of piston | NBR |
| 15 | Anti-abrasion ring | Resin |
Spare Part/Sealing Ring
| No. | Name | Material | Cylinder dia(mm) | |||
| 20 | 25 | 32 | 40 | |||
| 16 |
Sealing ring of piston pole |
NBR | PDU-8Z | PDU-10Z | PDU-12Z | PDU-14Z |
