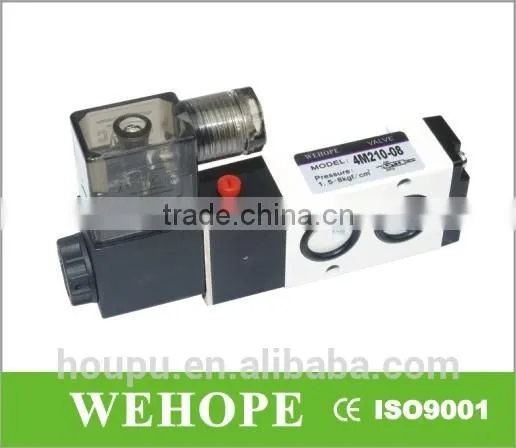

Low Price Electric Air Control Solenoid Valve 4M210-8 Namur Series
US$ 2 - 10
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Mini Pneumatic CylinderUS$ 1 - 10MOQ: 100 Pieces -
Low Price Pneumatic Quick Exhaust Valve QE-04 QE SeriesUS$ 2 - 10MOQ: 10 Pieces
-
Low Price Mechanical Control Valve MV-08 MV SeriesUS$ 2 - 10MOQ: 10 Pieces
-
PC Straight Series Brass Pneumatic FittingUS$ 1 - 10MOQ: 100 Pieces
-
Air Quick Coupler PCF Femail Straight SeriesUS$ 1 - 10MOQ: 100 Pieces
Standard or Nonstandard
Standard
Structure
Control
Pressure
Low Pressure
Power
Pneumatic
Material
Other, Alloy, Aluminum alloy
Temperature of Media
Normal Temperature
Media
Other, Air
Place of Origin
Zhejiang, China
Model Number
Electric air control solenoid valve 4M210-8 Namur series
Brand Name
WEHOPE
Specifications
1.Many years experiences.2.High quality , favorable price.
3.Fast delivery , best service.
Electric air control solenoid valve
Symbol
Specification
| Type | 4M110-M5 | 4M120-M5 | 4M110-06 | 4M120-06 | 4M210-06 | 4M220-06 | 4M210-08 | 4M220-08 | 4M310-08 | 4M320-08 | 4M310-10 | 4M320-10 | ||
| Working medium | Air (filtered by 40 m filtering net) | |||||||||||||
| Action type | Inner pilot type | |||||||||||||
| Position no. | Five-way two-position | |||||||||||||
| Effective sectional area | 5.5mm²(Cv=0.31) | 12mm²(Cv=0.67) | 14mm²(Cv=0.78) | 16mm²(Cv=0 .89) | 25mm²(Cv=1.4) | 30mm²(Cv =1.68) | ||||||||
| Pipe dia. | Air inlet=Exhaust=M5 | Air inlet=Exhaust=PT1/8 | Air inlet=Exhaust=PT1/8 | Air inlet=PT1/4 Exhaust=PT1/8 | Air inlet=Exhaust=PT1/4 | Air inlet=PT3/8 Exhaust=PT1/4 | ||||||||
| Lubricating | Not need | |||||||||||||
| Applicable pressure | 0.15~0.8MPa(21~114Psi) | |||||||||||||
| Max withstand pressure | 1.2MPa(170Psi) | |||||||||||||
| Working temperature | -5~60 (23~140 F) | |||||||||||||
| Voltage range | -15%~+10% | |||||||||||||
| Power consumption | AC: 2.5VA DC: 2.5W | AC: 3.5VA DC: 2.5W | ||||||||||||
| Thermal endurance class | B | |||||||||||||
| Protection degree | IP65(DIN40050) | |||||||||||||
| Type of electrification | Terminal type and wire outlet type | |||||||||||||
| Max action frequency* | 4 | |||||||||||||
| Excitation time | 0.05 | |||||||||||||
| Weight | 120g | 175g | 120g | 175g | 220g | 320g | 220g | 320g | 310g | 400g | 310g | 400g | ||
*Note The max action frequency is in the no-load state.
Outline Dimension
Why us
• 1. We Yueqing Houpu has best supply and favorable price.
• 2.Better cost control: Relatively cheap labor and strict quality control.
• 3.100% pre-tested; 1:1 replacement.
• 4.Various kinds of specifications can be customized.
• 5.Perfect after sale service.
If you have any interest .please kindly feel free to contact me.Thanks~
