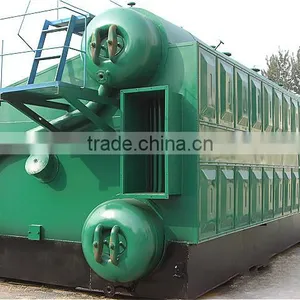

Help Center2015 Best Selling China Supplier Wood Chip Boiler
Related Products
-
Biomass Fire Wood BoilerUS$ 2,000 - 50,000MOQ: 1 Set -
China Small Wood Pellet Steam GeneratorUS$ 2,000 - 50,000MOQ: 1 Set
-
Small Wood Chip BoilerUS$ 2,000 - 30,000MOQ: 1 Set
-
Wood Fired Steam BoilerUS$ 2,000 - 30,000MOQ: 1 Set
-
Industrial Usage Water Tube Wood Pellets BoilerUS$ 3000.00 - 3000.00MOQ: 1 Set
1.The boiler was designed horizontal cyclone reburning chamber of an original creation in the home market, featuring the obvious effect of increasing combustion efficiency .
2. The boiler thermal efficiency is high, every kind of which shall exceed 5 % of national standard.
3. The boiler features the following advantages: compact structure, safe operation, and long boiler life.
4. The air register shall employ cone seal structure of machining equipment, and the uniform blast duct structure shall be applied to air distribute device of wind chamber, which is environmental patent technology of state.
5. Many kinds of fuel shall be applicable, including II and III coal.
6. Because of compact structure, small floor area, and monolayer arrangement of the boiler room ,Reduce boiler room and installation costs.

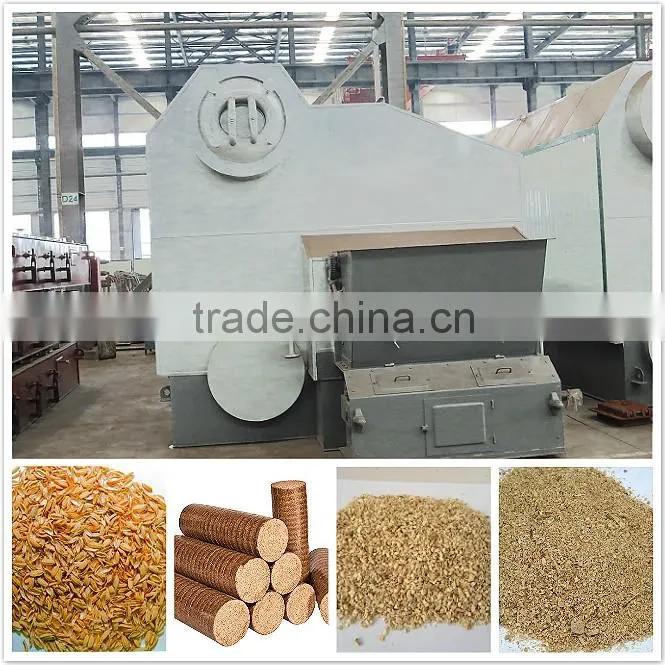

biomass solid fuels is the use of new technologies and specialized equipment will crop straw, wood chips, sawdust, peanut shell, corn cob, rice straw, rice husk, straw bran, tree branches and leaves, hay and other modern compression molding carbon clean fuel, biomass fuel sources extensively, is an inexhaustible renewable energy, biomass burn rate of 96%, 4% of the remaining ash can be recycled , achieved a straw - Fuel - fertilizer in circulation. Use of biomass fuels, clean and environmentally friendly, renewable energy, environmental protection consistent with national energy policy received strong advocate and promote.
Technical specification:
Model/Parameter/Item |
SZL4.2- 1.0-95/70-AII |
SZL5.6- 1.0-95/70-AII |
SZL7.0- 1.0-95/70-AII |
SZL10.5- 1.25-150/90-AII |
SZL14- 1.25-150/90-AII |
||
Rated capacity |
MW |
4.2 |
5.6 |
7 |
10.5 |
14 |
|
Operation pressure |
Mpa |
1 |
1 |
1 |
1.25 |
1.25 |
|
Hot water temp. |
C |
95 |
95 |
115 |
150 |
150 |
|
Water-inlet temperature |
C |
70 |
70 |
70 |
90 |
90 |
|
Heating efficiency |
% |
78 |
79.6 |
78.7 |
80.8 |
81.7 |
|
Area of stoker |
m2 |
7.15 |
8.6 |
11.72 |
16.4 |
18.9 |
|
Heating area |
m2 |
36000 |
48000 |
60000 |
90000 |
120000 |
|
|
Water inlet & outlet Diameter |
mm |
PN1.6 DN150 |
PN1.6 DN200 |
PN1.6 DN150 |
PN1.6 DN200 |
PN1.6 DN200 |
|
Fuel |
Coal available |
|
II type bitumite,lcv:17700-21000KJ/kg |
||||
Consumption |
kg/h |
900 |
1280 |
1450 |
2460 |
3240 |
|
|
Dimension of biggest parts for shipment (LxWxH) |
m |
7.62*3.27*3.46 |
8.82*3.34*3.46 |
7.78*3.38*3.53 8*3.5*2.7 |
9.05*3.35*3.69 |
10.59*3.35*3.69 |
|
|
Weight of biggest parts for shipment |
t |
31 |
45 |
28/27 |
24 |
27 |
|

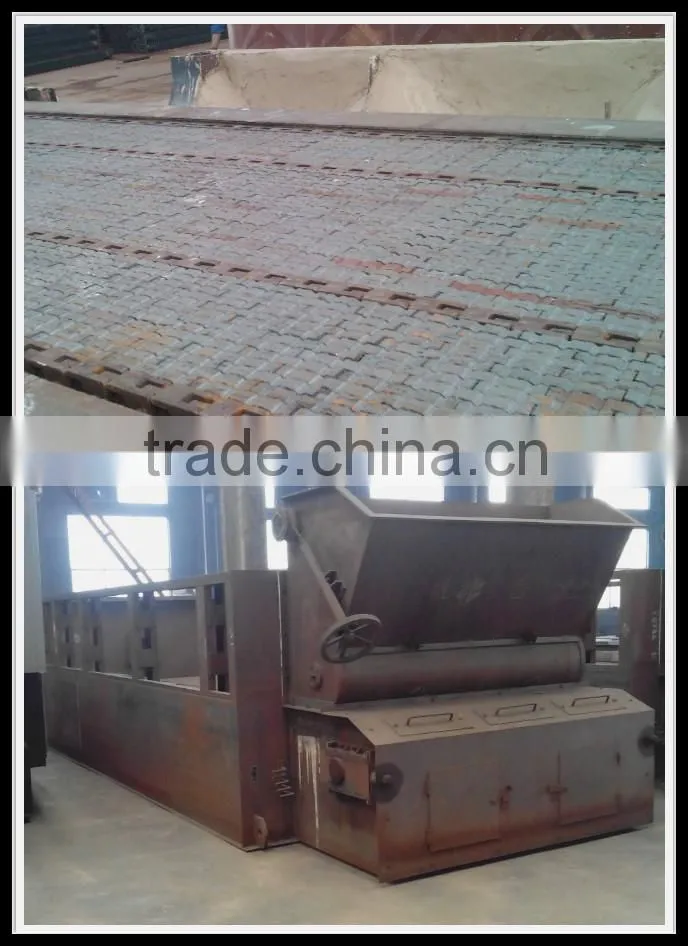

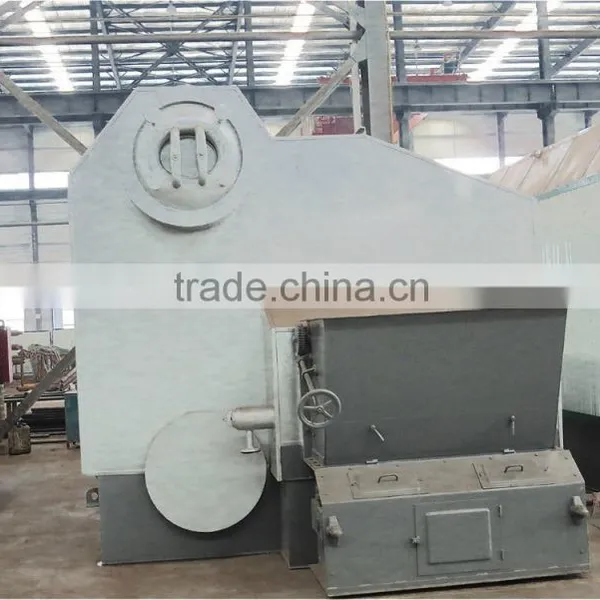

chain grate:
------We can help design and manufacture boilers according to customers’ special requirements.
------Engineers are available service overseas
------Ferroli boiler body warranty 3 years
------Engineers 24hours online
How to install a boiler?
Tonghai Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
How many years is the boiler’s life?
The boiler is designed for 20years life.
How to choose a boiler model?
Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, Tonghai Boiler will suggest a suitable model based on your usage
How is the warranty term?
If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
