Small Wood Chip Boiler

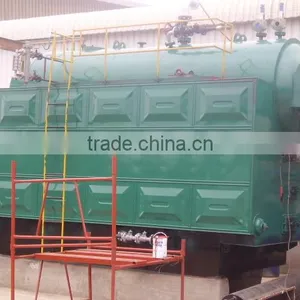

Small Wood Chip Boiler thumbnail-1
Small Wood Chip Boiler photo-1
US$ 2,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Contact Supplier Request Quote Chat Now
Qingdao Tonghai Industrial Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Natural Circulation
Usage Industrial
Structure Water Tube
Pressure Low Pressure
Style Horizontal
Fuel Other, wood, sawdust, rice husk and other biomass fuel etc
Place of Origin Shandong, China
Brand Name TongHai
Model Number DZL
Output Steam
Dimension(L*W*H) 7330 x 3350 x 3550mm
Weight 35T
Certification ASME, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas

Company Information

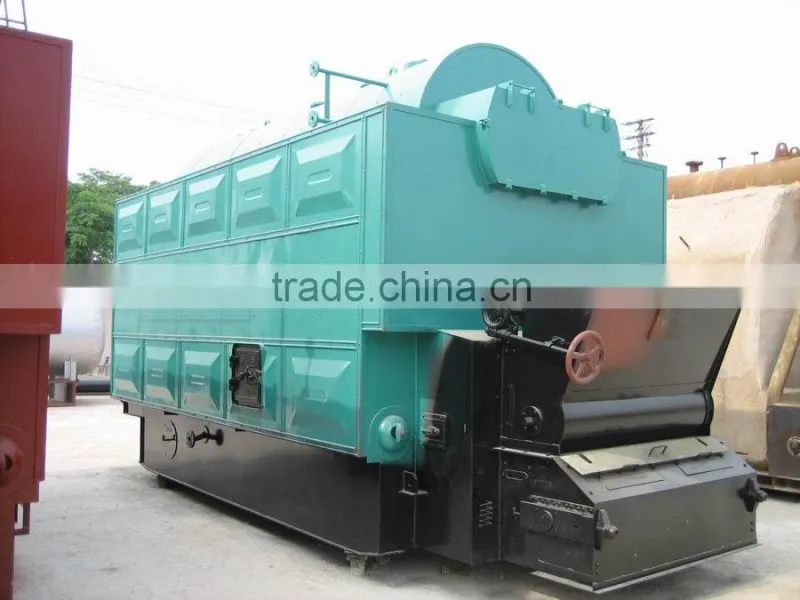

Small wood chip boiler

Tong Hai Power the pioneer industrial boilers of China market, and we have various boilers for worldwide customers.





DZL series higher efficiency biomass boiler, biomass wood boiler, wood chips boiler, straw fired boiler , rice husk boiler , biomass pellet boiler, peanut biomass boiler
Small wood chip boiler

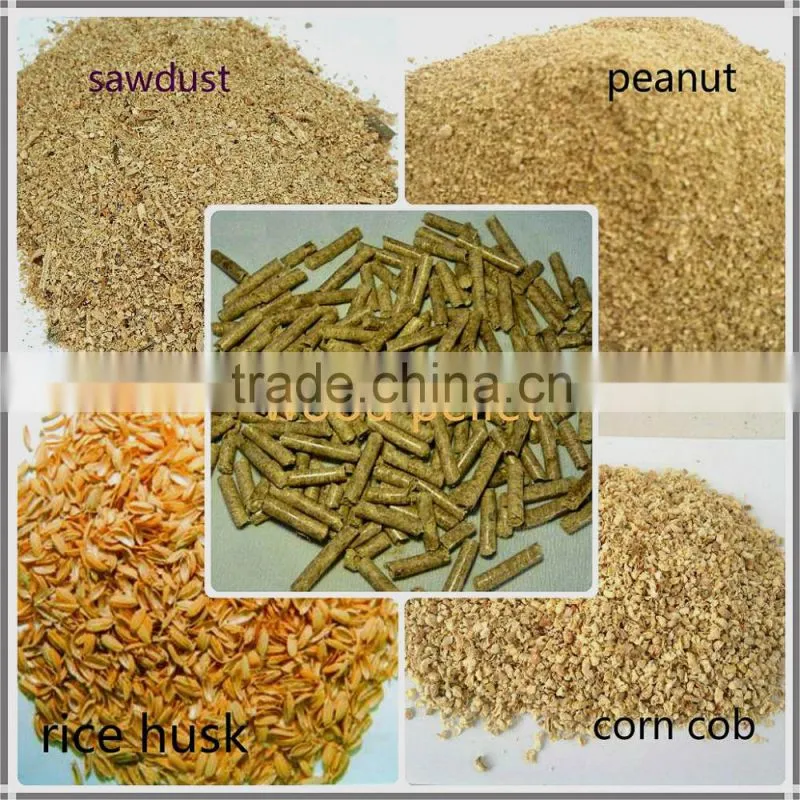

* forming solid biomass fuels (referred to as biomass fuels, commonly known as: straw coal), is the use of new technologies and specialized equipment will crop straw, wood chips, sawdust, peanut shell, corn cob, rice straw, rice husk, straw bran, tree branches and leaves, hay and other modern compression molding carbon clean fuel, biomass fuel sources extensively, is an inexhaustible renewable energy, biomass burn rate of 96%, 4% of the remaining ash can be recycled K, achieved a straw - Fuel - fertilizer in circulation. Use of biomass fuels, clean and environmentally friendly, renewable energy, environmental protection consistent with national energy policy received strong advocate and promote. Biomass fuels as coal, oil, natural gas, the fourth largest energy, it will become the worlds largest energy the most important. Biomass fuels containing sulfur are very low, there is no problem desulfurization, heat value in 3600 ~ 5100 kcal / kg, not only can replace the coal and other fuels, and its low cost, greatly reduced the cost of boiler operation, and fuel oil, gas, compared with electric boiler, the cost decreased by 60%, 40%, 70%.


The unique features of automatic industrial biomass boiler 1. It adopts automatic operation chain grate, water tube structure which ensures boiler safe operation and extend service life.

2. Boiler equips Inverter control, fuel combustion can achieve automatic adjustment to save energy,

also decrease the dust emission & SO2 emission & NOx emission.

3. Boiler equips Energy Saver which can improve boiler thermal efficiency more than

2~3% & decrease the temperature of exhaust smoke.

4. It’s suitable for all kinds of biomass (biomasse)

Small wood chip boiler



II. Why are you choice our biomass boiler?

1. Lower dust emission & SO2 emission & NOx emission,

dust emission concentration < 45mg/m³

SO2 & NOx emission concentration < 30mg/m³

2. Boiler equips Inverter control, fuel combustion can achieve automatic adjustment.

3. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.

4. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety

indication ...

We also freely supply you a set of inner parts of Electric controller for standby.

5. Boiler with anti-corrosion & anti-rust & beautiful appearance painting.

6. Comprehensive after-sales service.

We can design layout drawings of boiler system according to your actual requirement.

Also can dispatch engineer to guide installation & commissioning.

 Technical specifications:
ItemType DZL1-1.0-M DZL1-1.25-M DZL2-1.0-M DZL2-1.25-M DZL3-0.7-M DZL3-1.25-M DZL4-1.25-M DZL6-1.25-M DZL8-1.25-M DZL10-1.25-M
Rated capacity t/h 1 2 3 4 6 8 10
Rated steam pressure Mpa 1.0/1.25 1.0/1.25 0.7/1.25 1.25 1.25 1.25 1.25
Rated steam temperature°C 184/194 184/194 170/194 194 194 194 194
Feed water temperature°C 20 20 20 20 20 60 105
Heated area M² radiation/convection 4.55/20.12 7.8/41.5 9.5/50.6 11.9/79 17.4/108.1 25.7/172.1 25/237.6

Fuel consumption kg/h 179 358 531 707 1036 1382 1648
effective area of boiler M² 1.8 3.04 3.34 5.14 8.12 10.9 12
largest size of boiler transportation mm length 4876 5290 5360 6258 6630 7486 7600
width 1800 2240 2240 2700 3150 3200 3200
height 2870 3400 3500 3814 4186 3650 4000
weight of largest parts of boiler ton 13.5/14.2 20.8/21.9 22.1/23 29 32 35 47





  3 Pass Way improve efficiencySmall wood chip boiler

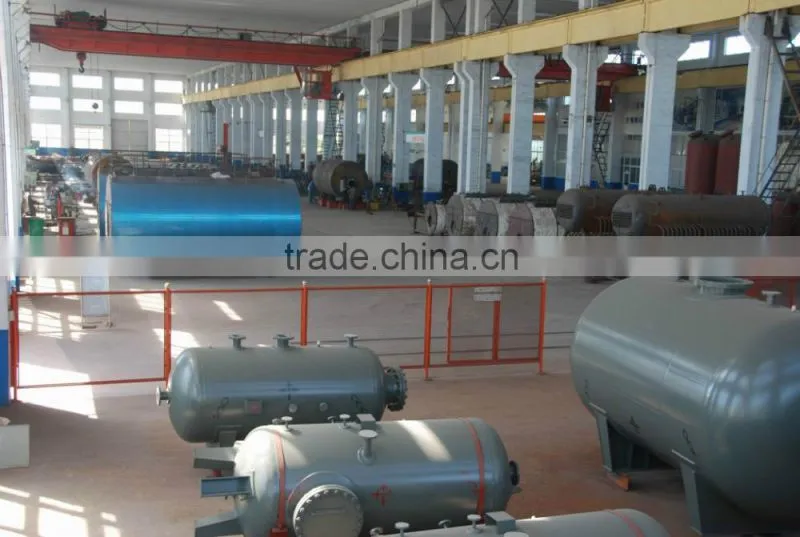

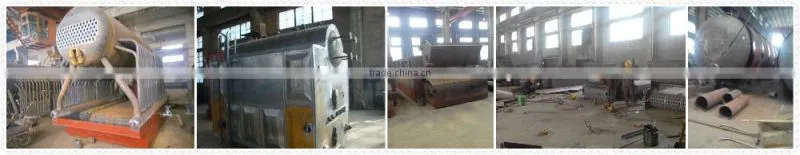

Workshop

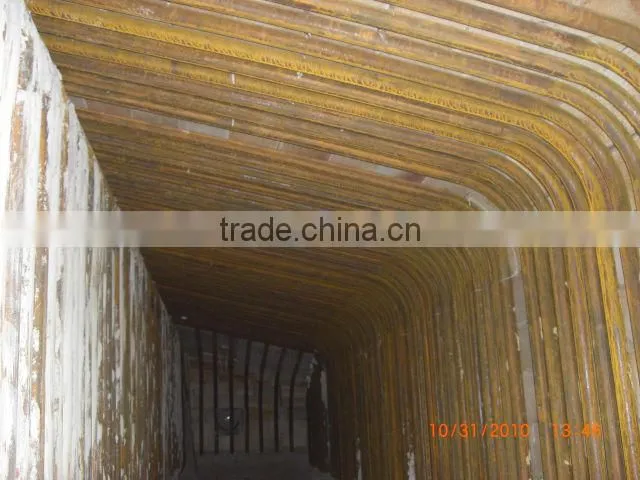

 Biomass fuel combustion drum



Small wood chip boiler








Packaging & Shipping

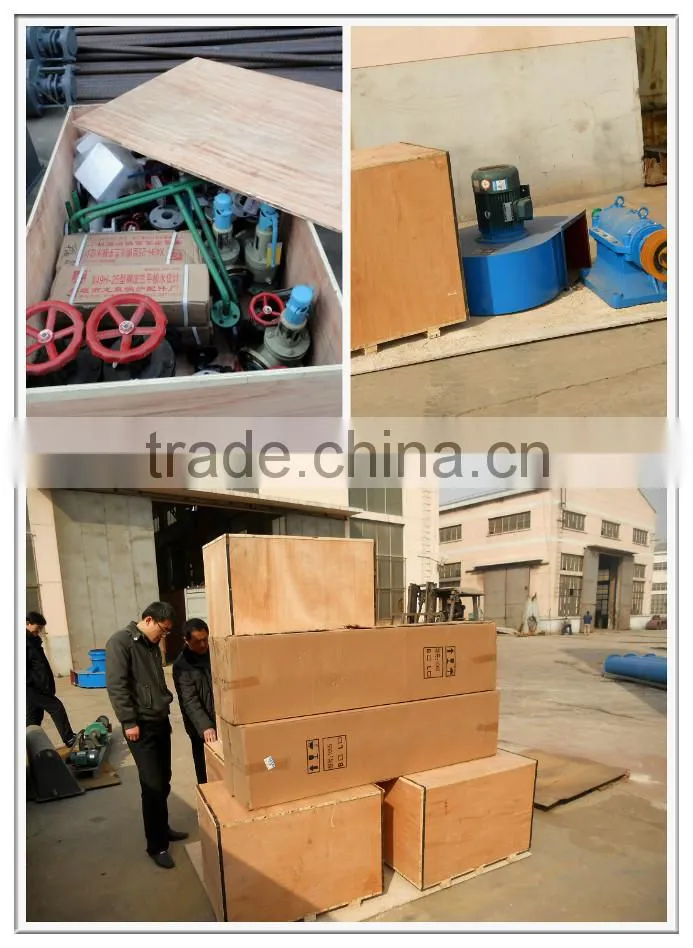

Spare parts in wooden case

Small wood chip boiler

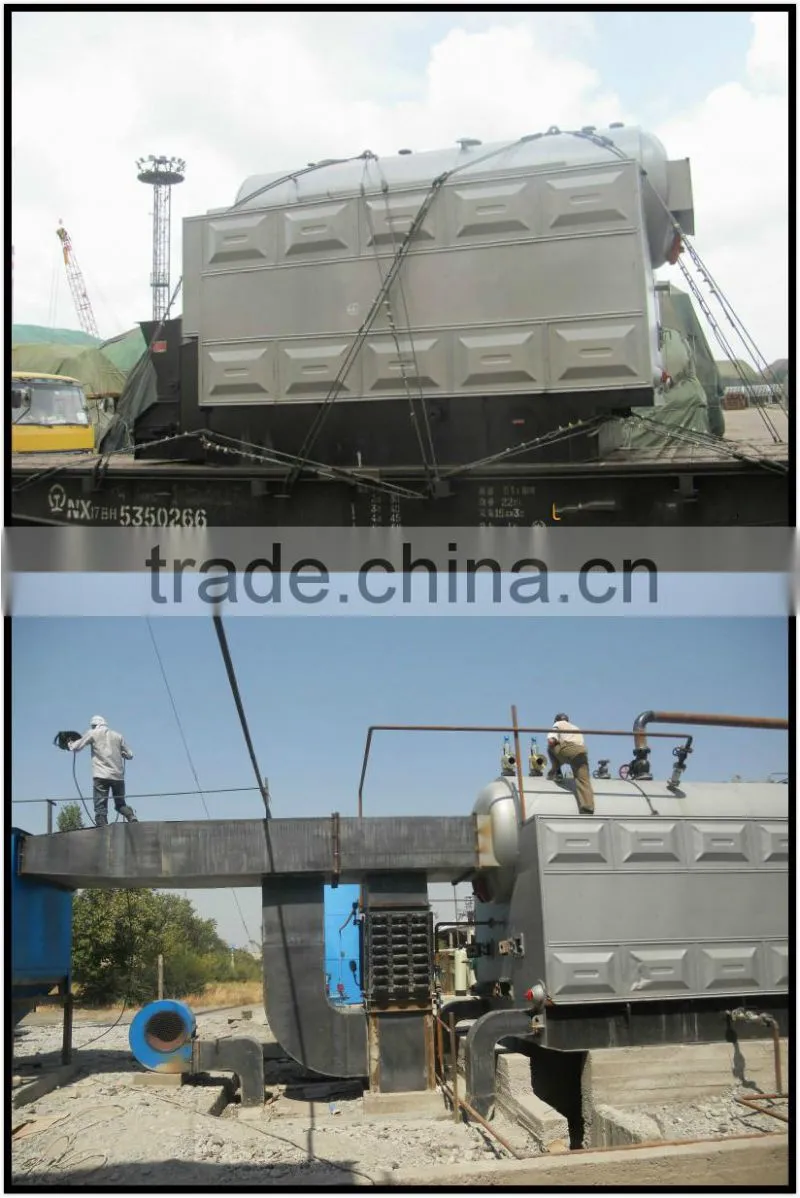

Boiler body in plastic sheets packing

Small wood chip boiler








Our Services







---- Engineers are available service overseas





---- Engineers 24hours online













FAQ







  1. How much steam capacity do you want ?
  2. How much working pressure it the boiler ?
  3. What kind of fuel do you prefer ?
  4. And, what are the electric conditions in your market ? Voltage, HZ etc
