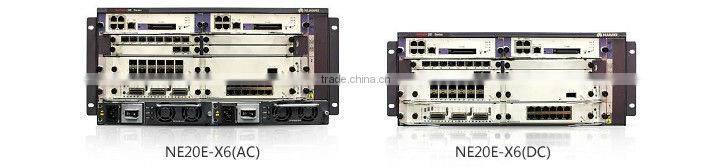

Help CenterHUAWEI NetEngine 20E/20 Series DC Multi-service Router NE20E-X6
Related Products
-
HUAWEI NetEngine 20E/20 Series AC Multi-service Router NE20E-X6NegotiableMOQ: 1 Set -
HUAWEI NetEngine 20E/20 Series Multi-service Router NE20E-8NegotiableMOQ: 1 Set
-
HUAWEI NetEngine 20E/20 Series Multi-service Router NE20-8NegotiableMOQ: 1 Set
-
HUAWEI NetEngine 20E/20 Series Multi-service Router NE20-4NegotiableMOQ: 1 Set
-
Huawei AR120 Series Enterprise Routers AR121NegotiableMOQ: 1 Piece
Overview
The HUAWEI® NetEngine 20E/20 series multi-service router (abbreviated as NE20E/NE20) is among Huawei's 5th generation routers and adopts centralized forwarding design. The NE20E/NE20 router can be deployed at the edge of carriers' IP networks, or at the core and the convergence layers of various business and enterprise networks. The NE20E/NE20 series router includes four models: NE20-8, NE20-4, NE20-2 and NE20E-8.
The NE20E-8 is an enhancement of the NE20. It adopts the bus technique of the Huawei core routers, has a backplane capacity of 40G, and boasts of better scalability.
Features
High Forwarding Performance
As a member of Huawei's 5th generation router family, the NE20E/NE20 adopted Network Processor (NP) technology, taking advantages of both ASIC and CPU. So it features hardware-based high performance (4.5 Mpps) and software-based high flexibility. The NE20E/NE20 router can support fast packet-forwarding on all kinds of interfaces, including the packet with QoS and security information.
Supporting IPv4 and IPv6 Protocol Stacks
The NE20E/NE20 supports IPv4 and IPv6 protocol stacks.
The NE20E/NE20 also supports IPv4-to-IPv6 transition technologies such as manually configured tunnel, automatically configured tunnel, 6to4 tunnel, Network Address Translation-Protocol Translation (NAT-PT), and IPv6 Provider Edge (6PE).
Abundant Services
Supports L2TP-based layer 2 tunnel and GRE-based layer 3 tunnel. Provides a complete suit of network security schemes, such as access control, connectionless integrality and data source authentication, encryption as well as traffic classification, combined with IPSec technologies.
Provides powerful MPLS VPN functions, such as L2/L3 MPLS VPN, traditional L2 VPN, transparently transmitting L2 data of users on MPLS networks, and PE hierarchical architecture (Hierarchy of PE, HoPE).
Supports standard Differentiated Service (Diff-Serv) consisting of complex traffic classification, Traffic Policing (TP), Traffic Shaping (TS), congestion management (PQ/CQ/WFQ/CBQ) and congestion avoidance (WRED), accurately assures the bandwidth and delay for various services. Supports advanced congestion control algorithms such as SARED.
Provides authentication, authorization and accounting (AAA) such as RADIUS and HWTACACS. Supports data transmission using plain-text and Message-Digest Algorithm 5 (MD5) methods. Supports packet filtering (interface-based ACL and ACL based on time range).
Supports NAT.
Carrier-class Reliability
Adopts dual-power redundancy (1+1 backup) module, supports AC-input or DC-input power supplies as well as hot swap. All service interface cards as well as the fan support hot swap. The fan can automatically adjust its speed according to the environment condition.
Provides Backup Center function and Virtual Router Redundancy Protocol (VRRP) technologies to assure unblocked data communication by providing a backup scheme in the event of faults occurring to communication lines or devices, effectively enhancing the network robustness and reliability. The Backup Center supports the backup load balancing function.
Convenient Maintenance Management
Supports local or remote maintenance via Console port, AUX dial-in and Telnet as well as Secure Shell (SSH), preventing attacks such as IP spoofing and plain-text password intercept.
Supports SNMP (V1/V2c/V3) and Client/Server architecture, and can be managed by Network Management System -- iManager N2000.
Supports the automatic fault diagnosis function, which assists the maintenance engineer in locating the system-level fault quickly and accurately via the fault diagnosis software.
| Attribute | NE20E-X6 |
| Switching Capacity | 345 Gbps/950Gbps |
| Forwarding Performance | 225 Mpps |
| Number of Slots | 8 slots, including 2 MPUs (1:1backup),2 LPUs and 4FICs |
| Weight in full configuration | 39Kg(DC) 49Kg(AC) |
| Maximum power consumption | 1000W |
| Dimension (W×D×H) | 442mm×650mm×220 mm (AC 5U) 442mm×650mm×175 mm (DC 4U) |
| Interface type | 10GE- LAN /WAN OC-192c/STM-64c POS OC-12c/STM-4c POS OC-3c/STM-1c ATM E1/ CE1/T1 /CT1 GE/FE OC-48c/STM-16c POS OC-3c/STM-1c POS Channelized OC-3/STM-1 |
| IPv4 | Supports the static routing protocol and IPv4 dynamic routing protocols such as RIP, OSPF, IS-IS, and BGP-4. |
| IPv6 | Support MPLS TE, MPLS/BGP VPN, RFC2547bis protocol; Supports three cross-domain implementations; Support MPLS L2 VPN based on Martini, Kompella, support VPLS/VLL and other layer 2 VPN, |
| Layer 2 feature | Supports IEEE 802.1Q, IEEE802.1ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s,support Super VLAN,Support filtering list based on MAC address and port, support 1483B |
| Reliability | Supports BGP GR, IS-IS GR, and OSPF GR. Supports LDP GR, Resource-Reservation Protocol (RSVP) GR, and Non-Stop Forwarding (NSF). Supports VLL/VPLS/L3VPN GR/NSF. Supports multicast NSF. Supports BGP/IS-IS/OSPF/LDP/RSVP-TE/PIM/ISSU Non-Stop Routing (NSR). Supports In-Service Software Upgrade (ISSU). Supports fast convergence of Interior Gateway Protocols (IGPs), BGP, and multicast routing. Supports IP/LDP/VPN/TE/VLL FRR. Supports IP Auto FRR. Supports BFD for the static routing protocol and protocols such as IS-IS, RSVP, LDP, TE, Label Switched Path (LSP), PW, OSPF, BGP, VRRP, PIM, and RRPP. Supports RRPP. Supports MPLS OAM and Ethernet OAM, Y.1731. Supports backup of service routers, PW redundancy, and PWE3 end-to-end protection. Supports E-Trunk, E-APS, E-STP. |
| QoS | Supports Weighted Random Early Detection (WRED), DS-TE capability with a maximum of eight CTs, five-level H-QoS scheduling, VLL/PWE3 QoS, and MPLS H-QoS. Supports the last mile QoS. Supports multicast replication of IPoE access users. |
| Multicast | Supports IGMPv1, IGMPv2, IGMPv3, IGMP snooping, multicast VPN, and IPv6 multicast. Supports static multicast routes. Supports multicast routing protocols: PIM-DM, PIM-SM, PIM-SSM, Multicast source Discovery Protocol (MSDP), and Multi protocol BGP (MBGP). Supports the deployment of both multicast and TE. Supports multicast CAC. |
| Security | Supports ACL filtering, URPF, GTSM, DHCP Snooping. Supports anti-ARP attack,anti-DOS attack. Supports MAC address limitation, bonding between MAC and IP. Supports SSH, SSH v2. Supports NetStream. Supports IPSec. |
| Environmental requirements |
0% to 95%, non-condensing Long-term ambient temperature: 0°C to 45°C Short-term ambient temperature: –5°C to +55°C |
