CISCO Routers CISCO7603-S

CISCO Routers CISCO7603-S thumbnail-1
CISCO Routers CISCO7603-S photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wired
Application:
Enterprise
Contact Supplier Request Quote Chat Now
Guangzhou Suenyuet Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wired
Application Enterprise
Function Firewall, QoS, VPN
LAN Ports Other
WAN Ports Other
Certification CE
Brand Name CISCO
Model Number CISCO7603-S

Specifications

4RU (7-in.) 3-slot chassis
Total throughput: 240 Gbps
Route processor protection capability: 1+1

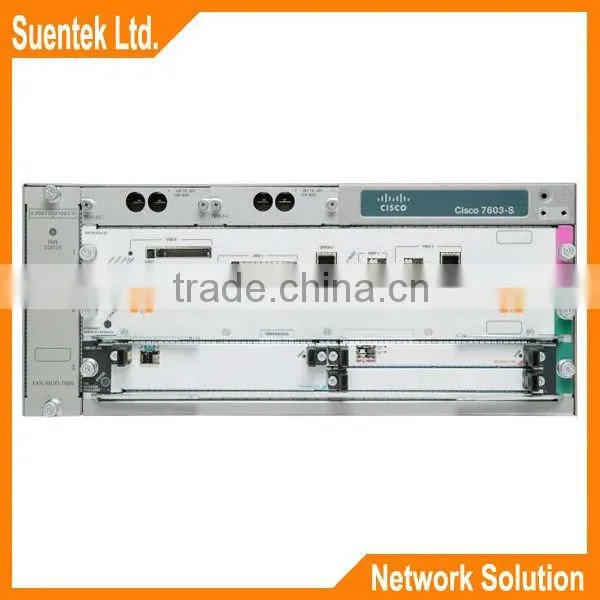

The Cisco® 7603-S Router is a compact, 3-slot, high-performance router designed for
deployment at the access or aggregation edge, where a combination of performance and
multiple services options is necessary to meet the requirements of both enterprises and
service providers. It enables Carrier Ethernet service providers to deploy an advanced
network infrastructure that supports a range of IP video and triple-play (voice, video, and
data) system applications in both the residential and business services markets. The
Cisco 7603-S also enables mobile operators to preaggregate time-division (TDM) and
ATM circuits over a common pseudowire layer, tremendously reducing operating
expenses (OpEx). The Cisco 7606-S also delivers WAN and metropolitan-area network
(MAN) networking solutions at the enterprise edge.





Cisco 7603-S Chassis Features
 Four RU (7-inch) compact chassis, up to 11 chassis per 7-foot rack
 Two interface slots plus two supervisor-mounted Gigabit Ethernet ports (gigabit interface
converters [GBICs])
 Network Equipment Building Standards (NEBS) Level 3 compliance
 Route processor protection capability: 1+1
 Power supply: 1500W DC
 Single-side connection management for both interface and power terminations
 Side-to-side airflow


Cisco 7603-S System Features
 Hardware-based Cisco Express Forwarding at 15 Mpps (Cisco Express Forwarding, access
control lists [ACLs]), classification, shaping, filtering, marking, etc.)
 Total throughput: 240 Gbps
 Interface flexibility for PoS, Channelized optical, Ethernet, and ATM connectivity







General
Device Type Modular expansion base
Enclosure Type Rack-mountable - modular - 4U
Connectivity Technology Wired
Expansion / Connectivity
Expansion Slot(s) 3 (total) / 3 (free) x Expansion Slot
Installed Modules Qty (Max) 0 (installed) / 3 (max)
Power
Power Device Power supply - hot-plug / redundant - plug-in module
Installed Qty 2 (max)
Miscellaneous
Width 44.1 cm
Depth 51.6 cm
Height 17.8 cm
Weight 12.3 kg
Rack Mounting Kit Included
Compliant Standards NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A, EN300-386
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 - 85%







Item Number: CISCO7603-S

Description:



4RU (7-in.) 3-slot chassis
Metrics (H x W x D): (7 in. x 17.37 in. x 20.3 in.)
Weight: 28.8 lb (13.07 kg)
Power requirements: –48 to –60 VDC







Condition: New Sealed

Waranty: 1 Year



--------------------------
