CISCO Routers CISCO7609

CISCO Routers CISCO7609 thumbnail-1
CISCO Routers CISCO7609 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wired
Application:
Enterprise
Contact Supplier Request Quote Chat Now
Guangzhou Suenyuet Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wired
Application Enterprise
Function Firewall, QoS, VPN
LAN Ports Other
WAN Ports Other
Certification CE
Brand Name CISCO
Model Number CISCO7609

Specifications

21RU (36.75 in. [93.3 cm]) high
Total throughput: 720 Gbps
Route processor protection capability: 1+1

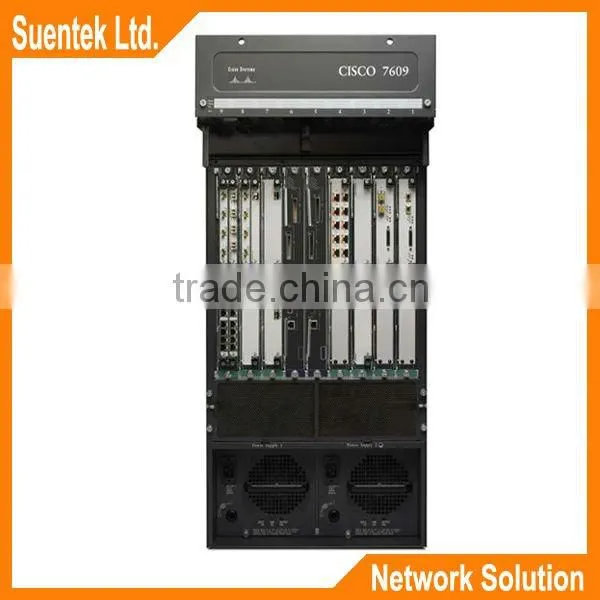

Cisco 7609 Router
The Cisco® 7609 Router is a high-performance router deployed at the network edge, where
performance, IP services, redundancy, and fault resiliency are critical. It enables Carrier Ethernet
service providers to deploy an advanced network infrastructure that supports a range of IP video
and triple-play (voice, video, and data) system applications in both the residential and business
services markets. The Cisco 7609 enables enterprises to deploy advanced WAN and
metropolitan-area network (MAN) networking solutions necessary to succeed in demanding, hightraffic
environments.





Applications
The flexible Cisco 7609 Router is ideal for addressing high-performance applications such as:
 High-end customer premises equipment (CPE)
 Leased line
 IP/Multiprotocol Label Switching (MPLS) provider edge
 Metro Ethernet access
 Enterprise WAN aggregation
 Mobile Radio Access Network (RAN) aggregation
 Residential subscriber aggregation





Feature Summary
Cisco 7609 Chassis Features
 21RU (36.75 in. [93.3 cm]) high, up to 2 chassis per 7-foot rack
 Nine configurable interface slots
 Route processor, switch fabric, and power supply protection capability: 1 + 1
 Tiered-speed fan design (standard): 1 + 1
 Cable management tray options for fiber and coaxial and dense 10/100 cable
configurations
 Single-side connection management for both interface and power terminations
 Front-to-back airflow


Cisco 7609 System Features
 Total throughput: 720 Gbps
 Up to 400-Mpps distributed forward rate (requires distributed forwarding cards [DFCs])





General
Device Type Router
Enclosure Type Rack-mountable - modular - 21U
Connectivity Technology Wired
Expansion / Connectivity
Expansion Slot(s) 9 Expansion Slot
Installed Modules Qty (Max) 9 (max)
Miscellaneous
Width 43.1 cm
Depth 53.3 cm
Height 93.3 cm
Weight 54.9 kg
Rack Mounting Kit Included
MTBF 7 years
Compliant Standards FCC Class A certified, ETSI, CSA, UL, EN 60950, EN 61000-3-2, EN50082, ICES-003, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 - 85%







Item Number: CISCO7609

Description:



 Nine-slot chassis
 Network Equipment Building Standards (NEBS) Level 3 compliance
 Minimum route processor requirement; one Cisco Catalyst 6500 Series Supervisor Engine
2 with Multilayer Switch Feature Card 2 (MFSC-2)
 Dimensions (H x W x D): 36.75 x 17.2 x 20.7 in. (93.3 x 43.1 x 53.3 cm)
 Power requirements:
–208 to 240 VAC (recommended)
–48 to –60 VDC (4000 WAC supplies require 30A input circuits)
 Weight: 121 lb (54.9 kg; chassis only); 270 lb (122.5 kg; full configuration)







Condition: New Sealed

Waranty: 1 Year



--------------------------



Our Services

==>Trusted by 5000+Worldwide Buyers

==> Huge Inventory in Stock

==>Up to 1 Year Warranty

==>Save up to 50%-98% off GPL

==>Cisco Certified Internetwork Expert Support 7X24 Hours

==>Flexible Payment & Shipment

==>100% Money Bank Guarantee



--------------------------



Related Cisco  7600 Series Routers ' Chassis:

--------------------------



CISCO7603

CISCO7603-S

CISCO7604

CISCO7606

CISCO7609

CISCO7609-S

CISCO7613
