Specifications
High Speed Dome PTZ Laser Camera1.FCB-EX1010 Zoom
2.36X Optical Zoom
3.12X Digital Zoom
4.Motion Detection
Full HD 1080P Laser Camera 36X Zoom Sony CCD 530TVL High Speed Dome PTZ Laser Camera LC-EX1010EP
High Speed Dome PTZ Laser Camera Features:
- Humanistic design, fashion Structure, Easy for Installation and Maintenance
- Clear Night-vision distance of IR LED light 120M
- Pan:360°, Non-Limited Position, Pitching 105°(-90°~15°), Non Blind spots
- Humanize focus and speed proportion.
- 128 Presets (Titles can be set), according to Preset run Tour, also can setting the preset speed and stay time
- 8 programmable zones with titles, 4 PATTERN ), Each records time is not less then 180s
- 4 Scan, support scan between left and right limit at an appointed speed.
- Built-in OSD Menu,can change information and parameter of dome through menu, also can set and call presets, tour, scan, pattern, camera mode and display name etc.
- Park action function, can auto-call presets or start-up tour, pattern and scan after dome idle for a period of time
- 7 alarm input, 2 alarm output, support linkage. (To call preset pattern, scan, tour, display areas etc)
- Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu.
- Memory store function, built-in memorizer which can store parameters of camera & functions of PTZ.
- Temperature display function, can survey the temperature inside of dome.
- Fan enable function, through pre-setting the temperature to start-up the fan.
- Display function of Pan/tilt position and zoom, provide a port for motion-tracking and data processing
- Privacy masking Function
- Communication: RS485, Manchester, BI-PHASE, Coxial Video Control
- Support Built-in Protocol, Completely compatible PELCO-D, PELCO-P, KALATEL, AD, PHILIPS, MOLYNX and So on
- IP66 All-day protection cover, Built-in constant temperature device.
- Built-in TV4000V Light-proof, Surge-Proof, Wave-Proof

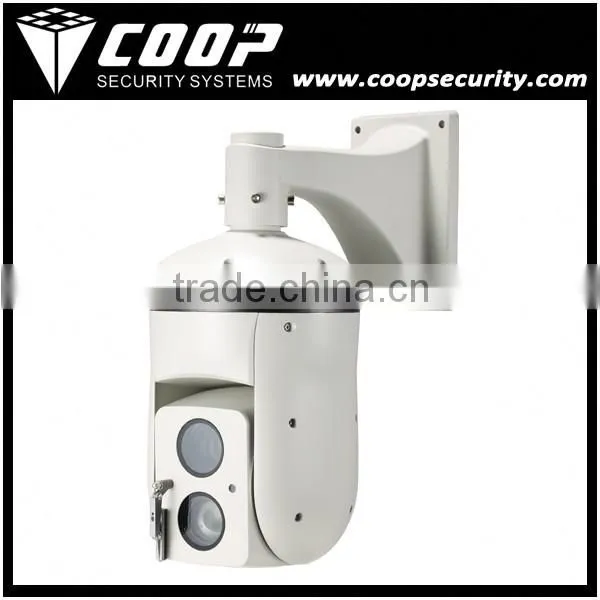

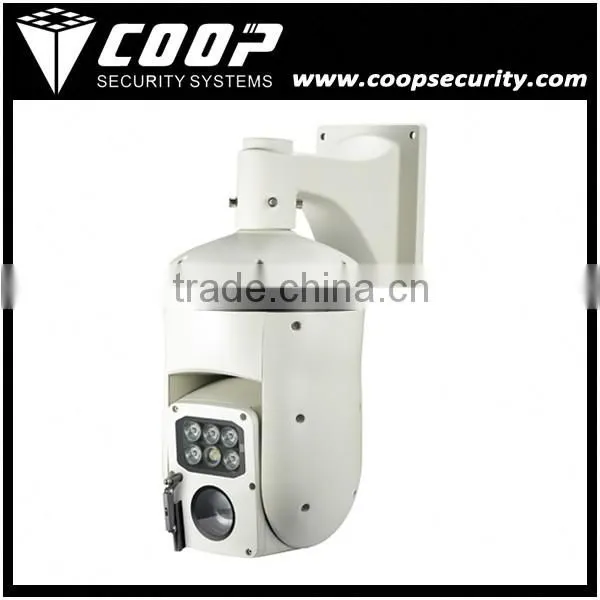

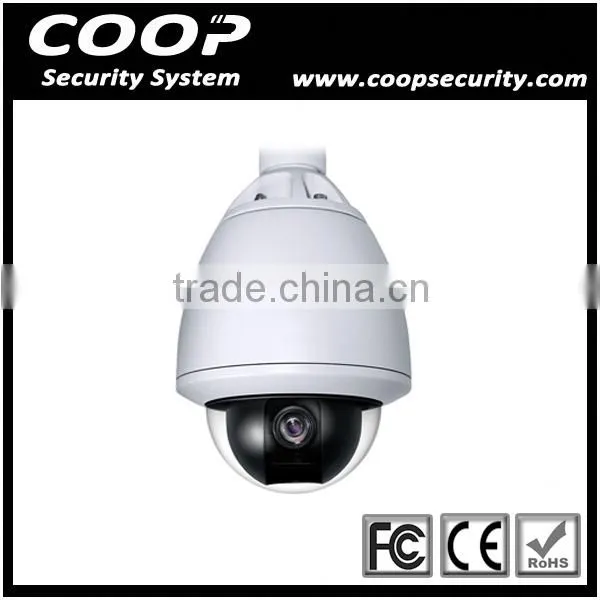

High Speed Dome PTZ Laser Camera Pictures:
High Speed Dome PTZ Laser Camera pecification:
| Model No. | LC-EX1010EP |
| Zoom Type | FCB-EX1010 |
| Image Sensor | 1/4-type Exview HAD CCD |
| TVL | 530TVL |
| Lens | f=3.4~122.4 mm |
| Optical Zoom | 36X |
| Digital Zoom | 12X |
| Lux |
1/60 s mode: 1.4 lx 1/4 s mode: 0.1 lx |
| IR Light Angle | 6o—48° |
| Effective IR Light Range | 120M |
| Consumption | 5pcs IR light(3W) 1pcs IR light(1.5W) |
| Support | WDR,Auto ICR, Digital Noise Reduction, Privacy Mask, Motion Detection |
| Control | Auto/manual |
| Power Supply | AC 24V |
| Power consumption | 50W |
| Surveillance Control | Manual Control/Time to start setting |
| IR Light Control | Manual/Auto (IR LED will be On/Off automatically according to the brightness) |
| Manual Speed | Pan: (0.4°~240°/s) |
| Tilt: (0.4°~120°/s) | |
| Preset Speed | Pan: 240°/s, Tilt: 120°/s |
| Rotation | Pan: 360° Continue rotation;Tilt: 105° (-90°~+15)° With Auto-Flip |
| Speed Proportion | According to the focus length, to auto-adjust the speed |
| Presets | 128 presets, Titles can be edited |
| Auto Flip | Tilt down 90°, with auto-flip 180° |
| Scan | 355° (Optional Setting ),4 Scans |
| Display Zone | 8 Programmable Zones with Titles |
| Alarm Function | 7 Alarm Input/ 2 Alarm Output |
| Decoder | Built-in |
| Video Output Interface | Female BNC |
| Remove Control | RS485/422 ,Manchester,BI-PHASE,Coaxial Video Control |
| Baud Rate(RS485) | 2400/4800/9600/19200 bps |
| ID Range | 1~254 |
| Environment Temperature | -40℃~+60℃ |
| Environment Humidity | 0~95% (Non-Condensation) |
| Protection Grade | IP66, TV4000V Light-proof, Surge-Proof, Wave-Proof |

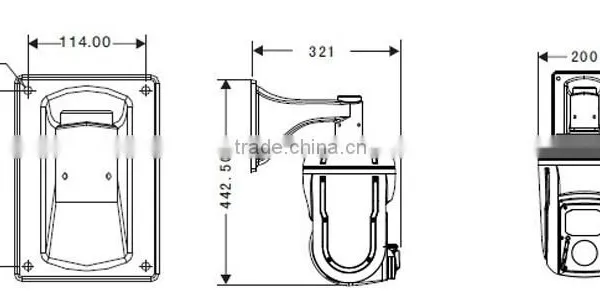

| Dimension(HxD) | Φ200*353mm |

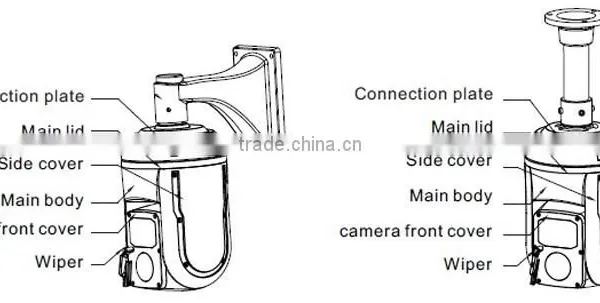

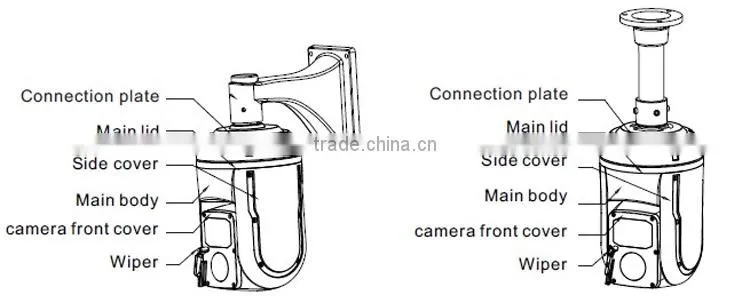

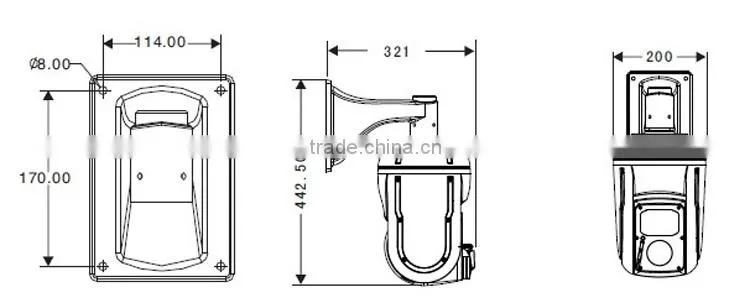

High Speed Dome PTZ Laser Camera Auxiliary Bracket:
High Speed Dome PTZ Laser Camera Other Light Sources:
Laser PTZ Dome Camera White LED PTZ dome Camera
Night Vision:250M-300M Night Vision:100-120M
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei Int'l Electronics Show
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS
Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.

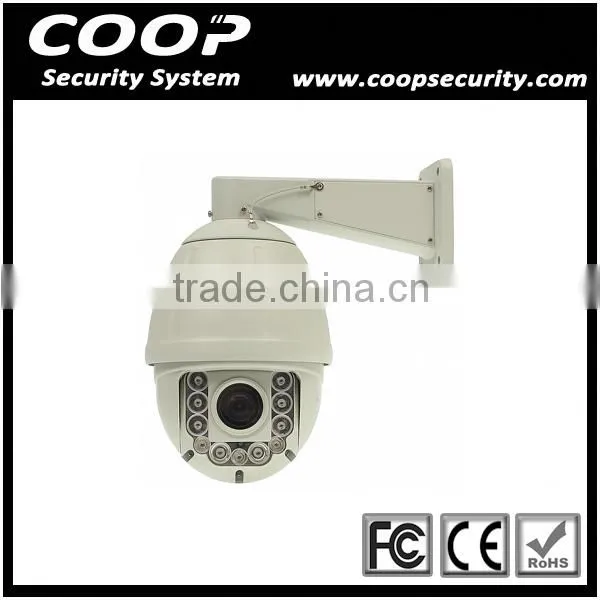

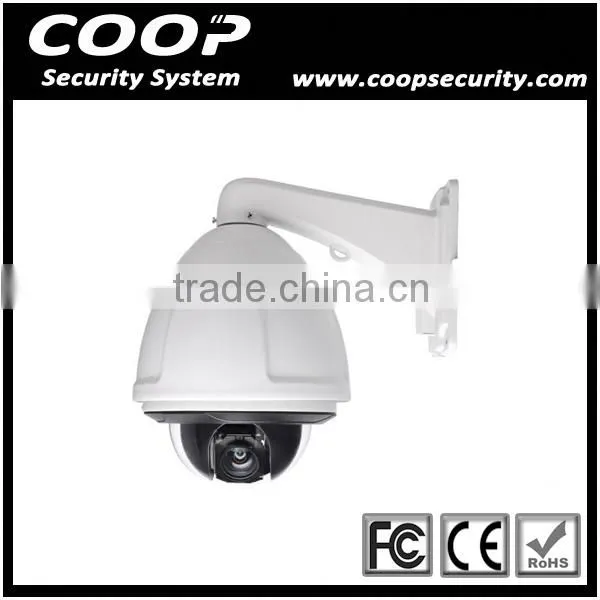

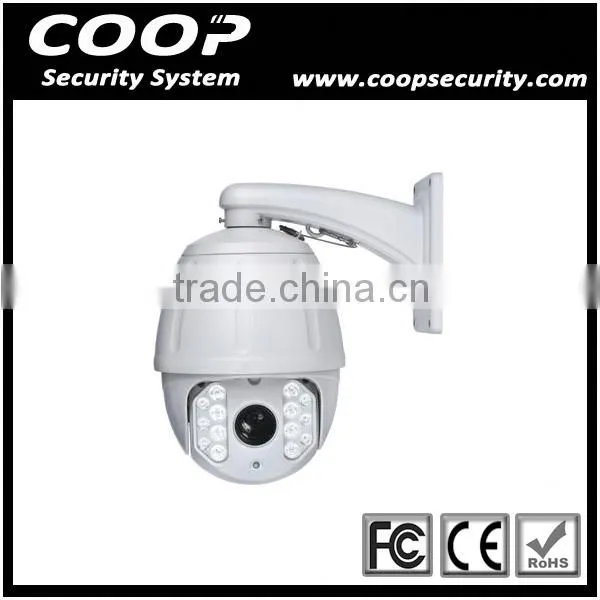

High Speed Dome PTZ Laser Camera Similar Products:
