Specifications
Full HD 20x/30x Network IR PTZ Dome CameraICR LENGS
2 YEAR WARRANTY
PTZ DOME CAMERA

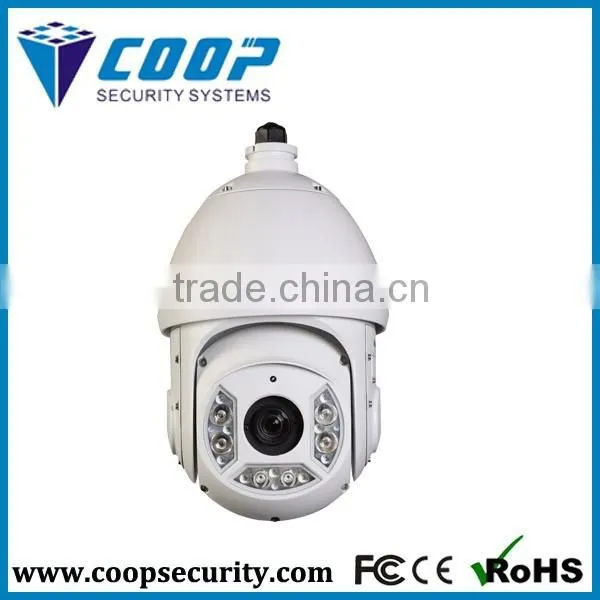

Digital Camera Type and Dome Camera Style Full HD 20x/30x Network IR PTZ Dome Camera
2MP FULL HD 20X Network IR PTZ Dome Camera
>20x optical zoom
>Support dual-streams encoding
>Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution
>DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 240°/s pan speed, 360° endless pan rotation
>Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66
>IR Distance up to 100m
Model |
DH-SD6C220S-HN |
||
Camera | |||
Image Sensor |
1/2.8” Exmor CMOS |
||
Effective Pixels |
1920(H) x 1080(V) |
||
Scanning System |
Progressive |
||
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
||
Min. Illumination |
Color: 0.05Lux F1.6; B/W: 0.005Lux F1.6 |
||
S/N Ratio |
More than 50dB |
||
Video Output |
BNC(1.0Vp-p/75Ω), PAL / NTSC |
||
Camera Features | |||
Day/Night |
Auto(ICR) / Color / B/W |
||
Backlight Compensation |
BLC / HLC / DWDR (Digital WDR) |
||
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
||
Gain Control |
Auto / Manual |
||
Noise Reduction |
Ultra DNR (2D/3D) |
||
Privacy Masking |
Up to 24 areas |
||
Digital Zoom |
16x |
||
Lens | |||
Focal Length |
5.5mm ~ 110.0mm |
||
Max Aperture |
F1.6 ~ F3.5 |
||
Focus Control |
Auto / Manual |
||
Angle of View |
H: 51° ~ 2.60° |
||
Close Focus Distance |
100mm~ 1000mm |
||
PTZ | |||
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
||
Manual Control Speed |
Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s |
||
Preset Speed |
Pan: 240° /s; Tilt: 200° /s |
||
Preset |
80(DH-SD), 255(Pelco-P/D) |
||
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
||
Speed Setup |
Human-oriented focal length/ speed adaptation |
||
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
||
Idle Motion |
Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
||
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
||
IR Distance |
100m (2 near IR LED+ 4 far IR LED) |
||
Video | |||
Compression |
H.264 / MJPEG |
||
Resolution |
1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF |
||
Frame Rate |
Main Stream |
1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
||
|
|
|
|
Bit Rate |
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
||
Audio | |||
Compression |
G.711a / G.711u(32kbps)/ PCM(128kbps) |
||
Interface |
1/1 channel In/Out |
||
Network | |||
Ethernet |
RJ-45 (10/100Base-T) |
||
Protocol |
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
||
Compatibility |
ONVIF PSIA CGI |
||
Max. User Access |
20 users |
||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
||
Auxiliary Interface | |||
Memory Slot |
Micro SD, Max 64GB |
||
RS485 |
1 |
||
Alarm |
2/1 channel In/Out |
||
General | |||
Power Supply |
AC 24V/3A (±10%) |
||
Power Consumption |
10.5W, 26W (IR on, Heater on) |
||
Working Environment |
-40ºC ~ 60ºC / Less than 90% RH |
||
Ingress Protection |
IP66 |
||
Dimensions |
Φ204.7(mm) x 359.9(mm) |
||
Weight |
7.8kg |
||
H.264&MJPEG video compression and JPEG image capture Camera
Feature:
> 1.3mp,2.0MP,3.0Mp High resolution
> Ti DaVinci Series DSP&SONY IMX122 Optional
> H.264&MJPEG video compression and JPEG image capture
> Dual encoding streams supported
> Lens:2.8-12mm Megapixel Lens
> True Day/Night ICR
> Support Alarm I/O
> Micro SD Card
> IP66 all-environments protection
> Support DC12V power supply, PoE
> Built-in Web server, NVR, CMS
NVR KIT
4 channel nvr kit dome camera or bullet camera free combination
720P/960P POE NVR KIT 4CH / 720P WIFI NVR KIT 4CH
8ch poe nvr kit
720P/960P/1080P optional Bullet Camera Or Dome Camera Optional
All of items will be careful packaged before shipping, As below photo showed :
Shipping Way:
by sea /air / express
COOPSECURITY is professional security equipment supplier committe to provide secuiry surveillance goods.
There are wide range of security camera to cover everything. From home design camera with night vision and outdoor project bullet ip ptz and HD resolution camera. Also the related accessoires. All of product were technological updated contantly.
We are hoping to offer you the eco device that low power comsuption, good reliability long life and secure enviroment.
Fair
Certification if you need CE ROHS
