Specifications
8 POE INTERFACE NVREASY INSTALLATION
DV48
HDD PORT

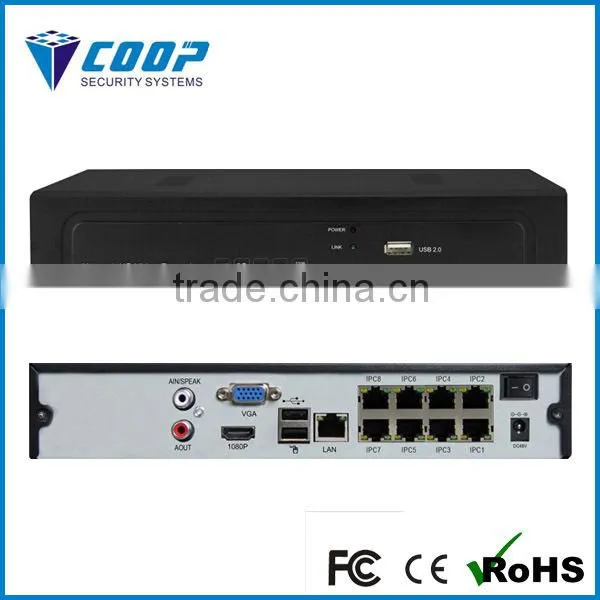

Network ip gate systems video transmitter POE 8ch nvr DesKtop installation DV48
Model Number |
DV6008-POE |
|
Operating System |
Embedded LINUX operating system |
|
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|
Dual Stream |
Each channel can set main stream and sub stream |
|
Video Standard |
1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps |
|
Monitoring Image Quality |
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
|
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support) |
|
Recording Playback Quality |
4ch playback in 4ch 720 mode; 1ch 1080P playback in 4ch 960P/1080P model |
|
Region Cover |
Every channel can set 4 cover regions(IPC Support) |
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) |
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
|
Operation Way |
Mouse |
|
Local Login |
User name and password |
|
Recording Storage |
Local HDD, network |
|
External Ports |
Video Input |
8×(1280*720) +sub[640*360]+1Ref.+4Play 8ch 1.0MP IP Camera |
8×(1280*960)+sub[640*480]+4Ref.+1Play 8ch 1.3MP IP Camera | ||
8×(1280*960)+sub[720*576]+2Ref.+1Play 8ch 1.3MP IP Camera | ||
8×(1920*1080)+sub[640*480]+2Ref.+1Play 8ch 2.0MP IP Camera | ||
8×(1920*1080)+sub[720*576]+1Ref.+1Play 8ch 2.0MP IP Camera | ||
Audio Input |
8ch network audio input |
|
Video Output |
1ch VGA+1ch HDMI |
|
Audio Output |
1ch RCA Output |
|
Network Port |
9 RJ45, 100M LAN port, data transferring and power supply both by network cable |
|
USB Port |
3 USB 2.0 ports |
|
Wireless Port |
3G,WIFI |
|
HDD |
HDD Port |
1 SATA HDD Port |
MAX Capacity |
Each port supports MAX 4TB HDD |
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
Power Supply |
DC48V 2.5A |
|
Power Consumption |
≤115W(without HDD) |
|
Working Temperature |
-10℃~+55℃ |
|
Working Humidity |
10%-90% |
|
Dimension |
Equipment:260mm×220mm×43mm, Packing:355mm×255mm×88.5mm |
|
Weight(without HDD) |
N.W.:1.7Kg;With packing:2.6Kg |
|
Outside Carton |
10 pcs/carton. 525mm×455mm×365mm; Weight:27 Kg |
|
Installation Way |
Desktop Installation |
|
Related NVR KIT
4 channel nvr +4pcs 720P IP CCTV CAMERAS
Color Box
