Onvif Mini NVR

Name: Onvif Mini NVR
Brand: COOP
SKU: 103888577
Availability: InStock

US$ 30 - 35 MOQ: 30 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

COOP

Model Number:

DV1004

Contact Supplier Request Quote Chat Now

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name COOP

Model Number DV1004

Specifications

4CH Onvif Mini NVR
Support cellphone technology
With Cloud technology
With 3G, WIFI wireless connection functions

4CH ONVIF Mini NVR

Model NO.:DV1004

Key Feature:

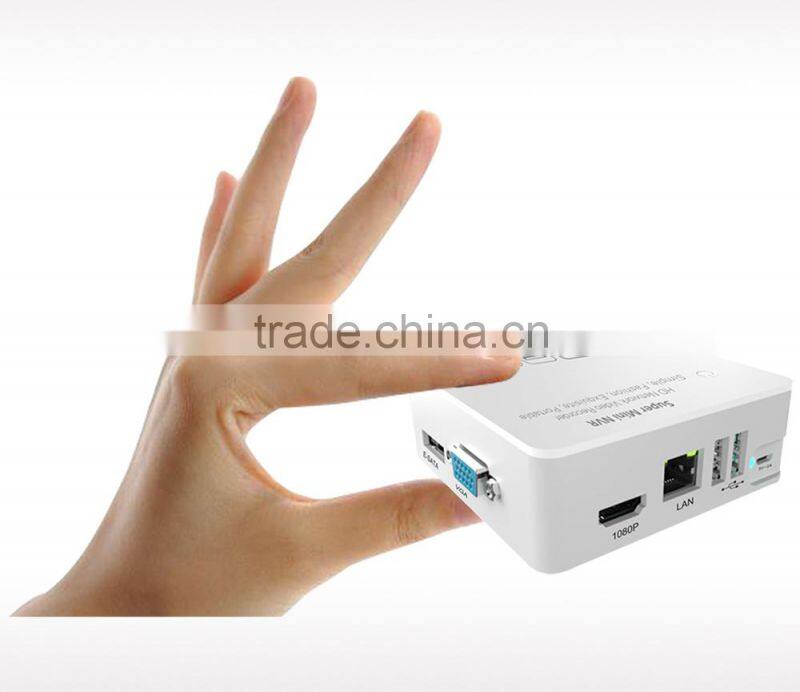

Mini portable Onvif NVR
Max support 4ch 720P/960P/1080P
Support cellphone technology
With Cloud technology

Support megapixel HD network video preview, storage and playback;

Click any area and zoom in or zoom out on the image by mouse;

Support digital zooming under preview and playback modes;

Support search, playback and backup by event;

Support 4ch playback simultaneously

Main Functions:

1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient forthe project construction;

2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parametersare more easy and convenient;

3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomlyunder preview and playback modes;

4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;

5. The recording playback is shown by time bar and different color represents different recording type. It is veryfast and easy to find check the recording;

6. Recording backup can be accurate to second. Any time period of backup is available;

7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures canbe viewed directly;

8. With 3G, WIFI wireless connection functions;

9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;

10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD

Specifications:

Model Number		DV1004
Operating System		Embedded LINUX operating system
Image Code Control		Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream		Each channel can set main stream and sub stream
Video Standard		1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps
Monitoring Image Quality		1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)
Image Motion Detection		Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support)
Recording Playback Quality		4ch playback in 4ch 720/960P mode;1ch 1080P playback in 1/4ch 1080P mode
Region Cover		Every channel can set 4 cover regions(IPC Support)
Recording Mode		Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
Backup Way		Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
Operation Way		Mouse
Local Login		User name and password
Recording Storage		Local HDD, network
External Ports	Video Input	*4×(1280720)+sub[960576]+4Ref.+4Play 4ch 1MP IP camera*
		*4×(1280960)+sub[960576]+1Ref.+4Play 4ch 1.3MP IP camera*
		*4×(19201080)+sub[960576]+4Ref.+1Play 4ch 2MP IP camera*
		*1×(19201080)+sub[960576]+4Ref.+1Play 1ch 2MP IP camera*
		*4×(720576)+sub[352288]+4Ref.+4Play 4ch 0.4MP IP camera*
	Audio Input	4ch network audio input
	Video Output	1ch VGA+1ch HDMI
	Network Port	1 RJ45,10M/100M self-adaptive LAN port
	USB Port	2 USB 2.0 ports
	Wireless Port	3G,WIFI
HDD		Mobile HDD/E-SATA/USB Disk
Mobile Surveillance		Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
Power Supply		5V2A
Power Consumption		≤10W(without HDD)
Working Temperature		-10℃~+55℃
Working Humidity		10%-90%

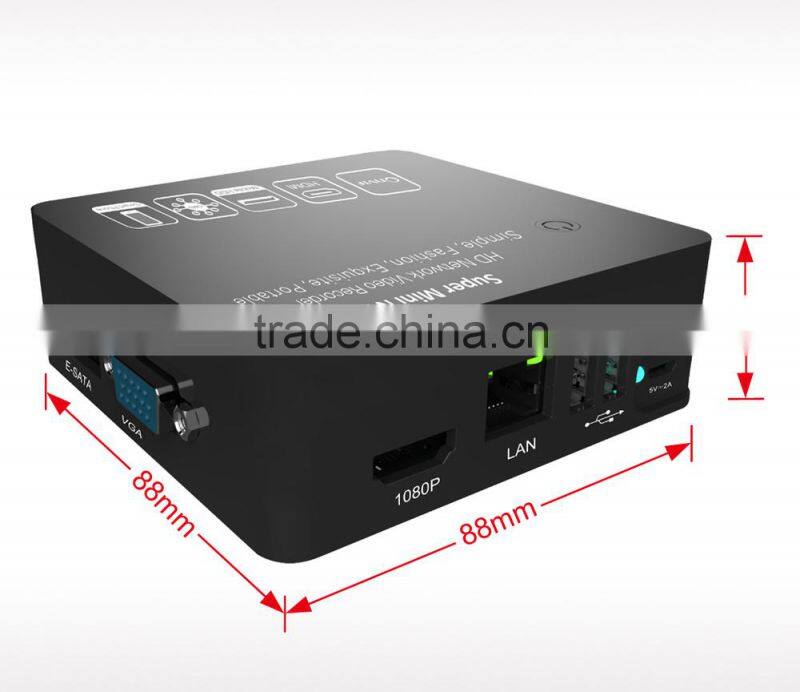

Dimension		Equipment:88mm×88mm×32mm, Packing:185.5mm×115.5mm×36mm
Weight(without HDD)		N.W.: 105g; With packing:250
Outside Carton		30 pcs/carton. 365mm×350mm×188mm; Weight: 8kg
Installation Way		Desktop Installation
