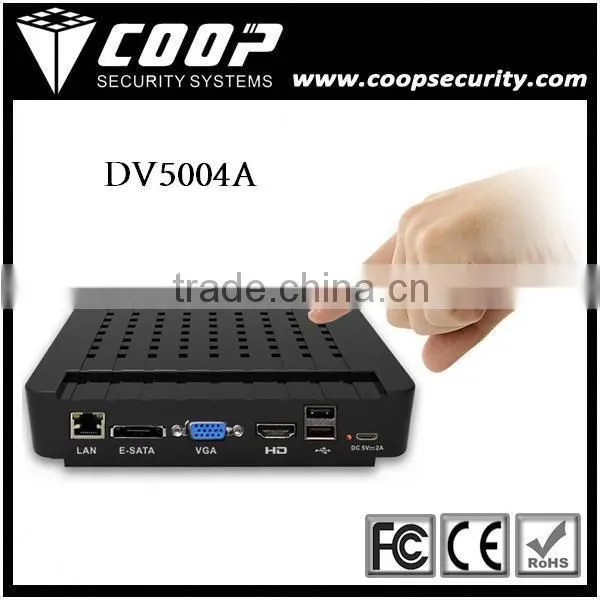

ONVIF VGA&HDMI Output 4CH Super Mini NVR Which Support 4ch 5.0MP IP Camera

Name: ONVIF VGA&HDMI Output 4CH Super Mini NVR Which Support 4ch 5.0MP IP Camera
Brand: COOP
SKU: 103888137

ONVIF VGA&HDMI Output 4CH Super Mini NVR Which Support 4ch 5.0MP IP Camera thumbnail-1

ONVIF VGA&HDMI Output 4CH Super Mini NVR Which Support 4ch 5.0MP IP Camera thumbnail-2

ONVIF VGA&HDMI Output 4CH Super Mini NVR Which Support 4ch 5.0MP IP Camera photo-1

ONVIF VGA&HDMI Output 4CH Super Mini NVR Which Support 4ch 5.0MP IP Camera photo-2

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

COOP

Model Number:

DV5004A

Contact Supplier Request Quote Chat Now

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shipping from Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name COOP

Model Number DV5004A

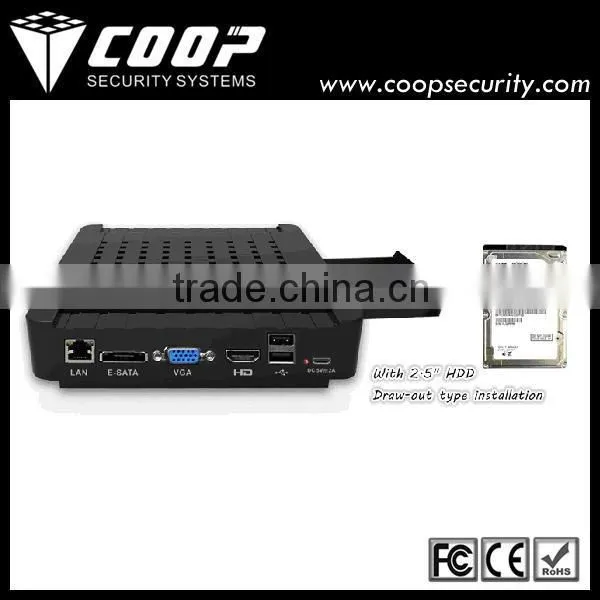

ONVIF 4CH 1080P Super Mini NVR with 2.5'' HDD Port

Model NO:DV5004A

Product Description

Key Features:

• P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVRat any time and any place

• Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that basedon Onvif, RTSP standard

• Support megapixel HD network video preview, storage and playback;

• Support search, playback and backup by event;

• Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream,and 4 channels playback;

• Support monitors PTZ on preview mode

• Offer CMS for free

Main Functions:

1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient forthe project construction;

2. The dendrite menu can be moved. Man-machine communication is more direct and the settings of parametersare more easy and convenient;

3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomlyunder preview and playback modes;

4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;

5. The recording playback is shown by time bar and different color represents different recording type. It is veryfast and easy to find check the recording;

6. Recording backup can be accurate to second. Any time period of backup is available;

7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures canbe viewed directly;

8. With 3G, WIFI wireless connection functions;

9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;

10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD.

Technical Specification:

*Model Number*		*DV5004A*
Operating System		Embedded LINUX operating system
Image Code Contrlo		Image code quality adjustable, variable bit-stream optional.
Dual Stream		Each channel can set main stream and sub stream.
Video Standard		1080P(1920×1080)30fps/960P(1280×960)/720P(1280×720)30fps
Monitoring Image Quality		1080P(1920×1080)/960P(1280×960)/720P(1280×720)
Image Motion Detection		Each screen can set multiple detection areas and set 6-level sensitivity (IPC Support)
Recording Playback Quality		4ch playback in 5MP/3MP/1080P mode
Region Cover		Every channel can set 4 cover regions (IPC Support)
Recording Mode		Support manual, auto, motion detection, alarm trigger record mode.
Backup Way		Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup.
Operation Way		Mouse
Local Login		User name and password.
Recording Storage		Local HDD, network
External Ports	Video Input	4×(25921944)+sub[960576]+4Ref.+4Play 4ch 5.0MP IP Camera
		4×(20481536)+sub[960576]+4Ref.+4Play 4ch 3.0MP IP Camera
		4×(19201080)+sub[960576]+4Ref.+4Play 4ch 2.0MP IP Camera
	Audio Input	4ch network audio input
	Video Output	1ch VGA+1ch HDMI
	Network Port	1 RJ45, 10M/100M/1000M
	USB Port	2×USB 2.0 ports
	Wireless Port	WIFI
HDD	HDD Port	1×2.5" HDD + 1 E-SATA HDD Port
	MAX Capacity	Each port supports MAX 4TB HDD
Mobile Surveillance		Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
Power Supply		5V2A
Power Consumption		≤10W(without HDD)
Working Temperature		-10℃~+55℃
Working Humidity		10%-90%
Dimension		Equipment: 162mm×162mm×35mm, Packing: 210mm×210mm×60mm
