WiFi P2P Onvif Free CMS 5MP Super Mini NVR 1U 2MP Mini 9CH 1080P NVR DV5009A
1U Mini 9CH 1080P NVR Features:
- P2P cloud service, including cloudconnecting, cloud monitoring, cloud transmitting to access IPC and NVRat any time and any place
- Support Onvif protocol, supportHigh profile S, High profile G, compatible with different IP camera that basedon Onvif, RTSP standard
- Support megapixel HD network videopreview, storage and playback;
- Support search, playback and backupby event;
- Support all channel image displayon one screen at same time, support 4 channels’ image display by mainstream,and4 channels playback;
- Support monitor PTZ on preview mode
- Offer CMS for free
1U Mini 9CH 1080P NVR Main Functions:
- Preview channel can be switched to other channel randomly without changing the MAC which is convenient forthe project construction;
- The dendritic menu can be moved. Man-machine communication is more direct and the settings of parametersare more easy and convenient;
- The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomlyunder preview and playback modes;
- Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
- The recording playback is shown by time bar and different color represents different recording type. It is veryfast and easy to find check the recording;
- Recording backup can be accurate to second. Any time period of backup is available;
- The recording files in the USB disk can play directly in the playback interface while the snapshot pictures canbe viewed directly;
- With 3G, WIFI wireless connection functions;
- Standard resolution which can be adjusted according to the display device in order to get the best image quality;
- Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD
1U Mini 9CH 1080P NVR Specification:
Model Number |
DV5004 |
DV5008 |
DV5004A |
DV5009A |
DV5016A |
|
Operating System |
Embedded LINUX operating system |
|||||
Image Code Contrlo |
Image code quality adjustable, variable bitstream optional. |
|||||
Dual Stream |
Each channel can set main stream and sub stream. |
|||||
Video Standard |
1080P(1920×1080)30fps/960P(1280×960)/720P(1280×720)30fps |
|||||
Monitoring Image Quality |
1080P(1920×1080)/960P(1280×960)/720P(1280×720) |
|||||
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support) |
|||||
Recording Playback Quality |
4ch 720P/960P playback |
4ch playback in |
4ch playback in 5MP/3MP/1080P mode |
Any 9ch 960P playback, |
Any 9ch 960P playback, 1080P playback simultaneously |
|
Region Cover |
Every channel can set 4 cover regions (IPC Support) |
|||||
Recording Mode |
Support manual, auto, motion detecion, alarm trigger record mode. |
|||||
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, nerwork storage and backup. |
|||||
Operation Way |
Mouse |
|||||
Local Login |
User name and password. |
|||||
Recording Storage |
Local HDD, nerwork |
|||||
External Ports |
Video Input |
1.4×(1280*720) |
1.8×(1280*960) |
1.4×(2592*1944)+sub |
1.9×(1920*1080) |
1.16×(1920*1080) |
2.4×(1280*960) |
2.8×(1280*1080) |
2.4×(2048*1536)+sub |
2.9×(1280*960) |
2.16×(1280*960) |
||
3.4×(1920*1080) |
3.8×(720*576) |
3.4×(1920*1080)+sub |
3.9×(2048*1536)+sub +4Ref.+4Play 9ch 3.0MP IP Camera |
3.9×(2048*1536) +sub[960*576] +4Ref.+4Play 9ch 3.0MP IP Camera |
||
4.1×(1920*1080) |
4.8×(1280*720) |
4.4×(2592*1944)+sub +4Ref.+4Play 4ch 5.0MP IP Camera |
4.4×(2592*1944) +sub[960*576] +4Ref.+4Play 4ch 5.0MP IP Camera |
|||
5.4×(720*576) |
5.8×(1280*960) |
|||||
6.8×(1920*1080) |
||||||
Audio Input |
4ch network audion input |
8ch network audion input |
4ch network audion input |
9/4ch network audion input |
16/9ch network audion input |
|
Video Output |
1ch VGA+1ch HDMI |
|||||
Network Port |
1 RJ45, 10M/100M/1000M |
|||||
USB Port |
2×USB 2.0 ports |
|||||
Wireless Port |
WIFI |
|||||
HDD |
HDD Port |
1×2.5" HDD + 1 E-SATA HDD Port |
||||
MAX Capacity |
Each port supports MAX 4TB HDD |
|||||
Mobile Surveillance |
Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|||||
Power Supply |
5V2A |
|||||
Power Consumption |
≤10W(without HDD) |
|||||
Working Temperature |
-10℃~+55℃ |
|||||
Working Humidity |
10%-90% |
|||||
Dimension |
Equipment: 162mm×162mm×35mm, Packing: 210mm×210mm×60mm |
|||||
Weight(without HDD) |
N.W.: 280g; With Package:700g |
|||||
Outside Carton |
20 pcs/carton. 215mm×215mm×610mm; Weight:7Kg |
|||||
Installation Way |
Desktop Installation |
|||||

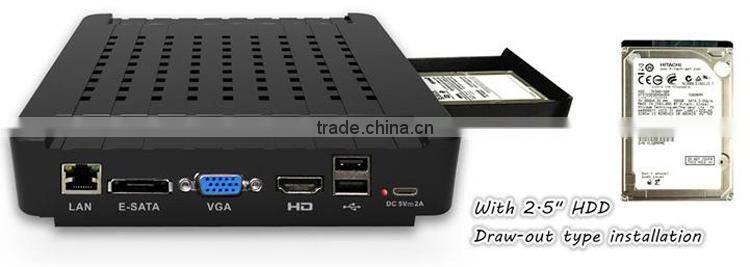

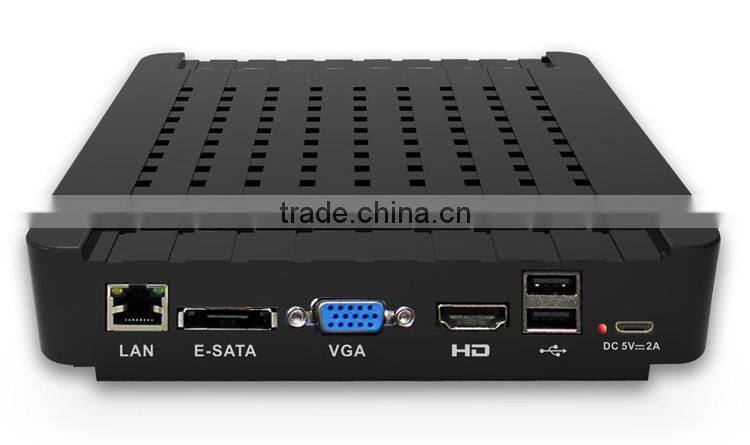

1U Mini 9CH 1080P NVR Pictures:
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Show:
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS
Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
