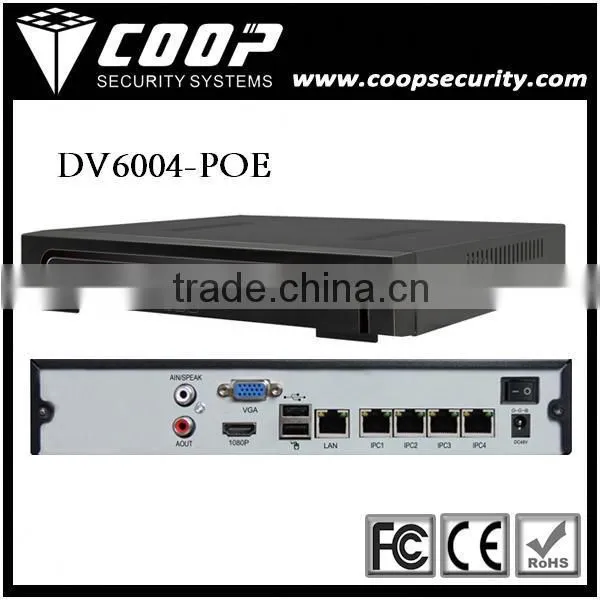

4CH 960P/4CH 1080P 1HDD 1U NVR With POE Function
Model NO.:DV6004-POE
Feature:
• P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVRat any time and any place
• Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that basedon Onvif, RTSP standard
• Support megapixel HD network video preview, storage and playback;
• Support search, playback and backup by event;
• Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream,and 4 channels playback;
• Support monitor PTZ on preview mode
• Offer CMS for free
Main Function:
1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient forthe project construction;
2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parametersare more easy and convenient;
3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomlyunder preview and playback modes;
4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
5. The recording playback is shown by time bar and different color represents different recording type. It is veryfast and easy to find check the recording;
6. Recording backup can be accurate to second. Any time period of backup is available;
7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures canbe viewed directly;
8. With 3G, WIFI wireless connection functions;
9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;
10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD
Specifications:
Model Number |
DV6004-POE |
|
Operating System |
Embedded LINUX operating system |
|
Image Code Control |
Image code quality adjustable,variable bitstream and constant bitstream optional |
|
Dual Stream |
Each channel can set main stream and sub stream |
|
Video Standard |
1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps |
|
Monitoring Image Quality |
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
|
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support) |
|
Recording Playback Quality |
4ch playback in 4ch 720/960P mode; 1ch 1080P playback in 1/4ch 1080P |
|
Region Cover |
Every channel can set 4 cover regions(IPC Support) |
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) |
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
|
Operation Way |
Mouse |
|
Local Login |
User name and password |
|
Recording Storage |
Local HDD, network |
|
External Ports |
Video Input |
4×(1280*720) +sub[960*576]+4Ref.+4Play 4ch 1.0MP IP Camera |
4×(1280*960)+sub[960*576]+1Ref.+4Play 4ch 1.3MP IP Camera | ||
4×(1920*1080)+sub[960*576]+4Ref.+1Play 4ch 2.0MP IP Camera | ||
1×(1920*1080)+sub[960*576]+4Ref.+1Play 1ch 2.0MP IP Camera | ||
Audio Input |
4ch network audio input |
|
Video Output |
1ch VGA+1ch HDMI |
|
Audio Output |
1ch RCA Output |
|
Network Port |
5 RJ45, 100M LAN port, data transferring and power supply both by network cable |
|
USB Port |
3 USB 2.0 ports |
|
Wireless Port |
3G,WIFI |
|
HDD |
HDD Port |
1 SATA HDD Port |
MAX Capacity |
Each port supports MAX 4TB HDD |
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
Power Supply |
DC48V 2A |
|
Power Consumption |
≤70W(without HDD) |
|
Working Temperature |
-10℃~+55℃ |
|
Working Humidity |
10%-90% |
|
Dimension |
Equipment:260mm×220mm×43mm, Packing:355mm×255mm×88.5mm |
|
Weight(without HDD) |
N.W.:1.5Kg;With packing:2.4Kg |
|
Outside Carton |
10 pcs/carton. 525mm×455mm×365mm; Weight:26 Kg |
|
Installation Way |
Desktop Installation |
|
