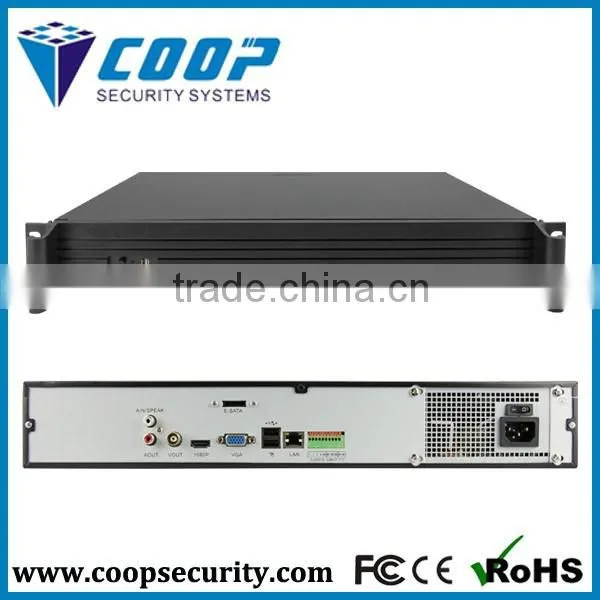

NVR 25/36 CH 5MP/3MP/1080P p2p Cloud 1.5U 4HDD CCTV System NVR Set Made In China
Model Number |
DV8025 |
DV8036 |
|
Operating System |
Embedded LINUX operating system |
||
Image Code Contrlo |
Image code quality adjustable, variable bitstream optional. |
||
Dual Stream |
Each channel can set main stream and sub stream. |
||
Video Standard |
1080P(1920×1080)30fps/960P(1280×960)/720P(1280×720)30fps |
||
Monitoring Image Quality |
1080P(1920×1080)/960P(1280×960)/720P(1280×720) |
||
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support) |
||
Recording Playback Quality |
1/4/9/16ch synchronous playback |
||
Region Cover |
Every channel can set 4 cover regions (IPC Support) |
||
Recording Mode |
Support manual, auto, motion detecion, alarm trigger record mode. |
||
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, nerwork storage and backup. |
||
Operation Way |
Mouse |
||
Local Login |
User name and password. |
||
Recording Storage |
Local HDD, nerwork |
||
External Ports |
Video Input |
25×(1280*960)+sub[720*576]+4Ref.+9Play |
36×(1280*960)+sub[960*576]+4Ref.+9Play |
16×1920*1080)+sub[720*576]+4Ref.+4Play |
25×(1920*1080)+sub[960*576]+4Ref.+4Play |
||
8×(2048*1536)+sub[960*576]+4Ref.+4Play |
16×(2048*1536)+sub[960*576]+4Ref.+4Play |
||
4×(2592*1944)+sub[960*576]+4Ref.+4Play |
8×(2048*1536)+sub[960*576]+4Ref.+4Play |
||
4×(2592*1944)+sub[960*576]+4Ref.+4Play |
|||
Audio Input |
25/16ch network audion input |
36/25ch network audion input |
|
Video Output |
1ch VGA+1ch HDMI |
||
Network Port |
1 RJ45, 10M/100M/1000M |
||
USB Port |
1×USB 3.0 ports, 2×USB 2.0 ports |
||
Alarm Input |
4ch |
||
Alarm Output |
1ch |
||
Wireless Port |
WIFI |
||
HDD |
HDD Port |
4×SATA + 1×E-SATA HDD Port |
|
MAX Capacity |
Each port supports MAX 4TB HDD |
||
Mobile Surveillance |
Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
||
Power Supply |
ATX110-220V 250W 50-60Hz |
||
Power Consumption |
≤25W(without HDD) |
||
Working Temperature |
-10℃~+55℃ |
||
Working Humidity |
10%-90% |
||
Dimension |
Equipment: 440mm×356mm×68.5mm, Packing: 460mm×135mm×560 mm |
||
Weight(without HDD) |
N.W.: 5.7k; With Package: 6.9Kg |
||
Outside Carton |
4 pcs/carton. 480mm×560mm×575mm; Weight: 30Kg |
||
Installation Way |
Desktop Installation |
||
Main Functions:
1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient forthe project construction;
2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parametersare more easy and convenient;
3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomlyunder preview and playback modes;
4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
5. The recording playback is shown by time bar and different color represents different recording type. It is veryfast and easy to find check the recording;
6. Recording backup can be accurate to second. Any time period of backup is available;
7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures canbe viewed directly;
8. With 3G, WIFI wireless connection functions;
9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;
10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD
All of items will be careful packaged before shipping, As below photo showed :
Shipping Way:
by sea /air / express
COOPSECURITY is professional security equipment supplier committe to provide secuiry surveillance goods.
There are wide range of security camera to cover everything. From home design camera with night vision and outdoor project bullet ip ptz and HD resolution camera. Also the related accessoires. All of product were technological updated contantly.
We are hoping to offer you the eco device that low power comsuption, good reliability long life and secure enviroment.
Fair
Certification if you need CE ROHS
