CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF

CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF thumbnail-1
CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF photo-1
US$ 50 - 78 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Coopsecurity
Model Number:
DV5004A HD NVR
Contact Supplier Request Quote Chat Now
Coop Security Technology(Quanzhou)Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Coopsecurity
Model Number DV5004A HD NVR

CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF



CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF




Product Description





Feature:

1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient forthe project construction;

2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parametersare more easy and convenient;

3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomlyunder preview and playback modes;

4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;

5. The recording playback is shown by time bar and different color represents different recording type. It is veryfast and easy to find check the recording;

6. Recording backup can be accurate to second. Any time period of backup is available;

7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures canbe viewed directly;

8. With 3G, WIFI wireless connection functions;

9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;

10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD





Model Number

DV5004

DV5008

DV5004A

DV5009A

DV5016A

Operating System

Embedded LINUX operating system

Image Code Contrlo

Image code quality adjustable, variable bitstream optional.

Dual Stream

Each channel can set main stream and sub stream.

Video Standard

1080P(1920×1080)30fps/960P(1280×960)/720P(1280×720)30fps

Monitoring Image Quality

1080P(1920×1080)/960P(1280×960)/720P(1280×720)

Image Motion Detection

Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)

Recording Playback Quality

4ch 720P/960P playback
4ch 720/960Pmode;
1ch 1080P playback in
4ch 1080P mode

4ch playback in
8ch 720 mode;
1ch 1080P playback in
8ch 1080P mode

4ch playback in 5MP/3MP/1080P mode

Any 9ch 960P playback,
4ch 5MP/3MP/1080P
playback simultaneously

Any 9ch 960P playback,
4ch 5MP/3MP/1080P
playback simultaneously

Region Cover

Every channel can set 4 cover regions (IPC Support)

Recording Mode

Support manual, auto, motion detecion, alarm trigger record mode.

Backup Way

Support U disk, USB mobile HDD, USB DVD-RW, nerwork storage and backup.

Operation Way

Mouse

Local Login

User name and password.

Recording Storage

Local HDD, nerwork

External Ports

Video Input

4×(1280*720)
+sub[960*576]
+4Ref.+4Play
4ch 1.0MP IP Camrea

8×(1280*960)
+sub[640*480]
+4Ref.+1Play
8ch 1.0MP IP Camera

4×(2592*1944)+sub
[960*576]+4Ref.+4Play 4ch 5.0MP IP Camera

9×(1920*1080)
+sub[960*576]
+4Ref.+4Play
9ch 2.0MP IP Camera

16×(1920*1080)
+sub[960*576]
+4Ref.+4Play
16ch 2.0MP IP Camera

4×(1280*960)
+sub[960*576]
+1Ref.+4Play
4ch 1.3MP IP Camrea

8×(1280*1080)
+sub[640*480]
+2Ref.+1Play
8ch 2.0MP IP Camera

4×(2048*1536)+sub
[960*576]+4Ref.+4Play 4ch 3.0MP IP Camera

9×(1280*960)
+sub[960*576]
+4Ref.+9Play
9ch 1.3MP IP Camera

16×(1280*960)
+sub[960*576]
+4Ref.+9Play
16ch 1.3MP IP Camera

4×(1920*1080)
+sub[960*576]
+4Ref.+1Play
4ch 2.0MP IP Camrea

8×(720*576)
+sub[352*288]
+2Ref.+8Play
8ch D1 IP Camera

4×(1920*1080)+sub
[960*576]+4Ref.+4Play 4ch 2.0MP IP Camera

9×(2048*1536)+sub
[960*576]+4Ref.+4Play 9ch 3.0MP IP Camera

9×(2048*1536)+sub
[960*576]+4Ref.+4Play 9ch 3.0MP IP Camera

1×(1920*1080)
+sub[960*576]
+4Ref.+1Play
1ch 2.0MP IP Camrea

8×(1280*720)
+sub[640*360]
+1Ref.+4Play
8ch 1.0MP IP Camrea

4×(2592*1944)+sub
[960*576]+4Ref.+4Play 4ch 5.0MP IP Camera

4×(2592*1944)+sub
[960*576]+4Ref.+4Play 4ch 5.0MP IP Camera

4×(720*576)
+sub[352*288]
+4Ref.+4Play
4ch D1 IP Camera

8×(1280*960)
+sub[720*576]
+2Ref.+1Play
8ch 1.3MP IP Camrea

8×(1920*1080)
+sub[720*576]
+1Ref.+1Play
8ch 2.0MP IP Camrea

Audio Input

4ch network audion input

8ch network audion input

4ch network audion input

9/4ch network audion input

16/9ch network audion input

Video Output

1ch VGA+1ch HDMI

Network Port

1 RJ45, 10M/100M/1000M

USB Port

2×USB 2.0 ports

Wireless Port

WIFI

HDD

HDD Port

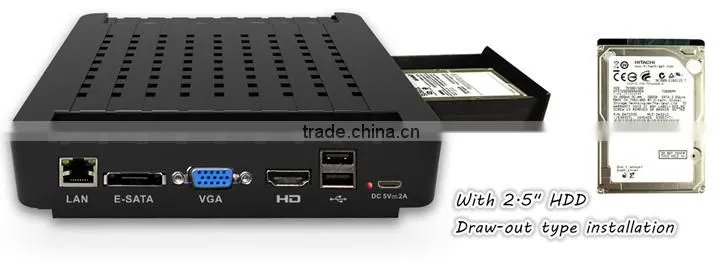

1×2.5" HDD + 1 E-SATA HDD Port

MAX Capacity

Each port supports MAX 4TB HDD

Mobile Surveillance

Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

Power Supply

5V2A

Power Consumption

≤10W(without HDD)

Working Temperature

-10℃~+55℃

Working Humidity

10%-90%

Dimension

Equipment: 162mm×162mm×35mm, Packing: 210mm×210mm×60mm

Weight(without HDD)

N.W.: 280g; With Package:700g

Outside Carton

20 pcs/carton. 215mm×215mm×610mm; Weight:7Kg

Installation Way

Desktop Installation



CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF




 CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF



 CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF


Packaging & Shipping

CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF

 CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF

payment

CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF











Company Information

COOPSECURITY is professional security equipment supplier committe to provide secuiry surveillance goods.

There are wide range of security camera to cover everything. From home design camera with night vision and outdoor project bullet ip ptz and HD resolution camera. Also the related accessoires. All of product were technological updated contantly.

We are hoping to offer you the eco device that low power comsuption, good reliability long life and secure enviroment.

CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF

Fair

CCTV Security System HD 3G IP Camera NVR MINI Type 4 CH New Product Wifi NVR PTZ ONVIF

Certification if you need CE ROHS
