Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > H.264 36Channel Support 9 HDD Port 2U Megapixel HD NVR

H.264 36Channel Support 9 HDD Port 2U Megapixel HD NVR

Name: H.264 36Channel Support 9 HDD Port 2U Megapixel HD NVR
Brand: COOP
SKU: 103887995

H.264 36Channel Support 9 HDD Port 2U Megapixel HD NVR thumbnail-1

H.264 36Channel Support 9 HDD Port 2U Megapixel HD NVR thumbnail-2

H.264 36Channel Support 9 HDD Port 2U Megapixel HD NVR photo-1

H.264 36Channel Support 9 HDD Port 2U Megapixel HD NVR photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

COOP

Model Number:

DV9036

Contact Supplier Request Quote Chat Now

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

High Definition NVR will be deliveried IN Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name COOP

Model Number DV9036

2U 1080P High Definition 9HDD Port Network Video Recorder

Model NO.:DV9036

Product Description

Advantages:

1. Elegant appearance, dull polishing, Acrylic lens cover and black color made this unit unique and fashion.

2. support Onvif2.0 protocol, Can connect third party IP cameras;

3. Free software with each NVR for front small-scale IPC management, Professional client point centralize the management for multi-NVR realize the middle-scale network system management and mix.

4. With manual record, full day record, timing record, motion detect record, alarming record.

5. 4ch playback synchronously for Mega pixel 720P high definition network video preview, store and playback.

6. With function for search, playback and copy function according to event for manage huge record data.

7. The function menu is with figure line interface, complete content, clear menu and simple instruction.

8. Mouse pause for option, any image section for zooming, enlarge preview image and playback image.

9. With WIFI,3G connect function for convenient wireless visit.

10. U-disk,mobile HDD for quick backup record data,and E-SATA high speed for backup.

Specification:

F	Model No.	DV9036
General	IPC Channel	36
	Image quality	36 channel 720p 16 channel 1080p
	Video Resolution	720P(1280×720) or1080P(1920×1080) 1~30 frame/second optional
	Recording Mode	Support Manual record, timing record, motion detect record, alarming record
	Playback quality	Support 4 channel 720p(1280x 720)playback synchronous
	Recording Save	Local hard disk record, support different big size hard disk, 2TB, 3TB, 4TB etc.
	Backup Type	Support hard disk, U hard disk, Moved hard disk, USB writer, network storage and backup
IE	IE browser	Support LAN management, client management and remote IE visit
	Dual stream	Alone Setting by each channel
	Mobile Phone Surveillance	Support (iPhone,Windows Mobile,BlackBerry,Symbian,Android) operation system
	Wireless	Support 3G and WIFI via USB port
Special	Compatibility	Can connect IP camera, IP speed dome camera and DVS. support Onvif2.0 protocol
	Mouse Zoom	Click any area and zoom in or zoom out on the image by mouse
	Motion Detection	Each image can setting more area, Sensibility can setting by 6 grade
	Search Way	Support search, playback and backup by event
Video Quality	Video Output	Standard VGA HDMI type
	Video compression	H.264 and MPEG-4 AVC
	Video code control	Image code quality adjustable, variable & certain stream optional
Audio Quality	Audio Compression	Standard G.711
	Audio Input	4 channel audio input
	Audio Output	1 channel RCA
	Audio Talk	Support 2 way audio talk back
Alarm	Alarm Input	4 Channel
	Alar Output	1 Channel

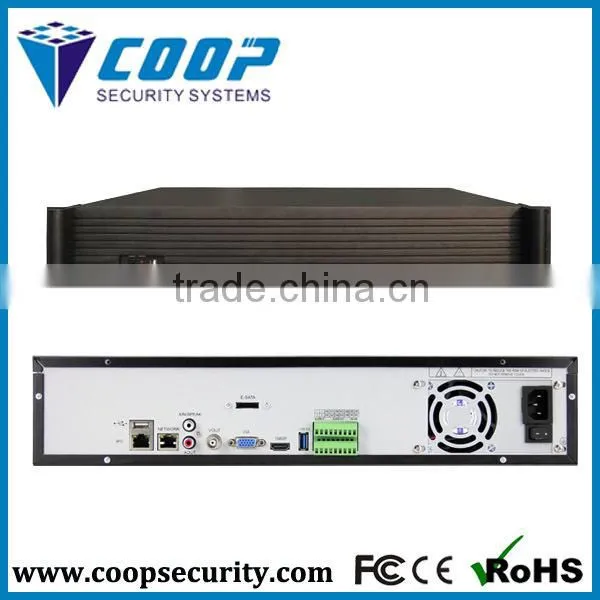

External Port	Video Output	1ch VGA,1ch HDMI
	IP	1pc RJ45 Ethernet port(10M/100M/1000M)
	RS485	Full duplex RS485, Support 19 PTZ protocol
	USB Port	3 pcs USB2.0 standard port( Front and Back)
	E-SATA	2 pcs external ATA port
	Disk Port	8 Channel SATA port (HDD:2TB,3TB,4TB)
Power	Power Parameter	Voltage:AC110~240V Type:ATX Output Power:300W Frequency:50-60 Hz
	Consumption	≤40W without hard disk
Other Standard	Working Temperature	-10 °C~+ 55 °C
	Working Humidity	10%-90%
	Weight(without Disk)	(net) 6.58Kg, (gross) 9.50Kg

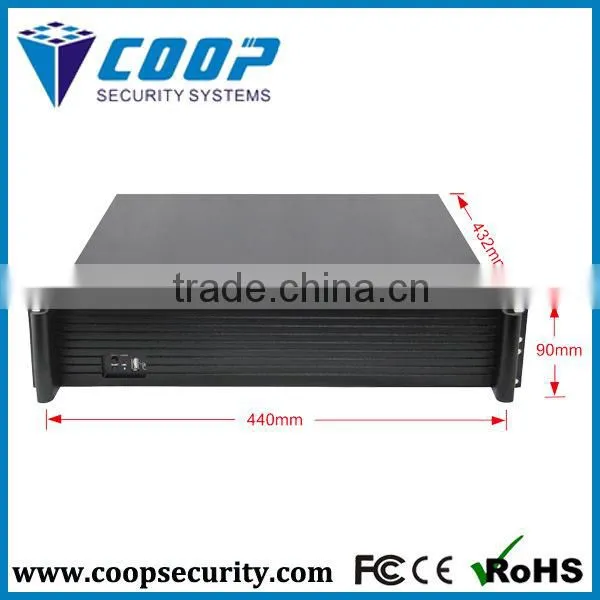

	NVR Size	(NVR) 440mm×450mm×90mm, (Packing) 539mm× 530mm×225mm
	Carton Size	2 sets/CTN, (2pcs/CTN Weight) 20.45Kg, (size) 555mm×545mm×470mm
	Installing Type	Table mode,equipment cabinet mode
