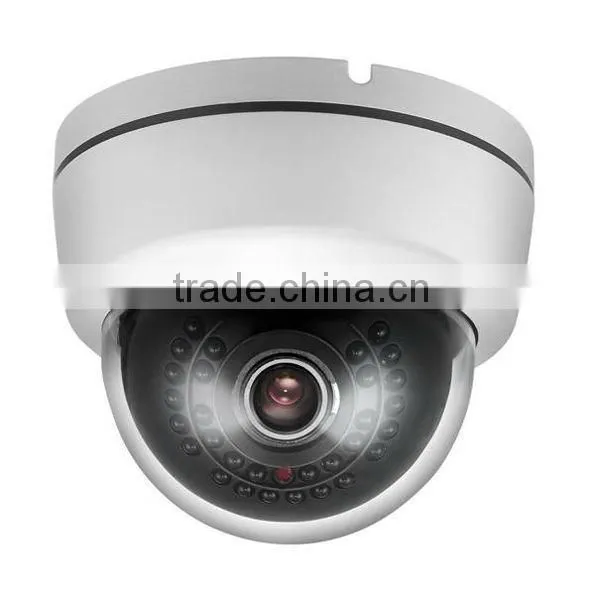

HD-SDI CCTV Camera Professional 1080P 30IR LED 4-9mm Lens CCTV

Name: HD-SDI CCTV Camera Professional 1080P 30IR LED 4-9mm Lens CCTV
Brand: COOP
SKU: 103885239
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

COOP

Model Number:

HD-20DH49-SDI

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name COOP

Model Number HD-20DH49-SDI

Type Digital Camera

Style Dome Camera

Sensor Other, CMOS, 1/2.5 inch

Technology Infrared

HD-SDI CCTV Camera Professional 1080P 30IR LED 4-9mm Lens CCTV

Features:

1080P 2.0 Megapixel HD-SDI, CMOS Mega image sensor

Support D-WDR,2D-DNR, IR-CUT FILTER

OSD control, motion detection, digital zoom

IR LED: φ5 X 30PCS black color IR LED, IR distance 30M

2.8-12mm 2.0 megapixel lens

3bracket water-proof IR camera

Data Sheet:

Power Supply	Power adapter: 12V(min 0.5A)
Image Resolution	1080P(1920×1080)30Hz/25Hz
Sensor Specifications	1/2.5 inch
Pixel Size	2.2um x 2.2um
Color System	Ycbcr 16bit
Video Output	HD-SDI (SMPTE274M standard)
Video Output Interface	BNC
Shooting Speed	30fps/25fps
Min. illumination	0.1LUX (single-frame and color mode)
OSD	Support multiple languages (up to 30 andflexible customize)
Scene Mode	General/Highlight
Infrared Switch	Auto/Color/Gray
HDR	On/Off
Analog Gain	On/Off
2D DNR	On/Off
Automatic ExposureResponse Speed	8 frames
AWB	Auto/Mode 1/Mode 2/Mode 3/Off
CCM	On/Off
DPC	On/Off
Brightness/Contrast/ Saturation/Hue	0~255 adjustable
Self Adaption	On/Off
Auto Iris	Selectable
Transmission Distance (Non-Relay)	Min 300m (the quality of coaxial cable is optional)
Power Consumption	Max 2W (with 12V power supply, IR off)
IP Grade	IP65 (according to different products)
Working Environment	Temperature: - 10°C ~ + 50°C Humidity: ≤ 90%
