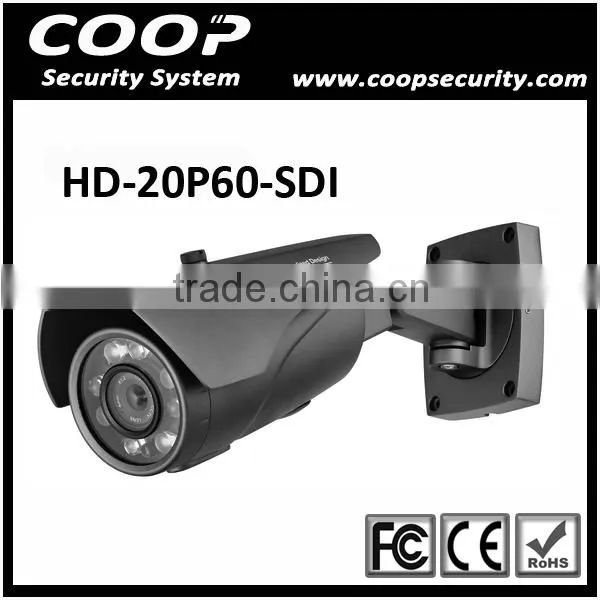

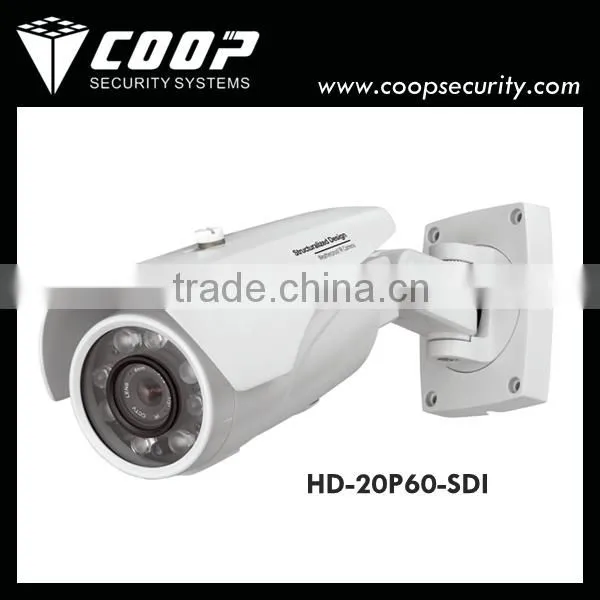

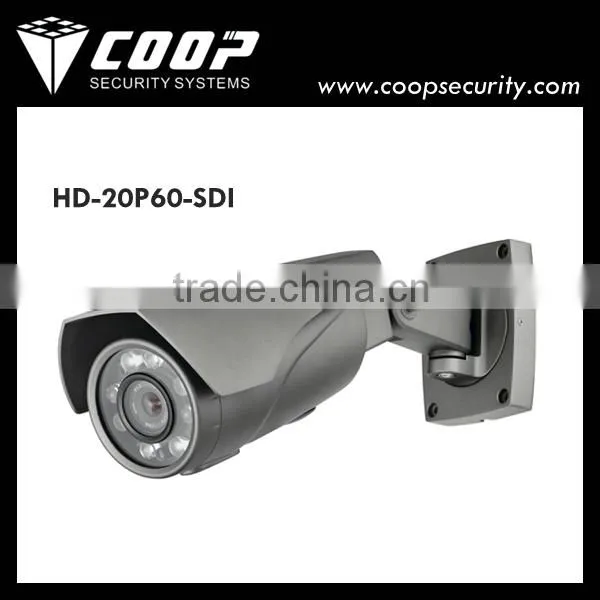

2 Megapixel HD SDI Camera 1080P Laser IR LED Varifocal
SDI Camera 1080P Features
- 1080P 2.0 Megapixel HD-SDI, CMOS Mega image sensor
- Support D-WDR,2D-DNR, IR-CUT FILTER
- OSD control, motion detection, digital zoom
- IR LED: 8PCS laser IR LEDs, IR distance 60M
- 9-22mm 2.0 megapixel lens
- 3 bracket water-proof IR camera
1080P high perfermance 1/2.5" Progressive Aptina CMOS image sensor.
Standard HD-SDI high resolution interface(meet SMPIE 292M standard).
Standard HD-SDI high resolution video output,progressive scan.
Original video without compress, real time output.
Support IR complement, IR-CUT ON/OFF switch, OSD control.
(D-WDR, AGC, 2D-DNR,move detection, digital zoom, DOT Compensate, ATR, Brightness and sharpness adjustable, Day&Night mode).
Low power consumption, DWS double glass, Avoid IR diffusion.
Internal cable bracket, Constant current protecion IR LEDs.
IR-CUT mega pixels lens, Precise focus, DC12V Power supply.
Multi-language optional (English, Spanish, Portuguese, German, French, Russian, Thai, Korean, Japanese, Frasi, Polish).
SDI Camera 1080P Data Sheet
Power Supply |
Power adapter: 12V(min 0.5A) |
Image Resolution |
1080P(1920×1080)30Hz/25Hz |
Sensor Specifications |
1/2.5 inch |
Pixel Size |
2.2um x 2.2um |
Color System |
Ycbcr 16bit |
Video Output |
HD-SDI (SMPTE274M standard) |
Video Output Interface |
BNC |
Shooting Speed |
30fps/25fps |
Min. illumination |
0.1LUX (single-frame and color mode) |
OSD |
Support multiple languages (up to 30 andflexible customize) |
Scene Mode |
General/Highlight |
Infrared Switch |
Auto/Color/Gray |
HDR |
On/Off |
Analog Gain |
On/Off |
2D DNR |
On/Off |
Automatic ExposureResponse Speed |
8 frames |
AWB |
Auto/Mode 1/Mode 2/Mode 3/Off |
CCM |
On/Off |
DPC |
On/Off |
|
Brightness/Contrast/ Saturation/Hue |
0~255 adjustable |
Self Adaption |
On/Off |
Auto Iris |
Selectable |
Transmission Distance (Non-Relay) |
Min 300m (the quality of coaxial cable is optional) |
Power Consumption |
Max 2W (with 12V power supply, IR off) |
IP Grade |
IP65 (according to different products) |
Working Environment |
Temperature: - 10°C ~ + 50°C Humidity: ≤ 90% |
