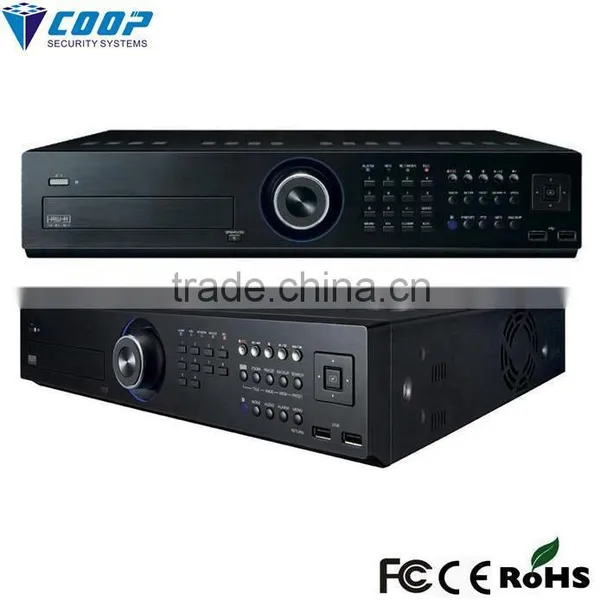

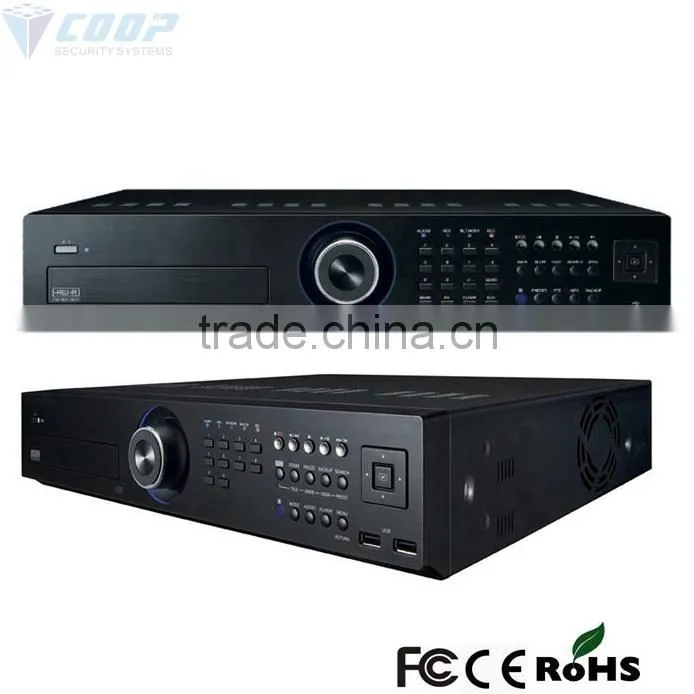

High Definition HDMI 720P 30FPS 8CH HD SDI DVR

High Definition HDMI 720P 30FPS 8CH HD SDI DVR thumbnail-1
High Definition HDMI 720P 30FPS 8CH HD SDI DVR photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
COOP Security
Model Number:
HP-4008H-SDI
Contact Supplier Request Quote Chat Now
Coop Security Technology(Quanzhou)Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name COOP Security
Model Number HP-4008H-SDI

Specifications

HD 8CH HD SDI DVR
Supports SATA HDD:4*4TB
8CH 720P@30fps (SMPTE 292)
HDMI, Cloud Server
3G, WIFI (Optional)


Product Description

  High Definition HDMI 720P 30FPS 16CH HD SDI DVR

1) Video: 8CH 720P HD-SDI Input.
2) Audio: 8 CH Audio Input, 1 CH Audio output;
3) Support Record Resolution : 8CH720P@30fps (SMPTE 292) ;
4) Playback : 2;
5) Support SATA HDD: 8*4TB
6) Accessories: Mouse, USB×2, Web, BNC, VGA, HDMI, Alarm*8;
7) Size: 430*410*87mm
8) Function: Support HDMI, Cloud Server; 3G, WIFI (Optional) ;
9) Remote search, playback, download, update , reboot, shutdown , alarm, PTZ control, Record, Capture, mobile phone monitoring.

Technical Spec.



Model

HP-4004H-SDI

HP-4008H-SDI

HP-4016H-SDI

HP-4016HA-SDI

System

Main processer



Industry level embedded microprocessor

Operation system

Embedded LINUX operation system

System resource

synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation

Interface

Operation interface

16 bit true color graphical menu interface, mouse operation supportive

display

1/4

1/4/8/9

1/4/8/9/16

Video

Video standard

PAL;NTSC

Image code

H.264(High Profile)

Surveillance image quality

Monitor: 1080p/D1;VGA:  HDMI:

Playback quality

1080P, 720P, D1/HD1/CIF/QCIF

Coding capacity

4CH 1080P Real time

8CH 720P Real time

16CH 720P Real time

encoding capacity

1CH 1080P Real time

1CH 720P Real time

4CH 720P Real time

Multi mode input

Support HD input, 4ch 1080p

Support HD input, max.8ch 720P

Support HD input, max.16ch 720P or 4ch 1080p

Motion detection

Area: 192(22 * 18) zone, Sensitivity optional

Audio

Audio compression

G711A

Talk-back

Support

Recording

And

Playback

Recording mode

manual >alarm>motion detect>timing

Local playback

Single channel playback,  All channels playback

Recording look-up mode

Time searching, calendar searching, affair searching, channel searching, information searching

Storage

And

Backup

Hard disk capability for each channel

Video: CIF 4~5G/day*ch, D1: 16~20G/day*ch 960H: 9~42G/day*ch 720P: 10G~42G/day*ch;1080P: 20G~80G/day*ch audio: 691.2M/day*ch

Recording storage

Hard disk, network

Backup mode

Network, USB, SATA, SATA DVD-RW

Video input

4ch HD-SDI

8 CH HD-SDI

16HD-SDI

Video output

2ch BNC(1.0Vp-p,75Ω)( 1ch Spot), 1ch VGA, 1ch HDMI

Audio Input

4CH RCA

(200-2800mV,30KΩ)

8CH RCA

(200-2800mV,30KΩ)

16CH RCA

(200-2800mV,30KΩ)

Audio output

1ch RCA(200-3000mV,5KΩ)

Alarm input

16ch

Alarm output

4ch

Network

RJ45 10M/100M adoptive Ethernet network port

PTZ control

1 RS485, 1 RS232;

USB

2pcs USB

HDD

8pcs SATA (each for Max.3TB)

8pcs SATA  (each for Max.3TB)

4pcs SATA (each for Max.3TB)

8pcs SATA (each for Max.3TB)

Wireless

3G, WIFI

Others

Power

ATX220V/100V

Power consumption

<15W (not including HDD)

Work temperure

0°C-+55°C

Work humidity

10%-90%

Air pressure

86kpa-106kpa

Size

430mm*400mm*90mm

Weight

10KG

High Definition HDMI 720P 30FPS 8CH HD SDI DVR


Packaging & Shipping

Usually  1pcs to 1 box, 2 boxes to 1 Carton, or as your requirement.

Shipping by Express for small order, by Air or by sea for large order.

High Definition HDMI 720P 30FPS 8CH HD SDI DVRHigh Definition HDMI 720P 30FPS 8CH HD SDI DVR




Our Services



ABOUT US:

* We usually  accept payment by T/T ( bank transfer).

* Packages will be shipped after we receive your payment.

* Welcome OEM & ODM order,MOQ for OEM is 50pcs/model.

* 2 Years of warranty for CCTV cameras & DVRs, 1 year for PTZ Cameras.

* More details, please contact our sales for infomation.
