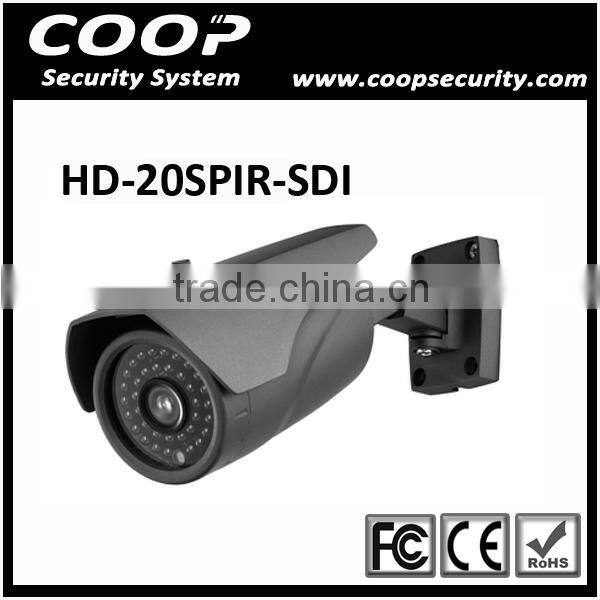

High Resolution Waterproof Outdoor Security HD-SDI Camera CCTV 1080P IR Bullet HD SDI Camera HD20P60-SDI
1080P IR Bullet HD SDI Camera Features and Benefits:
- Adopt Panasonic 34041+ NVP2421(DSP) 1080P 1920+1080(30FPS)2Mega Pixels;
- With Chinese/English OSD control; RS485; Remote control;
- With BNC coaxical cable control; multi-color of background optional;
- 2D/3D DVR, Electric-shutter (Manual /Auto); IR-CUT;
- Color:0.5Lux F1.2, B/W:0.05Lux F1.2; Video output:HD- SDI BNC;
- DWS avoiding IR diffusion, Hiddem cable bracket; IP67 waterproof;
- Infrared focus correction-asphercial zoom lens; Focusing accurate, clear image;
- IR light strength adjusted; with analog Video Test port;
- Std: 9-22mm ; IR distance60M; Power Supply: DC12V
1080P IR Bullet HD SDI Camera Specification:
| General | |
| Model | HD-20P60-SDI |
| Camera Type | HD-SDI Camera |
| CMOS Type | Adopt Panasonic 34041+NVP2421(DSP) |
| Lens | 4-9mm 2Mega Pixels |
| IR Distance | 60M |
| Image Resolution | 1080P 1920+1080(30FPS) |
| Power Supply | Power adapter: 12V(min 0.5A) |
| Image Resolution | 1080P(1920×1080)30Hz/25Hz |
| Sensor Specifications | 1/2.5 inch |
| Pixel Size | 2.2um x 2.2um |
| Color System | Ycbcr 16bit |
| Video Output | HD-SDI (SMPTE274M standard) |
| Video Output Interface | BNC |
| Shooting Speed | 30fps/25fps |
| Min. illumination | 0.1LUX (single-frame and color mode) |
| OSD | Support multiple languages (up to 30 and flexible customize) |
| Scene Mode | General/Highlight |
| Infrared Switch | Auto/Color/Gray |
| HDR | On/Off |
| Analog Gain | On/Off |
| 2D DNR | On/Off |
| Automatic Exposure Response Speed | 8 frames |
| AWB | Auto/Mode 1/Mode 2/Mode 3/Off |
| CCM | On/Off |
| DPC | On/Off |
|
Brightness/Contrast/ Saturation/Hue |
0~255 adjustable |
| Self Adaption | On/Off |
| Auto Iris | Selectable |
| Transmission Distance (Non-Relay) | Min 300m (the quality of coaxial cable is optional) |
| Power Consumption | Max 2W (with 12V power supply, IR off) |
| Wateproof | IP66 |
| Working Environment | Temperature: - 10°C ~ + 50°C Humidity: ≤ 90% |

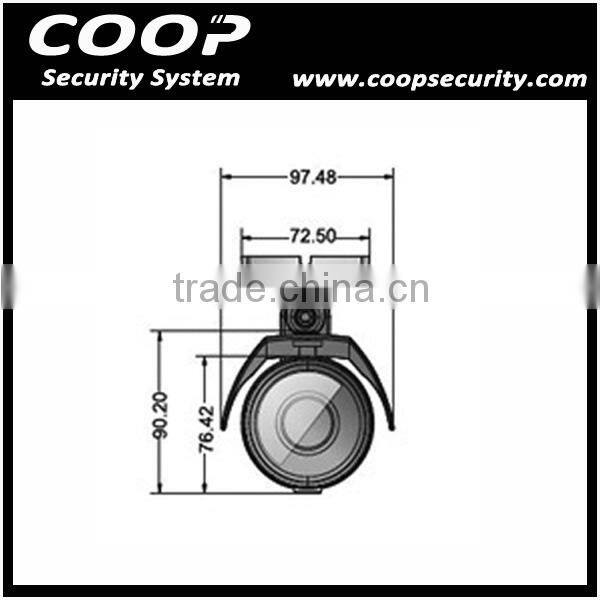

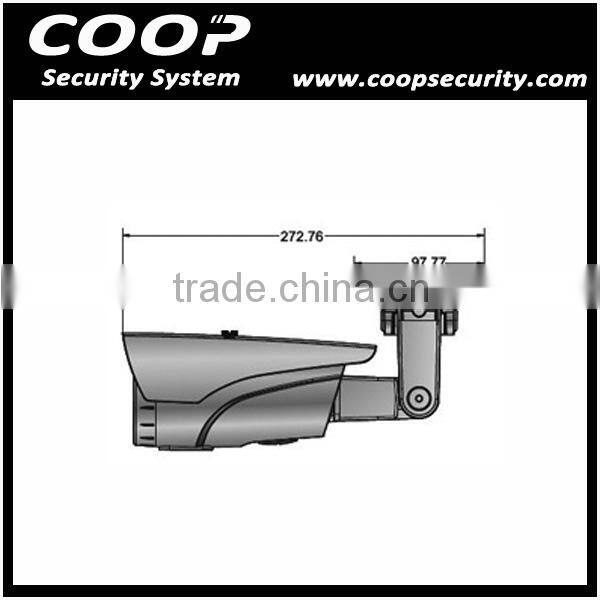

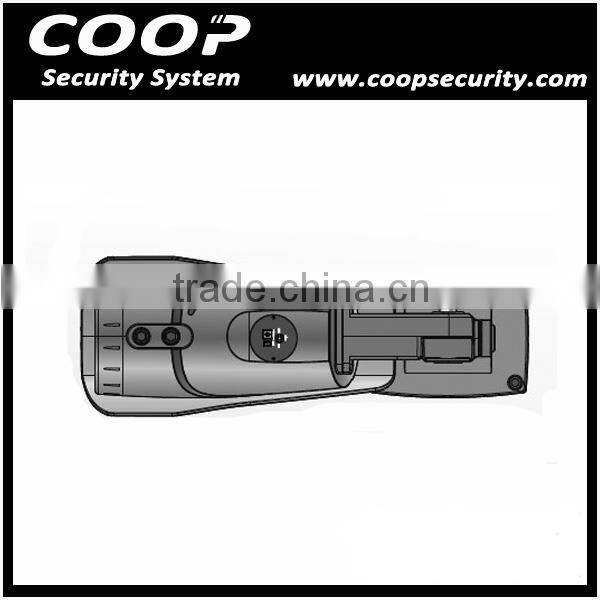

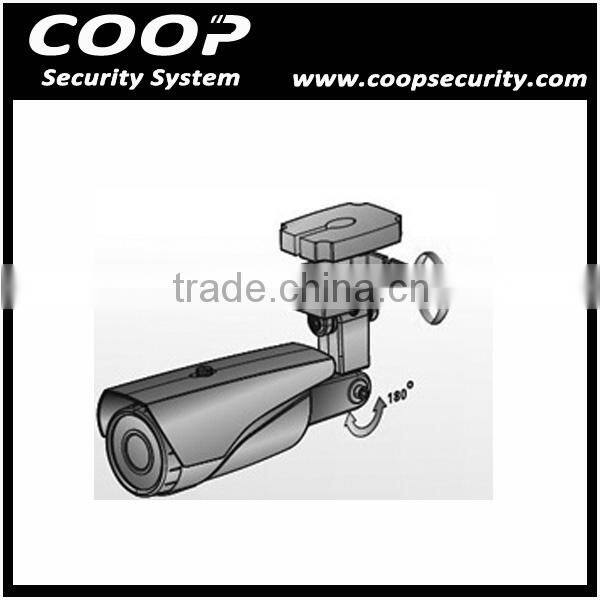

1080P IR Bullet HD SDI Camera Dimensions:
