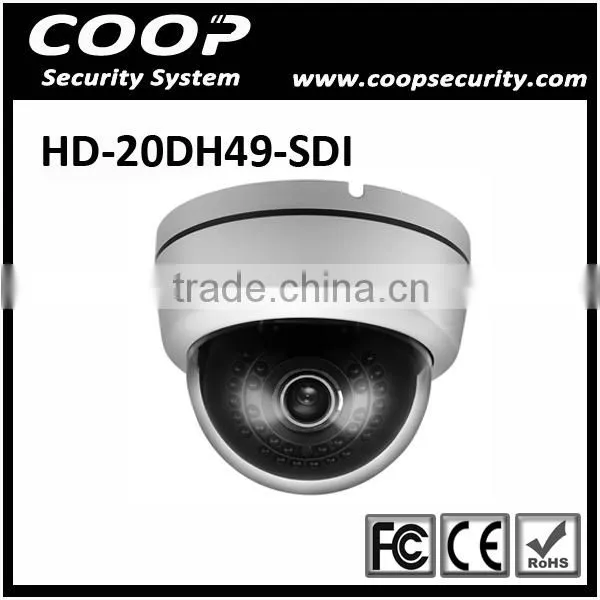

Panasonic HD SDI Security CCTV Camera System 2MP 1080P Dome HD SDI Camera HD20DH49-SDI
2MP 1080P Dome HD SDI Camera Features and Benefits:
- Adopt Panasonic 34041+ NVP2421(DSP) 1080P 1920+1080(30FPS)2Mega Pixels;
- With Chinese/English OSD control; RS485; Remote control;
- With BNC coaxical cable control; multi-color of background optional;
- 2D/3D DVR, Electric-shutter (Manual /Auto); IR-CUT;
- Color:0.5Lux F1.2, B/W: 0.05Lux F1.2; Video output:HD- SDI BNC;
- DWS avoiding IR diffusion, Hiddem cable bracket.
- Infrared focus correction-asphercial zoom lens; Focusing accurate, clear image;
- IR light strength adjusted; with analog Video Test port;
- Std:4-9mm ; IR distance:30M; Power Supply: DC12V
2MP 1080P Dome HD SDI Camera Specification:
| General | |
| Model | HD-20DH49-SDI |
| Camera Type | HD-SDI Camera |
| CMOS Type | Adopt Panasonic 34041+NVP2421(DSP) |
| Lens | 4-9mm 2Mega Pixels |
| IR Distance | 30M |
| Image Resolution | 1080P 1920+1080(30FPS) |
| Power Supply | Power adapter: 12V(min 0.5A) |
| Image Resolution | 1080P(1920×1080)30Hz/25Hz |
| Sensor Specifications | 1/2.5 inch |
| Pixel Size | 2.2um x 2.2um |
| Color System | Ycbcr 16bit |
| Video Output | HD-SDI (SMPTE274M standard) |
| Video Output Interface | BNC |
| Shooting Speed | 30fps/25fps |
| Min. illumination | 0.1LUX (single-frame and color mode) |
| OSD | Support multiple languages (up to 30 and flexible customize) |
| Scene Mode | General/Highlight |
| Infrared Switch | Auto/Color/Gray |
| HDR | On/Off |
| Analog Gain | On/Off |
| 2D DNR | On/Off |
| Automatic Exposure Response Speed | 8 frames |
| AWB | Auto/Mode 1/Mode 2/Mode 3/Off |
| CCM | On/Off |
| DPC | On/Off |
|
Brightness/Contrast/ Saturation/Hue |
0~255 adjustable |
| Self Adaption | On/Off |
| Auto Iris | Selectable |
| Transmission Distance (Non-Relay) | Min 300m (the quality of coaxial cable is optional) |
| Power Consumption | Max 2W (with 12V power supply, IR off) |
| Wateproof | IP66 |
| Working Environment | Temperature: - 10°C ~ + 50°C Humidity: ≤ 90% |

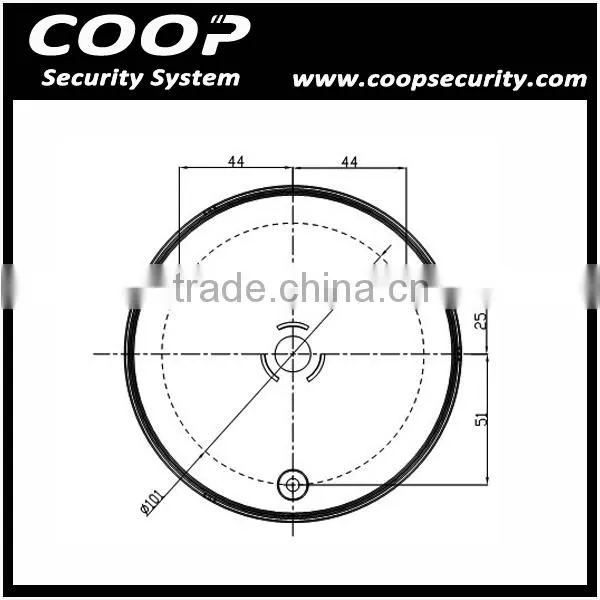

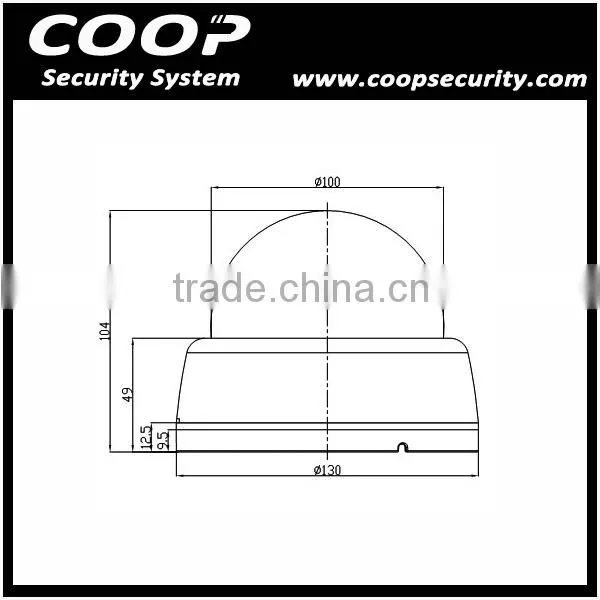

2MP 1080P Dome HD SDI Camera Dimensions:
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei Int'l Electronics Show
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS
Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
