Indoor and Outdoor IR Waterproof IP67 1080P 2 Megapixel HD SDI Zoom Camera

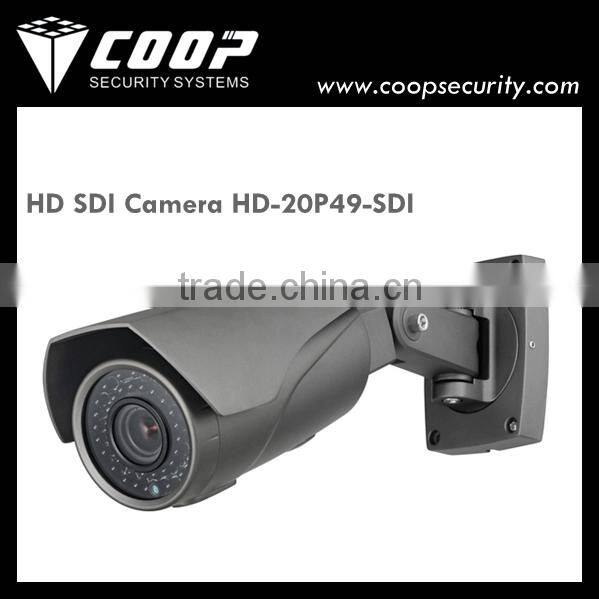

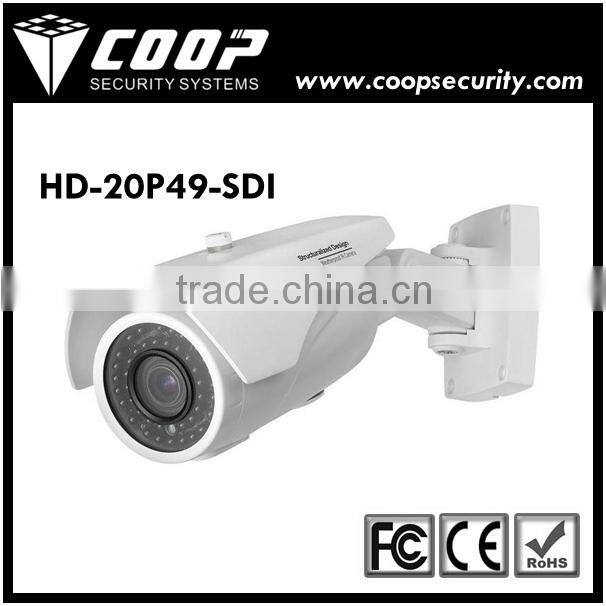

Model No.: HD-20P49-SDI
1080P 2.0 Megapixel HD-SDI, CMOS Mega image sensor
Support D-WDR,2D-DNR, IR-CUT FILTER
OSD control, motion detection, digital zoom
IR LED: φ 5X42pcs black color IR LEDs, IR distance 40M
Standard lens 9-22mm megapixel lens
3 bracket water-proof IR camera
Specifications of zoom camera
1080P high perfermance 1/2.5" Progressive Aptina CMOS image sensor,
standard HD-SDI high resolution interface(meet SMPIE 292M standard),
standard HD-SDI high resolution video output,
progressive scan,original video without compress, real time output,
support IR complement, IR-CUT ON/OFF switch, OSD control(D-WDR, AGC,
2D-DNR,move detection, digital zoom, DOT Compensate, ATR,
Brightness and sharpness adjustable,Day&Night mode), Low power consumption,
DWS double glass, avoid IR diffusion, Internal cable bracket,
Constant current protecion IR LEDs, IR-CUT mega pixels lens, Precise focus,
DC12V Power supply,
Multi-language optional(English, simple Chinese, Spanish,Portuguese, German, French, Russian, traditional Chinese,Thai,Korean, Japanese, Frasi, Polish)
Technical Specification of zoom camera
Power Supply |
Power adapter: 12V(min 0.5A) |
Image Resolution |
1080P(1920×1080)30Hz/25Hz |
Sensor Specifications |
1/2.5 inch |
Pixel Size |
2.2um x 2.2um |
Color System |
Ycbcr 16bit |
Video Output |
HD-SDI (SMPTE274M standard) |
Video Output Interface |
BNC |
Shooting Speed |
30fps/25fps |
Min. illumination |
0.1LUX (single-frame and color mode) |
OSD |
Support multiple languages (up to 30 andflexible customize) |
Scene Mode |
General/Highlight |
Infrared Switch |
Auto/Color/Gray |
HDR |
On/Off |
Analog Gain |
On/Off |
2D DNR |
On/Off |
Automatic ExposureResponse Speed |
8 frames |
AWB |
Auto/Mode 1/Mode 2/Mode 3/Off |
CCM |
On/Off |
DPC |
On/Off |
|
Brightness/Contrast/ Saturation/Hue |
0~255 adjustable |
Self Adaption |
On/Off |
Auto Iris |
Selectable |
Transmission Distance (Non-Relay) |
Min 300m (the quality of coaxial cable is optional) |
Power Consumption |
Max 2W (with 12V power supply, IR off) |
IP Grade |
IP65 (according to different products) |
Working Environment |
Temperature: - 10°C ~ + 50°C Humidity: ≤ 90% |
Packing: 1PCS to 1 Box. 14 Boxes to 1 Carton, or as your requirement.
Shipping: by Express (DHL /UPS / FedEx / TNT / EMS, etc.) for small order, by Air or by sea for large order.
1. Sample order is highly welcomed.
2 Your LOGO can be puttted on cameras.
2. Model Number can be customized.
3. Welcome OEM & ODM order, MOQ for OEM is 50pcs/model.
More Products
Q. What's the MOQ for this item?
A. MOQ 1pcs. Sample order is welcome.
Q. What's the payment term?
A. We accept payment by T/T bank transfer, PayPal, or WesterUnion.
Q. What's the delivery time?
A. Usually in 7-10 workdays after payment received.
Q. What's your detailed warranty policy?
A. Please kindly refer to our webiste for related information: /Warranty.html
