Home > Products > CO2 Laser Machine > 3d acrylic cutting 1325 laser engraving machine
3d acrylic cutting 1325 laser engraving machine
- 150 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
- DANAPR UV Laser Marking Machines F2010
- 1390 large laser engraving machine window cut paper PVC plating film laser cutting machine, cardboard paper engraving machine
- DANAPR UV Laser Marking Machines F2010 UV laser
- 3D Crystal Laser Engraving Machine
- DANAPR UV Laser Marking Machines F2005 UV laser
- DANAPR UV Laser Marking Machines
Product Details
Condition: | New | Laser Type: | CO2 | Engraving Area: | 1300*2500 |
Engraving Speed: | 0-60000mm/min | CNC or Not: | No | Cooling Mode: | Water Cooling |
Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plywood, Rubber, Stone, Wood | Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | China |
Brand Name: | Missile | Model Number: | 1325 | Dimension(L*W*H): | 1600*3100*1300 |
Certification: | CCC, CE, GS, ISO, SGS, UL | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
3d acrylic cutting 1325 laser engraving machine
FEATURE
1. Advanced DSP Digital Control technology .
2. Original Imported Straight Linear Guide Rail X. Y axis Makes the Machine Running on a high Speed and Precision.
3. Imported Reflected Lens and focus lens in the Optical System Can greatly Reduce the heat loss
4. High Quality CO2 Glass Sealed Laser tube Provides Strong Stable Laser beam mode and Longer Service Life.
5. The Laser tube adopts Compulsive Water Cooling System, Water Pump Can Control the temperature Automatically,
6.High Compatibility, Applicable for the Models Like PLT,BMP,DXF,DST,etc.
7. LEETRO Control Panel in English.
8.Equipped with Hydraulic protection,Exhaust dust and smoke device,the huff protection.
9. Optional Up & down adjustable worktable can Engrave and Cut Different Height Materials
Technical parameter :
Model | 1325 |
Working area | 1300*2500mm |
Laser type | Sealed CO2 laser tube 10.6um |
Laser power | 100/130/150/200W |
Cooling system | Water cooling |
Energy regulation | 0-100% |
Control system | LEETRO |
Drive system | Stepper motor and driver |
Engraving speed | 0-1000mm/s |
Cutting speed | 0-400mm/s |
Working area | AC220V/50Hz |
Positioning accuracy | ≤+0.01mm |
Min forming text | 1.5mm Chinese character, 1.0mm English word |
Total power | ≤1500W |
Processing side | 500*400mm |
Work table | Blade / Honeycomb |
Working environment | 0-45℃ |
Software supported format | PLT , DST , DXF , DXG , AI , LAS etc AutoCAD CorelDRAW outpot |

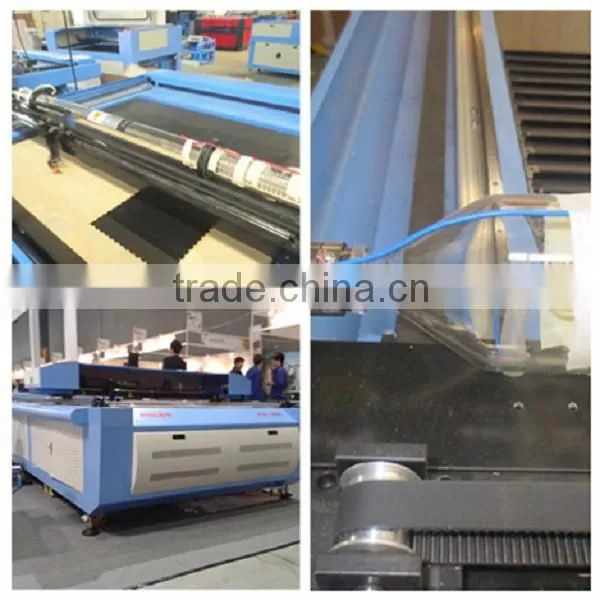

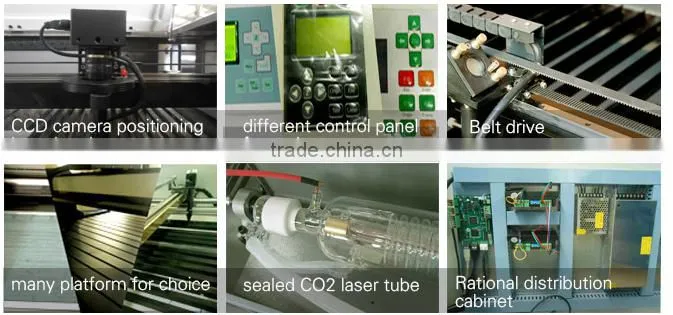

Detail parts
Application
The area of 1300*2500mm can completely satisfy the large clothing fabric , leather , wood , acrylic , paper and other industries to engraving and cutting .
Applicable materials : wood , organic glass , plastic , paper, leather , rubber and other non-metal materials .
Applicable industries : advertisement , arts and crafts , shoes, toys , computerized embroidery cutting , apparel ,model , buliding industry , packaging and paper industry .

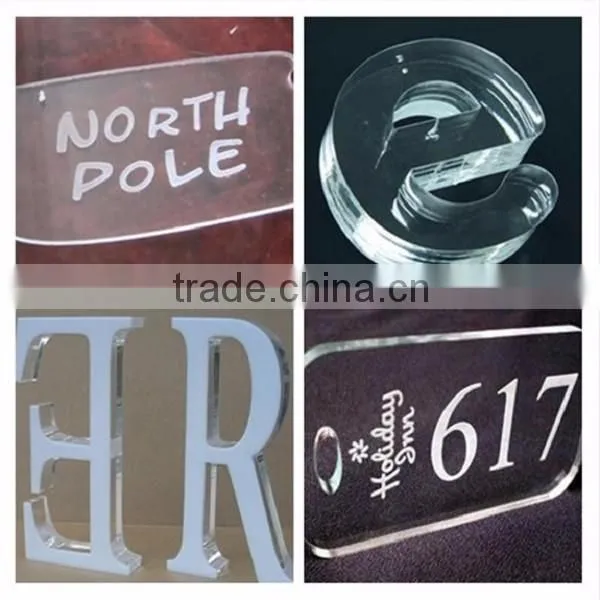

Samples
Packing

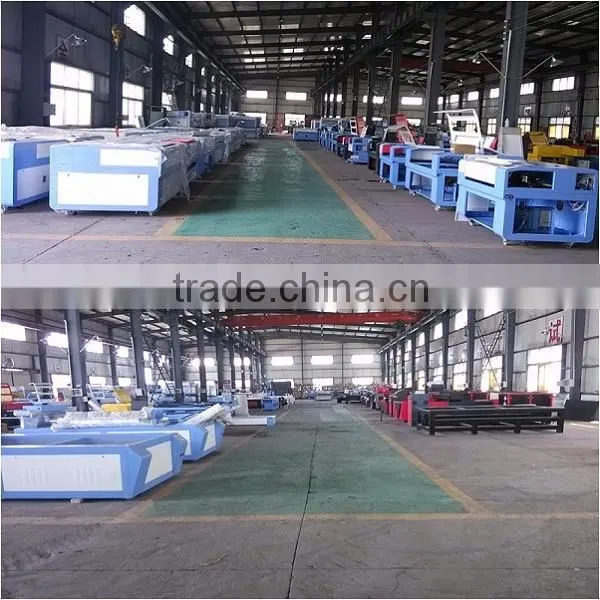

Our workshop
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
FAQ
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
