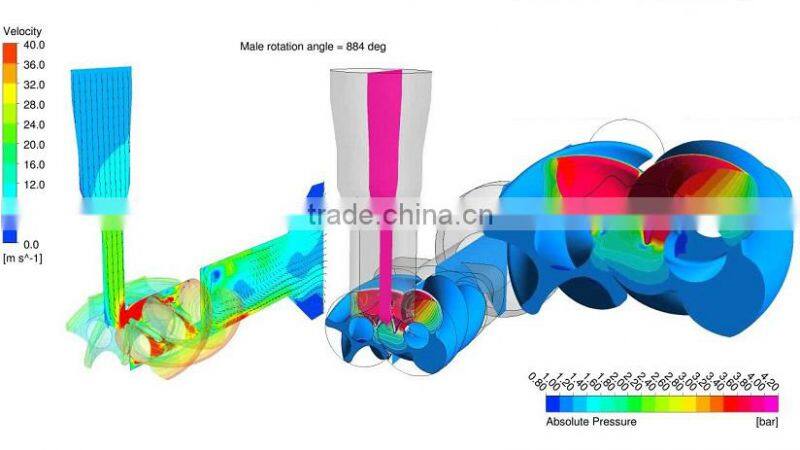

Working Principle :
A screw expander has spaces formed by a male rotor, female rotor, and casing. Each
actuation space has a pressure different from that of the others. Each rotor has surfaces,
each of which receives pressure caused by the pressure difference between the high-pressure
side and the low-pressure side after the expansion. The differential pressures cause rotation
torques to act on the respective rotors, causing them to rotate in opposite directions. The
rotations of the rotors isolate the actuation spaces from the air supply port. The actuation spaces
increase in volume as they proceed toward the exhaust side, expand the steam inside the enclosed
spaces and provide rotational energy to the rotors.The screw expander thus generates kinetic energy
through this continuous sequence of actions .

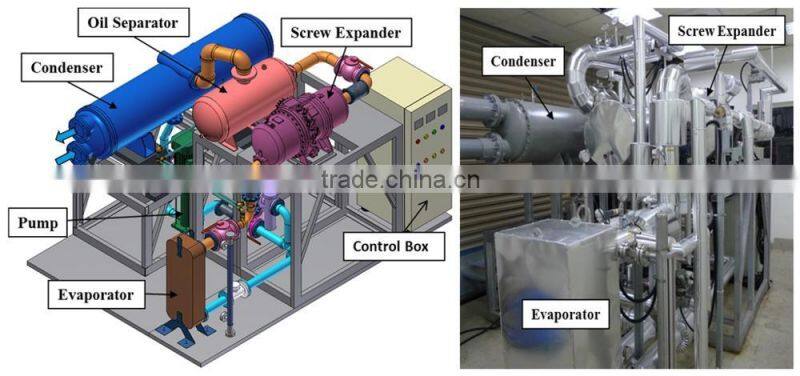

Structure:

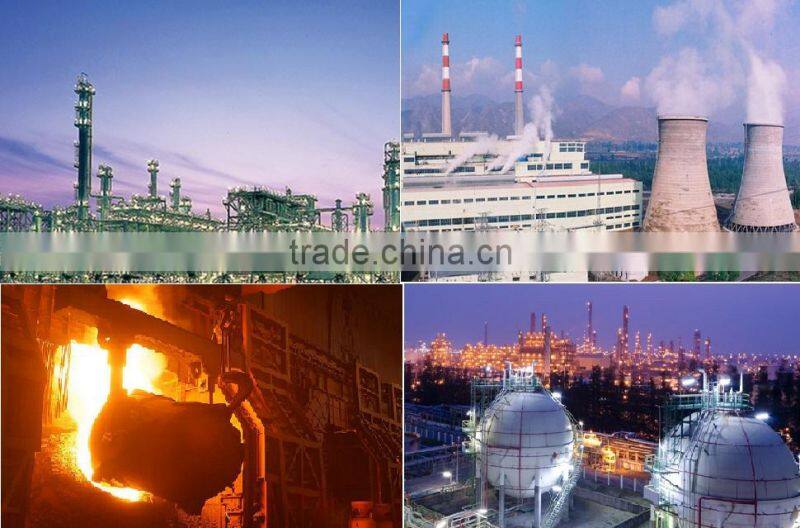

Application:
Steel Mills / Petro Chemical Plants
Heat Recovery System/Pressure Reducer
Power Plants
Cement Plants
Bio Gas Boiler/Bio Mass Boiler/Geothermal/Geo Pressure/Heating Plants/Solar Thermal

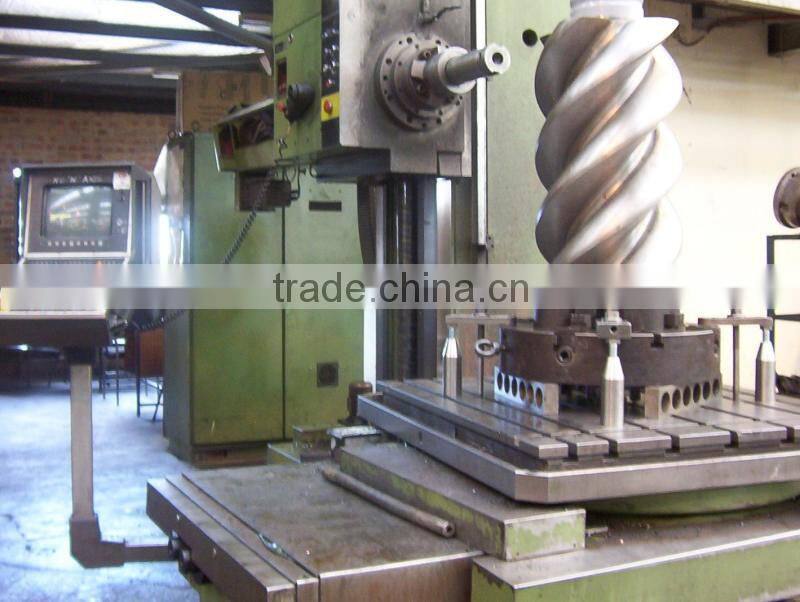

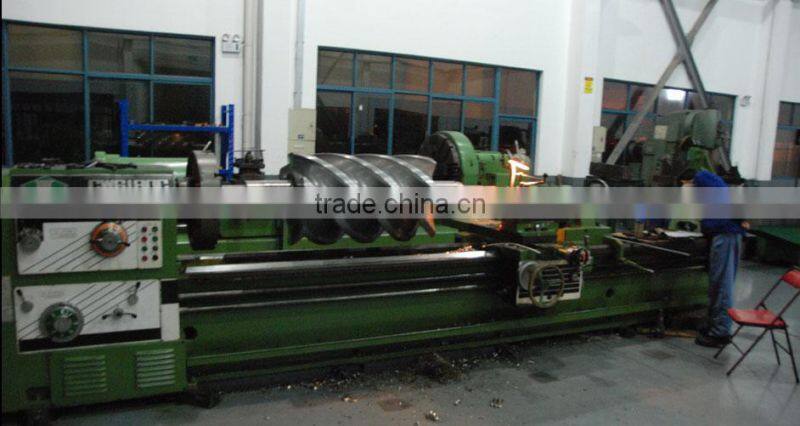

Production Equipment:

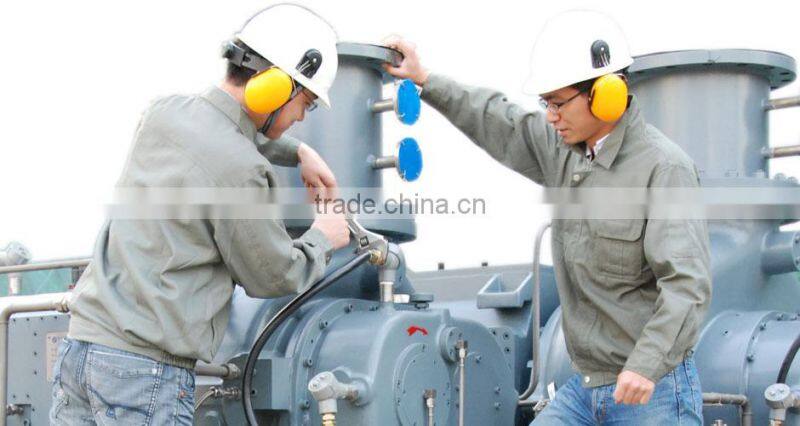

Field View:

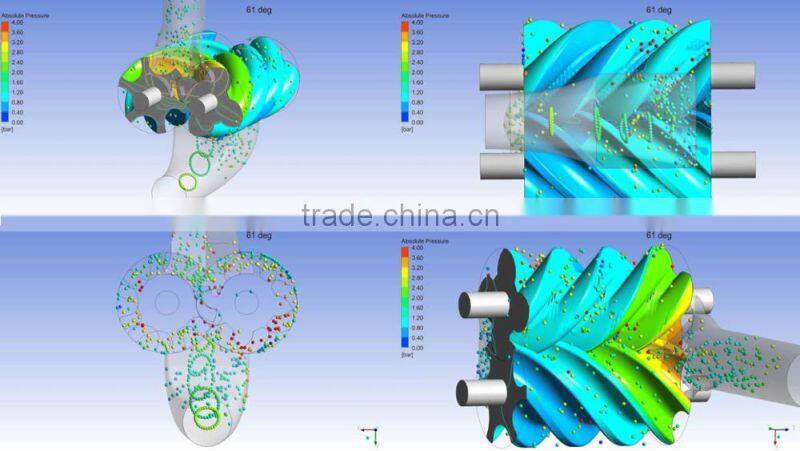

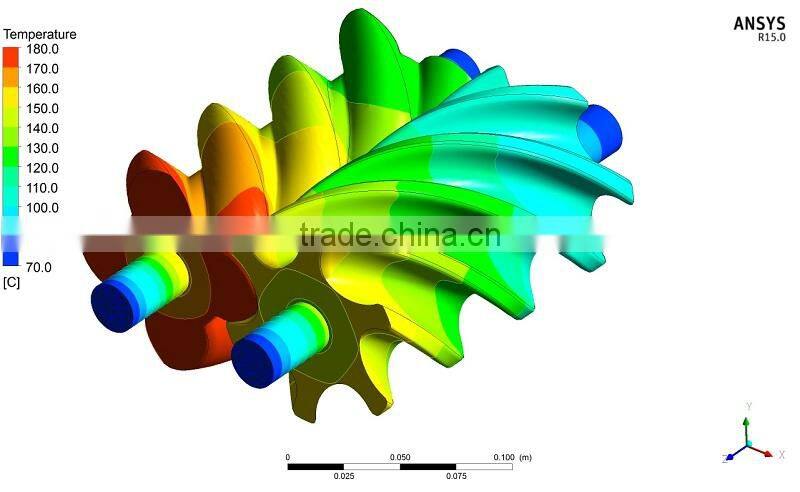

Research &Design:
