Logistics Single Sprocket Power Conveyor Roller(Idlers)
1.These rollers are available for light, medium and heavy duty applications in standard galvanised steel, stainless steel, aluminium and anti-shattered plastic.
2.The commercial high quality underground ball bearings are pressed fitted into tube with swaged ends to prevent drop-off and to have smooth round ends.

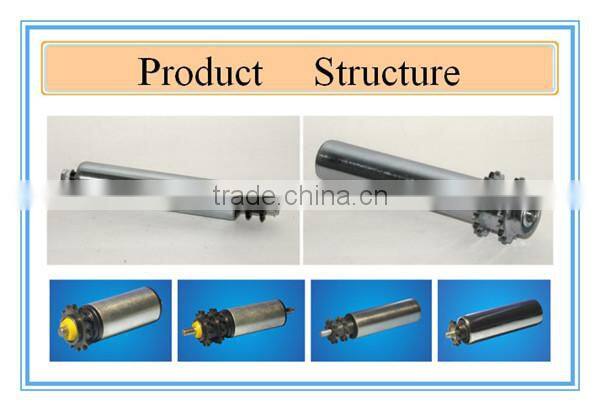

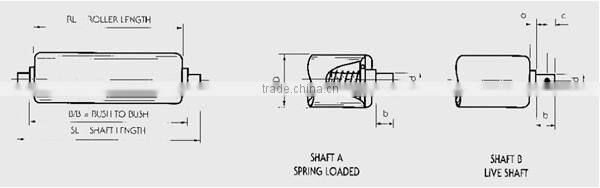

3.The shaft comes in either spring-loaded or live sharft-cotter pin type.
| Steel Roller |
Roller Length(mm) |
Shaft Type |
Dimensions(mm) |
Weight kg/m |
||||||
| a | b | c | D | d | t | |||||
|
Light Duty |
LD25 | A/B | 5 | 10/15 | 5 | 25 | 8 | 1.2 | ||
| LD38 | A/B | 5 | 10/15 | 5 | 38 | 12 | 1.6 | |||
| LD50 | 150min | A/B | 5 | 10/15 | 5 | 50 | 12 | 1.6 | ||
|
Medium Duty |
MD57 | 1200max | A/B | 5 | 10/15 | 5 | 57 | 12 | 1.6 | |
| MD60 | in steps of | A/B | 5 | 10/15 | 5 | 60 | 12 | 2.9 | ||
|
Heavy Duty |
HD60 | 50mm | A/B | 5 | 10/15 | -- | 60 | 15 | 2.9 | |
| HD76 | A/B | 5 | 10 | 5 | 76 | 17/20 | 3.2 | |||
| 6204 BRG | PH60 | Fixed 10f14 4.8.4 | -- | 16 | -- | 60 | 20 | 3.6 | ||
t: thickness of roller pipe
Applications:
1.Minimum ptich distance is L/3
2.Roller length(RL) is at least 50mm longer than product width
3.To determine the capacity of each roller, Divide product weight by the number of rollers supporting it.
N/B
1.Complies with JIS B8803
