Specifications
Gantry cnc plasma cutting machine1.Work area:1300*2500mm
2.Hypertherm power 65A
3.STAEFIRE control system
4.Stepper motor
Gantry cnc plasma cutting machine
Application:
Gantry cnc plasma cutting machine is used for cutting metal materials, such as stainless
steel, mild steel, and Aluminum etc.
Features:
1.All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric
automatic lifting,to assure cutting speed and quality.
2.Dual drive , stable performance .
3.The set-up is very simple, all kinds of CAD graphics can be read directly by our
system trough U-disk. The software can be edict graphics automatically.
4. carbon steel cnc plasma cutting collocated U-disk interface and cutting code auto
converting software for CAD drawing ,CAD drawing can be input directly into the cutter
through U-disk.
Machine parameter:
Model |
Gantry cnc plasma cutting machine |
||
Effective Cutting Width (X axis) |
1300mm |
||
Effective Cutting Length (Y axis) |
2500mm |
||
Plasma power |
LGK |
||
Drive Mode |
Bilateral-side |
||
CNC system |
Beijing STARFIRE CNC |
||
Plasma cutting speed |
50-6500 mm/min |
||
Cutting torch lifting distance |
150mm |
||
Speed setting error |
≤±5% |
||
Max Idle running speed |
12000mm/min |
||
Torch height controller accuracy |
≤±1.0mm |
||
Longitudinal line accuracy |
±0.2mm/10m |
||
Motor and driver |
stepper motor and YAKO driver |
||
Gearbox |
Hubei planet |
||
Drive Method |
Rack and square rails for X Y Z axis |
||
Moving Precision |
0.01mm per step |
||
Power Source |
380V 50/60Hz |
||
Height controller(plasma) |
PHC330-Arc voltage height controller for plasma cutting |
||
Plasma cutting thickness |
1-32mm |
||
length of a side |
±0.5mm |
|
|
Diagonal error |AD-BC| |
±0.5mm |
|
|
Base point return error |
±0.2mm |
|
|
Intersection point error |
±0.5mm |
|
|
Lineation forward- reverse error |
±0.2mm |
|
|

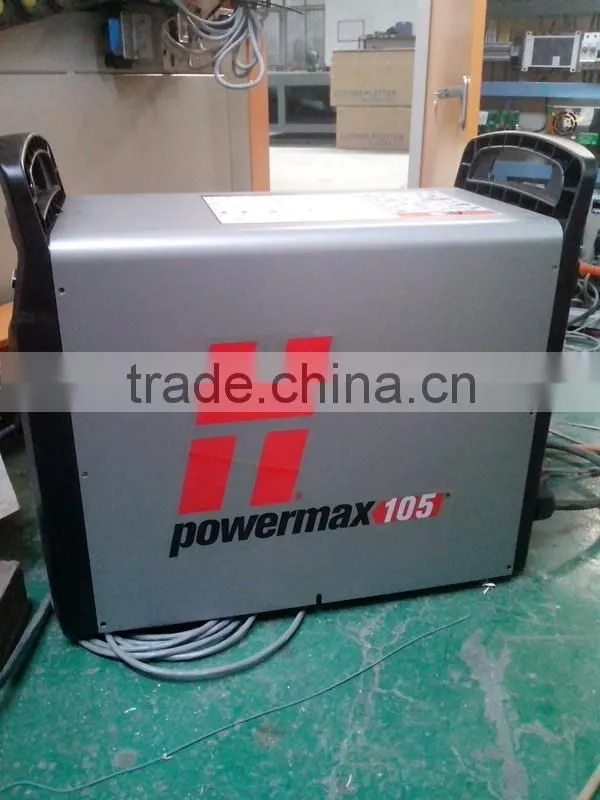

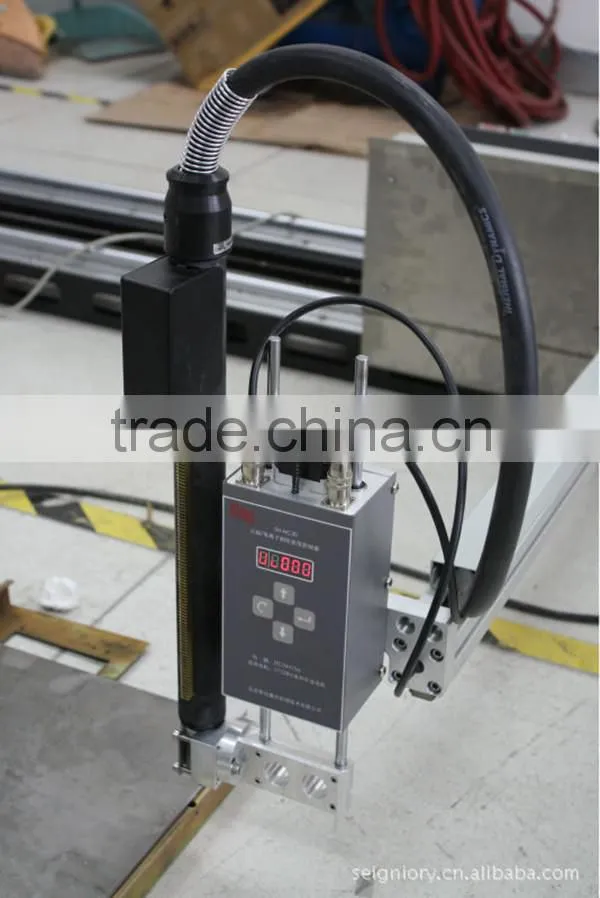

Gantry cnc plasma cutting machine spare parts:

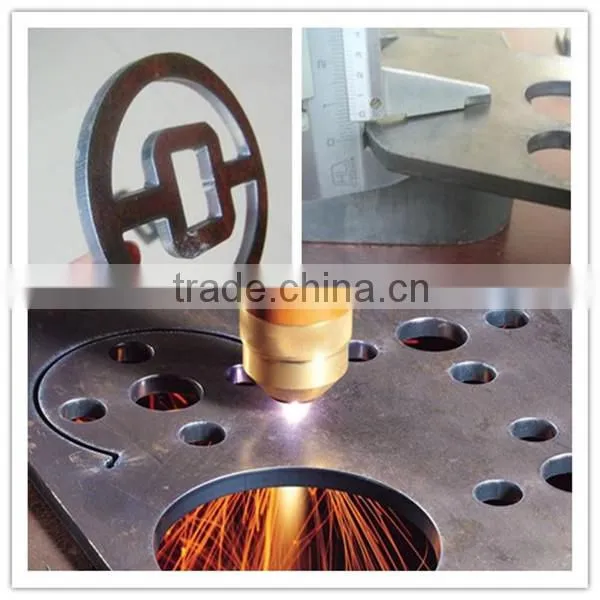

Gantry cnc plasma cutting machine samples:
Machine pictures:
Certificate:
Our service:
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
Your satisfy is our pursue.
