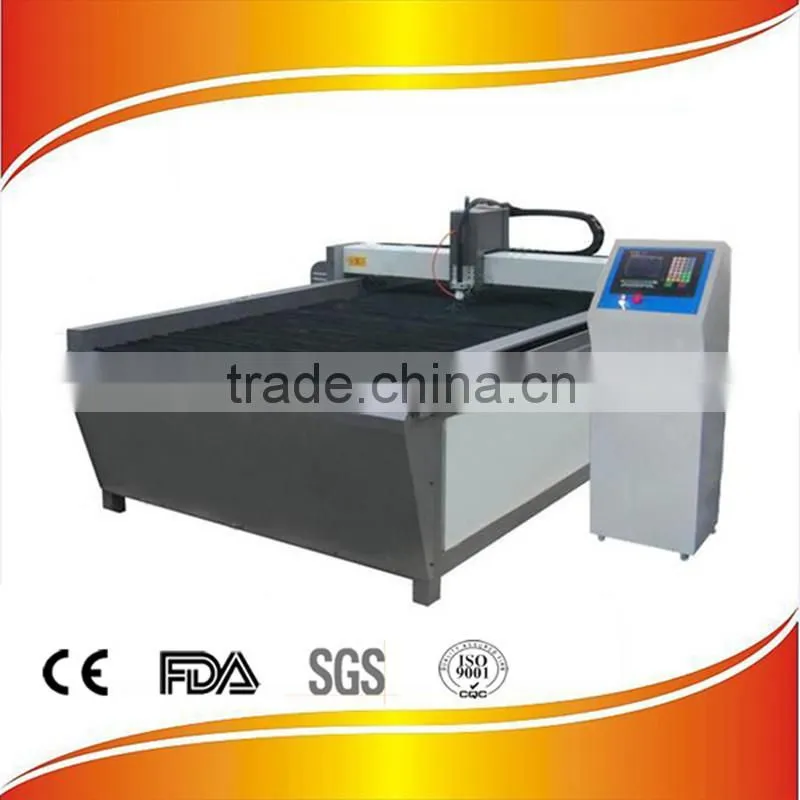

Help CenterRemax Plasma Cutting Machine Step Motor Cutting 0-32mm 1325 Metal Laser Cutting Machine
Related Products
-
Remax Plasma Cutting Cutter Metal Tube Laser Cutting MachineUS$ 8,500 - 15,000MOQ: 1 Set -
Remax Plasma Cutting Cutter Laser Cutting Machine MetalUS$ 8,500 - 15,000MOQ: 1 Set
-
Remax-1530 Cnc Plasma Cutting Machine Factory Directly Welcome to InquireUS$ 8,500 - 15,000MOQ: 1 Set
-
Remax-1530 Cnc Plasma Cutting Machine China OriginalUS$ 8,500 - 15,000MOQ: 1 Set
-
Remax-1530 Cheap Chinese Cnc Plasma Cutting MachineUS$ 8,500 - 15,000MOQ: 1 Set
plasma metal cutting machine
Machine parameter:
Model |
Remax-1325 |
||
Effective Cutting Width (X axis) |
1300mm |
||
Effective Cutting Length (Y axis) |
2500mm |
||
Plasma power |
Hypertherm |
||
Drive Mode |
Bilateral-side |
||
CNC system |
Beijing STARFIRE CNC |
||
Plasma cutting speed |
50-6500 mm/min |
||
Cutting torch lifting distance |
150mm |
||
Speed setting error |
≤±5% |
||
Max Idle running speed |
12000mm/min |
||
Torch height controller accuracy |
≤±1.0mm |
||
Longitudinal line accuracy |
±0.2mm/10m |
||
Motor |
YASKAWA Servo motor and driver |
||
Gearbox |
Hubei planet |
||
Drive Method |
Rack and square rails for X Y Z axis |
||
Moving Precision |
0.01mm per step |
||
Power Source |
380V 50/60Hz |
||
Height controller(plasma) |
PHC330-Arc voltage height controller for plasma cutting |
||
Plasma cutting thickness |
1-32mm |
||
|
|
||
Complete machine accuracy | |||
(Subject to the right drawing) | |||
Side length (Four sides) | |||
1000mm x1000mm | |||
Lineation speed,500-800mm/min | |||
| |||
length of a side |
±0.5mm |
|
|
Diagonal error |AD-BC| |
±0.5mm |
|
|
Base point return error |
±0.2mm |
|
|
Intersection point error |
±0.5mm |
|
|
Lineation forward- reverse error |
±0.2mm |
|
|
Plasma cutter process:
Features:
1.All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,
to assure cutting speed and quality.
2.Dual drive , stable performance .
3.The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk.
The software can be edict graphics automatically.
4.Collocated U-disk interface and cutting code auto converting software for CAD drawing ,
CAD drawing can be input directly into the cutter through U-disk.
5.Tips for each operation is displayed at the screen at any moment ,
so operators can use our system without being trained or reading the instructions.
6.Collocated indicator lights for various hitches.
Hitch diagnosing is clear just at a glance and the maintenance is convenient and quick.
7.There are necessary keys for the movement control in the torch carriage ,
so the operator can easily move the torch to the right spot.
8.With break point or interruption of power ,memory function.
Machine parts:
Sample:
Workshop:
Shipping:
thanks for visit our factory ,if there is any need ,jessica is always waiting for you !!!
