Specifications
aluminum weldingstainless steel/aluminum/ steel/iron welding
laser power:200w/300w/400w
CE

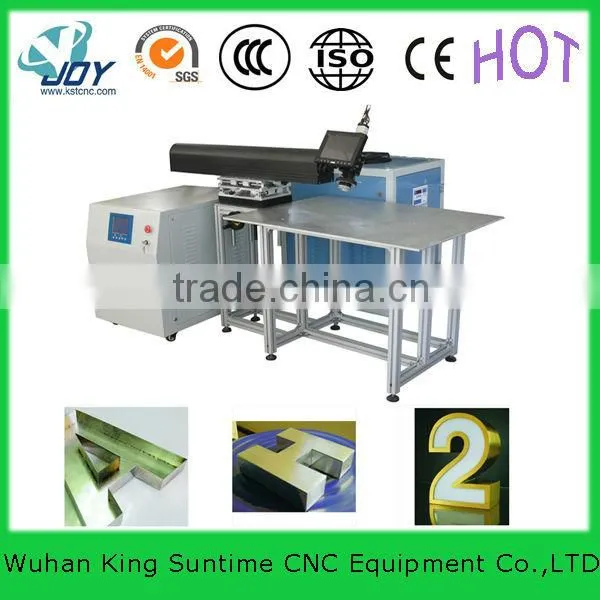

laser metal equipment for aluminum welding
This machine uses doublelamp ceramic reflecting cavity imported from the Britain,featuring high power,
Programmable pulse and intelligent system management.
The Z-axis of the work bench can move upwards and downwards to focus and is controlled by industrial PC.
Standard separate X/Y 2D automatic moving work bench is configured.Rotary clamp(?0mm or 125mm)is also optional. The monitor system uses microscope,red light and CCD .External cooling system is also equipped.
Machine features:
1. Ceramic converging cavity is imported from the Britain.It is corrosion resistant and high temperature resistant ,and has 8-10 years service life.
2. High production efficiency and high welding speed,realizing automatic mass production on the production line 3.
The laser head can be adjusted for 360 degree
4. The sizxe of the light spots can be adjusted
5. The work bench can be moved in two dimensions
Applications:
Suitable for welding of kettle,vacuum cup,stanless steel bowl,sensor,tungsten wire,high power diode(triode),aluminum alloy,laptop sheel,mobile phone battery,door handle,mould,electric apparatus fittings,filter,nozzle,
stainless steel products,golf head,zinc alloy artworks weld point,straight line,circle,square or any plane graphs drawn by AUTOCAD.
Parameters:
Model |
JOY200 |
JOY300 |
JOY400 |
Laser wavelength |
1064nm |
||
Rated output power |
200W |
300W |
400W |
Adjusting range of light spot |
0.1-3.0mm |
||
Pulse width |
≤20ms |
||
Pulse frequency |
≤50Hz |
||
Sighting positioning precision |
RED light,CCD monitor system(optional) |
||
NC system of the work bench |
PC |
||
Work bench stroke |
200×200mm to 1200×1200mm |
||
Positioning precision |
0.02mm |
||
Repeating positioning precision |
±0.01mm |
||
Work bench bearing |
50KG |
||
Power supply |
380V/3-phase/50Hz/40A |
380V/3-phase/50Hz/60A |
380V/3-phase/50Hz/60A |
Integrity power |
9KW |
12KW |
14KW |
Cooking method |
Water cooliing |
||
Master unit dimensions(L*W*H) |
1600mm×800mm×1500mm |
||

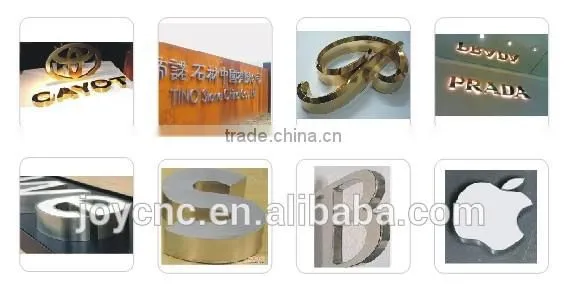

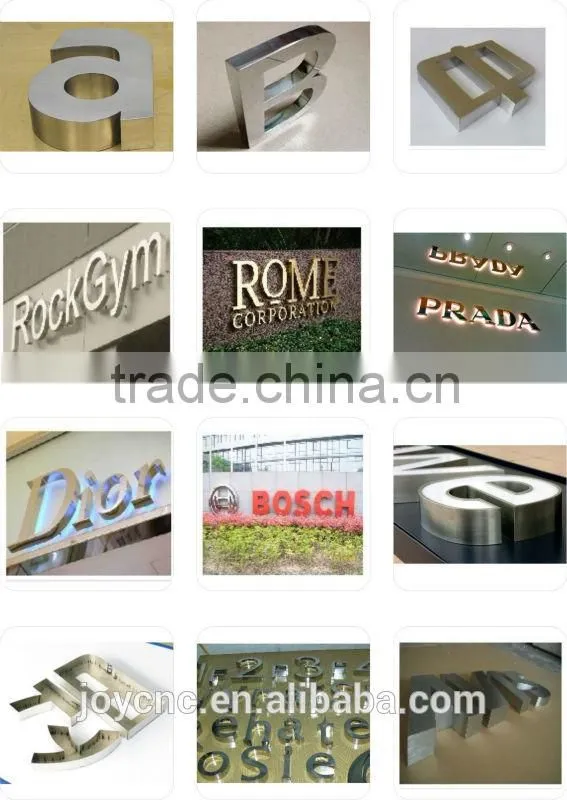

Samples:

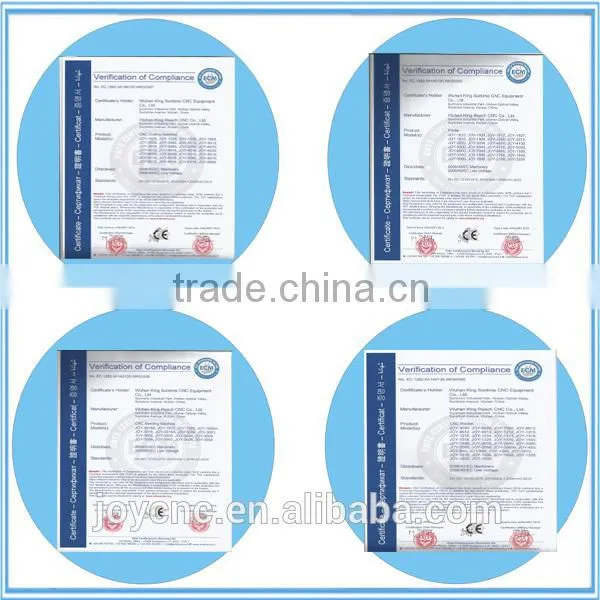

CE of our products:
Customers:
Remarks:
Above price includes: One-year after-sales service
English version operating manual
A series of Videos about how to operation
One-year after-sales service includes:
1. We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The user needs to send us pictures of the broken one, then we will send out the part they need.
2. In the first year, if the buyer needs our engineers to come to the local to fix some problems of the machine that they cannot fix by themselves; we will send our engineers for free. The buyer needs to pay the flights, housing and meals for the engineers in the local.
3. We will offer our service through email and phones if the buyer needs any help on technical problems.
