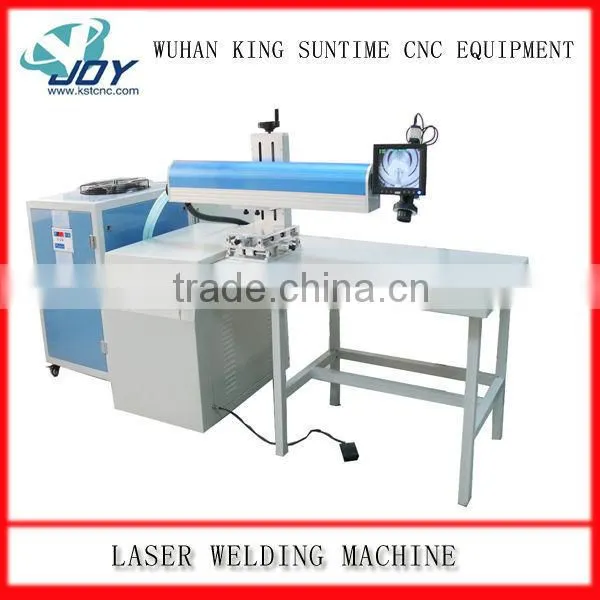

0.1-1.2mm welding thickness for automatic laser welder machine
Details directions:
a. By turning a knob, laser cavity can move backward and forward freely for the convenience
of big size letters welding
b. Laser cavity can move left and right easily for more space when welding big letters
c.The adjustment of parameter setting is very easy, up to 10 sets of parameters can
be memorized for your option
Parameters:
Model No. |
JOY400HZ |
Machinery Part |
Optical system moves 800mm distance and 90° rotate |
Bench Stroke |
Working area 750*1000 |
Bearing of bench |
≤200KG |
Power supply |
220V±10%/50/60Hz OR 380V±10%/50/60Hz |
Laser type |
Pulsed Nd:YAG (xenon lamp) |
Adjustment range of light spot |
0.1~0.3mm |
Size of light spot |
0.2~3.0mm |
Laser wavelength |
1064nm |
Pulse width |
≤15ms |
Max laser power |
400W(optional:200-600w) |
Pulse frequency |
≤50Hz |
Laser output |
200mm |
Laser cooling |
Water cooling |
Observation system |
CCD( microscope for option) |
Application:
Applied for the welding of various metal letters, LED illuminated letters, customized metal signage,
and exterior billboards.
Features:
1. red light fast positioning, CCD display, microscope optional
2. Adjustable working table allows welding from small size to big size of work piece
3. Fast working speed; professional jig ensures the focus fixed and makes welding easier
without using CCD or microscope
4. Slight distortion and affect by heating.
5. Capable of partial heating process.
6. Able to deal with complex, profiled, or tiny letters.
7. Low noise and no pollution.
8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
9. New metal processing technology brings higher quality of end products.
Prospect of AD metal letters/signage welding industry:
With the booming of global advertising industry, metal letters has been more and
more popular because of its colorfulness, attractiveness, heating-proof, frozen
proof, no deformation, no fadedness (8-10 years color preservation), corrosion proof, rain-proof, and spontaneous combustion proof and some other good features.
AD metal letters are made of stainless steel, aluminum, copper or other metal sheet being cut,
polished, hemmed, and welded. The core feature of AD metal letters is being rustproof,
with long life span and dimensional looks. It’s widely used in LED illuminated billboard,
exterior/interior signs, branding, door plate and etc.
Regular combination and fixing of metal letters are done via glue, rivets or soldering,
but all of them have big defects. Metal letters combined by glue always get loose with time
goes by, especially at outdoors. Fixing by rivets sounds good, but not goodlooking.
Soldering is never a green way of fixing metal letters because of the poisoning gas produced
when processing.
However, laser welding technology makes two metal sheets become one only
by a few melting spots. From any aspect, laser welding is the best solution and the greenest.

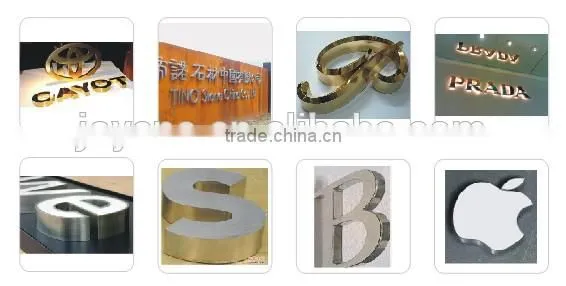

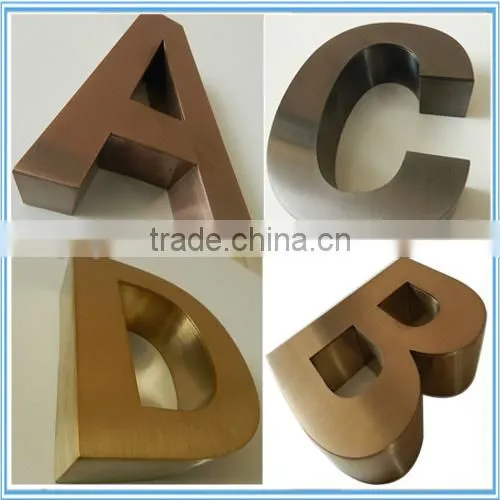

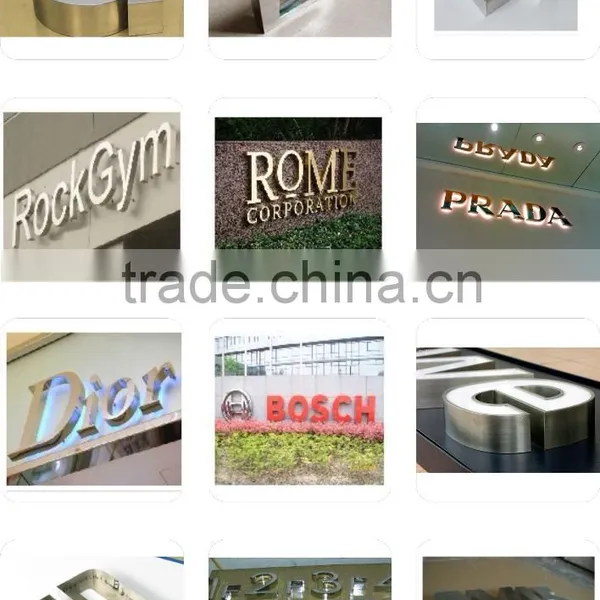

Samples:
Remarks:
Above price includes: One-year after-sales service
English version operating manual
A series of Videos about how to operation
One-year after-sales service includes:
1. We will offer some of the parts for free in the first year.
The buyer needs to pay for the shipping cost for the parts.
The user needs to send us pictures of the broken one, then we will send out the part they need.
2. In the first year, if the buyer needs our engineers to come to the local to fix some problems of
the machine that they cannot fix by themselves; we will send our engineers for free.
The buyer needs to pay the flights, housing and meals for the engineers in the local.
3. We will offer our service through email and phones if the buyer needs any help on technical problems.
