Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HanYu pellet cooler |
Model Number: | HYLQ-1.5 | Voltage: | 380v or according to your requirements | Power(W): | 1.5+0.25/1.5+1.5KW |
Certification: | CE ISO SGS | Warranty: | 5 years wood pellet line horizontal cooler | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Fashionable hot sale wood pellet line horizontal cooler
Specifications of wood pellet line horizontal cooler:
1.Compact structure pellet cooler.
2. energy saving pellet cooler.
3. less investment pellet cooler.
4. easy operation and maintenance pellet cooler.
Description of wood pellet line horizontal cooler:
This type of counter flow cooler is for biomass energy pellets and animal, livestock,poultry pellets.
It is mainly to cool 2-8mm dimension pellets, when outlet from pellet machines, the hot pellets
temperature is about 60-80 centigrade, after cooling. the temperature is not higher than
room temperature +3-5.
The cooling theory is that cold air goes inside of cooler from bottom to top, hot pellets goes to
cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will
cool them at the bottom gradually, in this way will reduce pellet broken.If cold air also go to
cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,
then pellets will be easily broken, especially pellets surface. In this way can cool fully and
equally, pellet broken rate is smaller than 0.2%.
It generally works with cyclone and air fan, air lock. which is used to clean dust, also it can
install a screener at the cooler bottom, which can separate dust and good pellets after cooling.

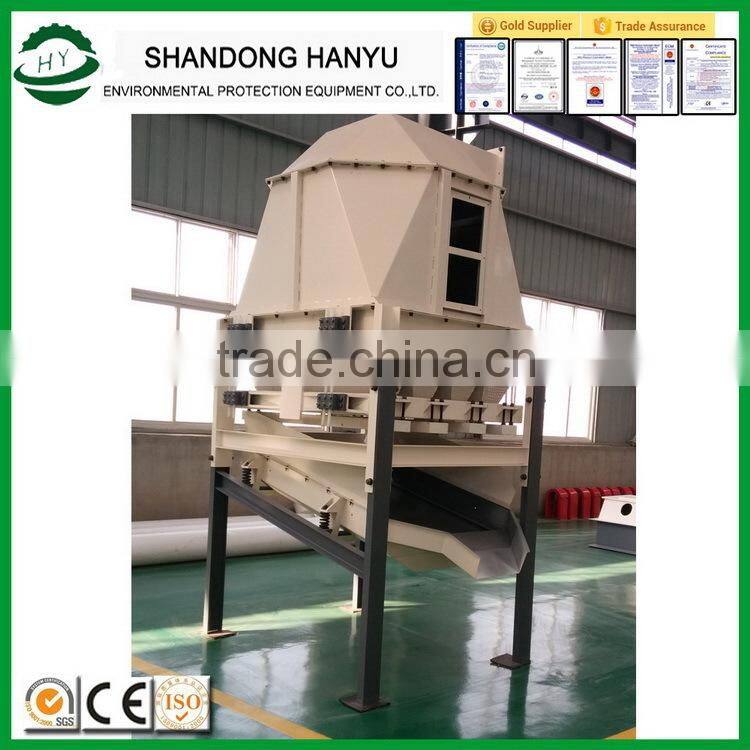

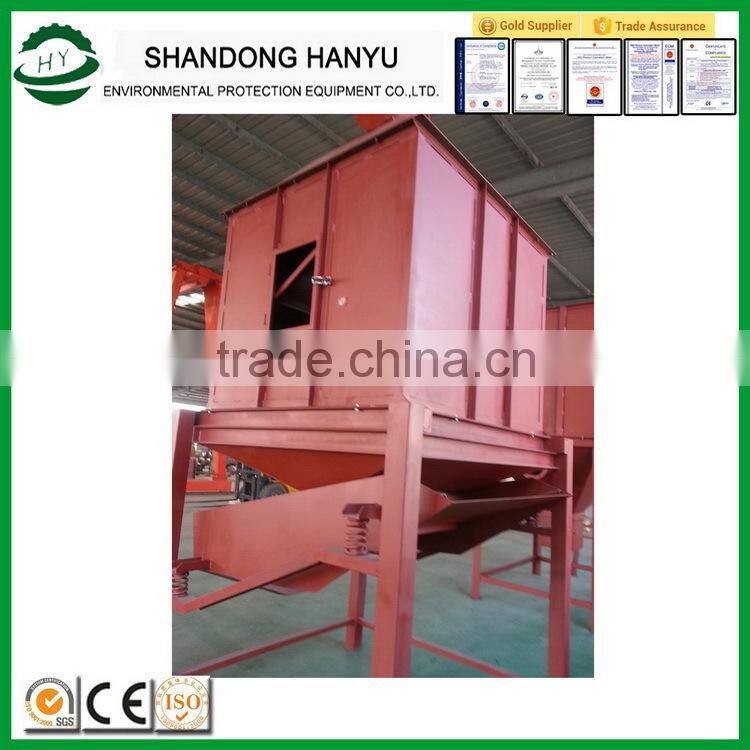

Pictures of wood pellet line horizontal cooler:
wood pellet line horizontal cooler diameter:
Model | Power(kw) | Capacity(t/h) | Note |
HYLQ-1.2 (octagonal) Vibration | 1.5+0.25 | 0.8-1 | Cooling host, Up air-lock 1, fan (5.5kw), Cyclone φ80 |
HYLQ-1.5 shock / tow row | 1.5+0.25/1.5+1.5 | 1-2T | Cooling host, Up air-lock 1(1.5kw), fan (7.5kw), Cyclone φ80 |
HYLQ-2.5-type vibration / tow row | 2.2+0.55/2.2+2.2 | 3-5T | Cooling host, Up air-lock 1(2.2kw), fan (18.5kw), Cyclone φ100 |
HYLQ-4 type vibration / tow row | 3+0.37/2.2+3 | 5-8T | Cooling host, Up air-lock 1(3kw), fan (305kw), Cyclone φ130 |
HYLQ-6-type vibration / tow row | 4+0.37/3+5.5 | 8-12T | Cooling host, Up air-lock 2(4kw), fan (45kw), Cyclone φ150 |
Services for the wood pellet line horizontal cooler:
1. We treat customers as gods, and provide considerate services from shipment to maintenance, including professional free training, guidance, installation,and debugging.
2. After sale, we provide one year's warranty. we will help to solve any mechanical problems in time. Also engineers are available to service overseas.
