Good CNC Laser Welding Machine

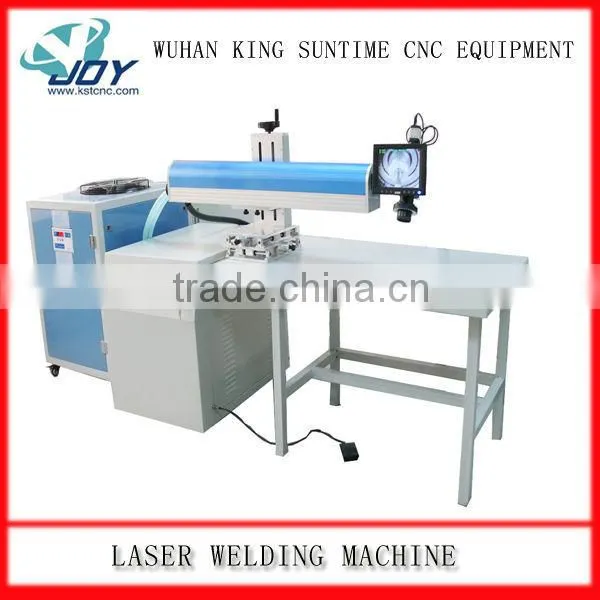

A,Machine Introduce:
This machine adopts the England imported double ceramic lamp housing,
power strong, programmable pulse and intelligent management system. Workbench
Z axis can move up and down electric focus, industrial control PC. Configuration
standards separate 2 d automatic X/Y moving workbench. The other optional rotary
fixture (optional) from 80 mm or 80 mm. Monitoring and control system using microscope,
red light and the CCD. With external cooling system.
B:Features:
1,Adopts the England imported ceramic light-gathering cavity, corrosion resistant, high temperature resistant, cavity life eight to 10 years.
2,High efficiency, fast welding speed, can realize the automatic assembly line mass
production.
3, Laser head can rotate 360 °
4,Light spot size can Electric adjustment.
5.Table can electric two-dimensional direction
C. Applicable materials and industry:

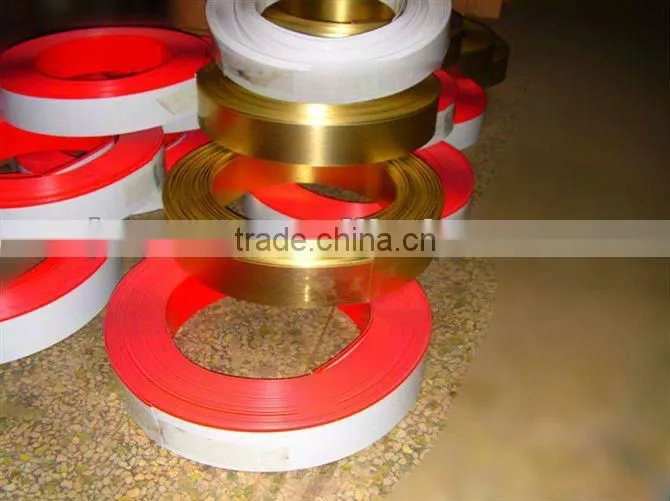

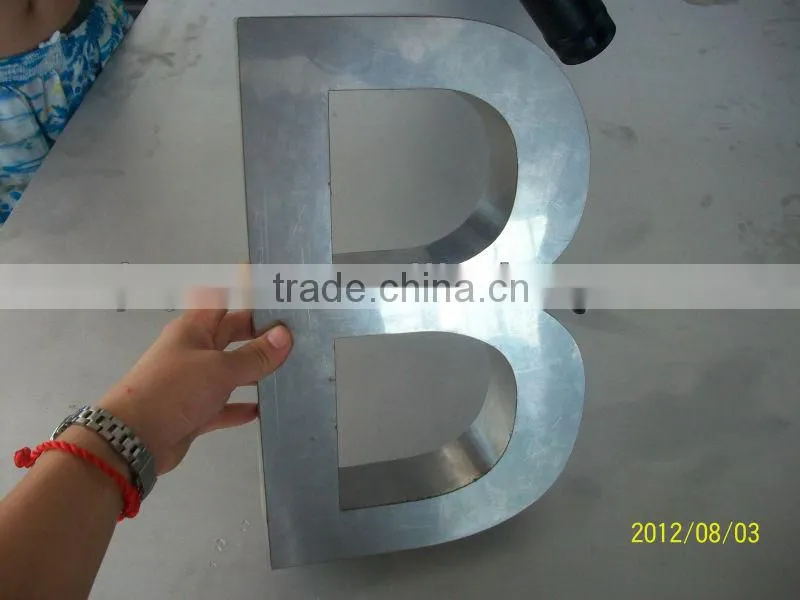

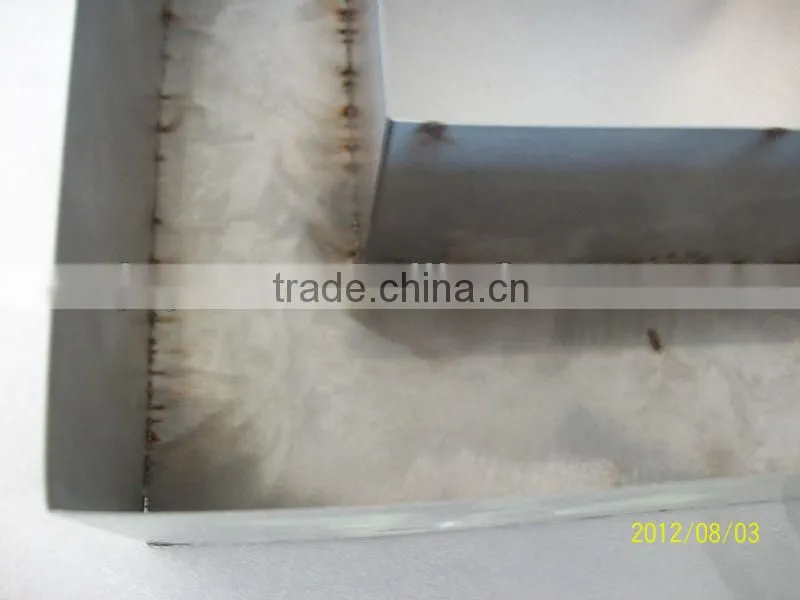

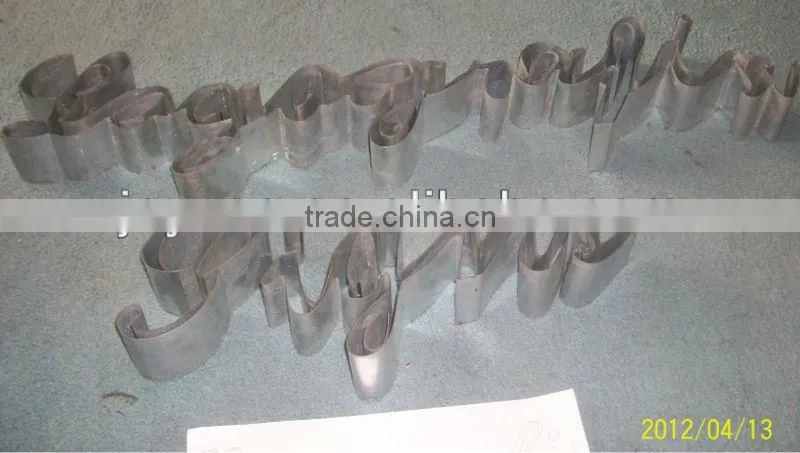

Applicable to the kettle, vacuum, advertising words, stainless steel bowl, door handles,
electrical accessories, filter, choke, stainless steel products, golf head, copper, aluminum
and zinc alloy crafts such as welding. Can be welding graphics: point, line, circle, square,
or by AUTOCAD software to draw arbitrary graphics.
D.SYSTEM PARAMETERS:
Model |
JOY200 |
||
Max. Laser power |
200W |
||
laser wavelength |
1064nm |
||
pulse width |
≤20ms |
||
Double hit laser welding frequency |
≤50Hz |
||
Spot size adjustable rang |
0.1-3.0mm |
||
spot size |
0.2-3.0mm |
||
full power |
≤9KW |
||
Voltage |
380V/three phase /50Hz/60A |
||
Max. Bearing for the working table |
≤200Kg |
||
working area |
200×200mm -1200×1200mm |
||
working repeatability |
±0.01mm |
||
positional accuracy |
±0.02mm |
||
|
collimation Positioning
|
Glow /CCD monitoring system |
||
cooling system |
water cooling |
||
machine boundary dimension |
1500×750×1200mm |
||
E,Equipment system description:
materials:
Remarks:
Above price includes: One-year after-sales service
English version operating manual
A series of Videos about how to operation
One-year after-sales service includes:
1. We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping
cost for the parts. The user needs to send us pictures of the broken one, then we will send out the
part they need.
2. In the first year, if the buyer needs our engineers to come to the local to fix some problems
of the machine that they cannot fix by themselves; we will send our engineers for free. The buyer needs
to pay the flights, housing and meals for the engineers in the local.
3. We will offer our service through email and phones if the buyer needs any help on technical problems.
