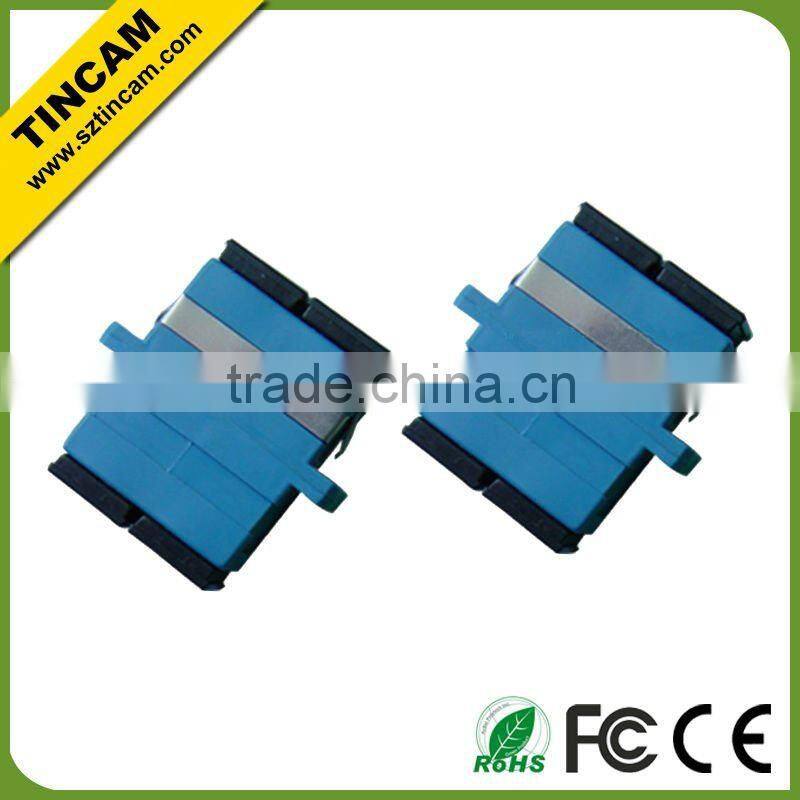

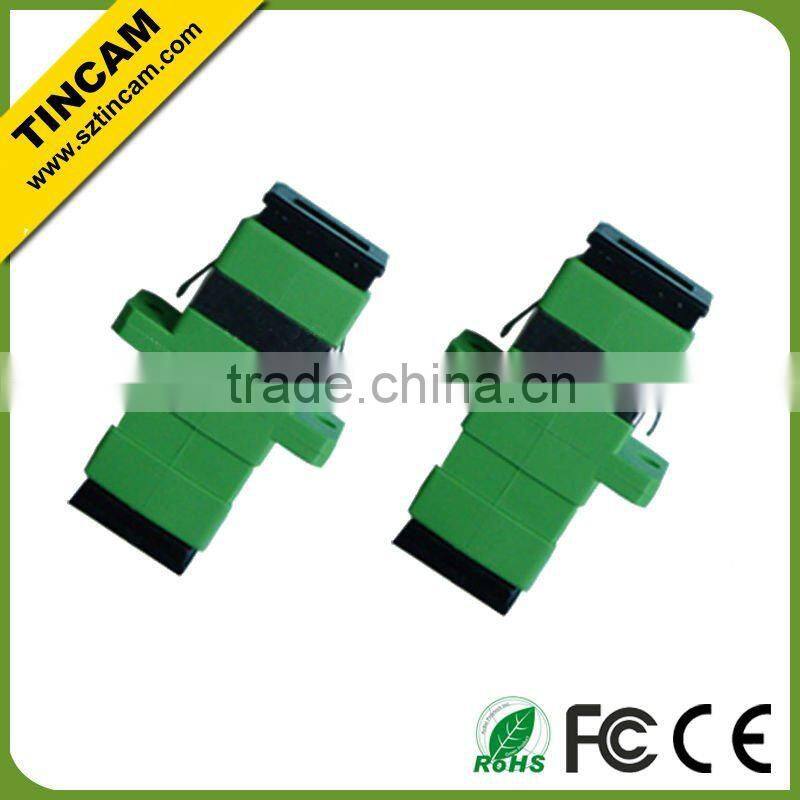

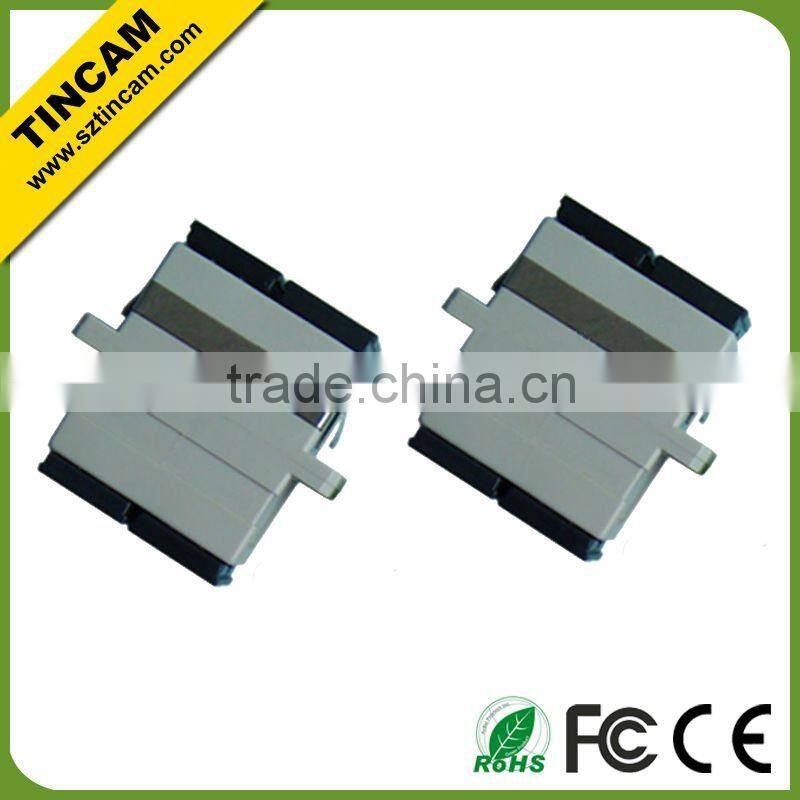

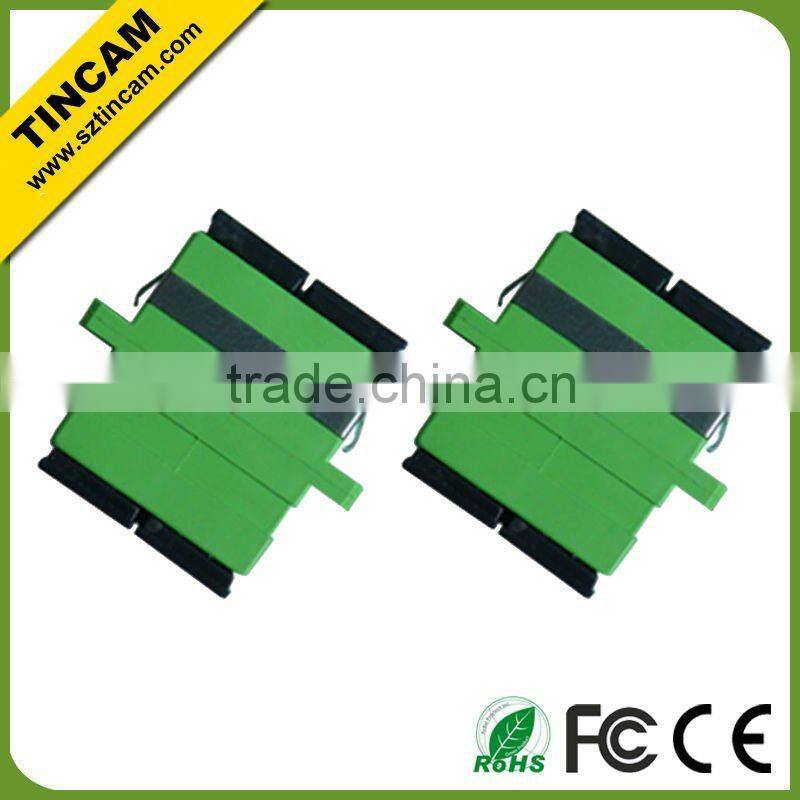

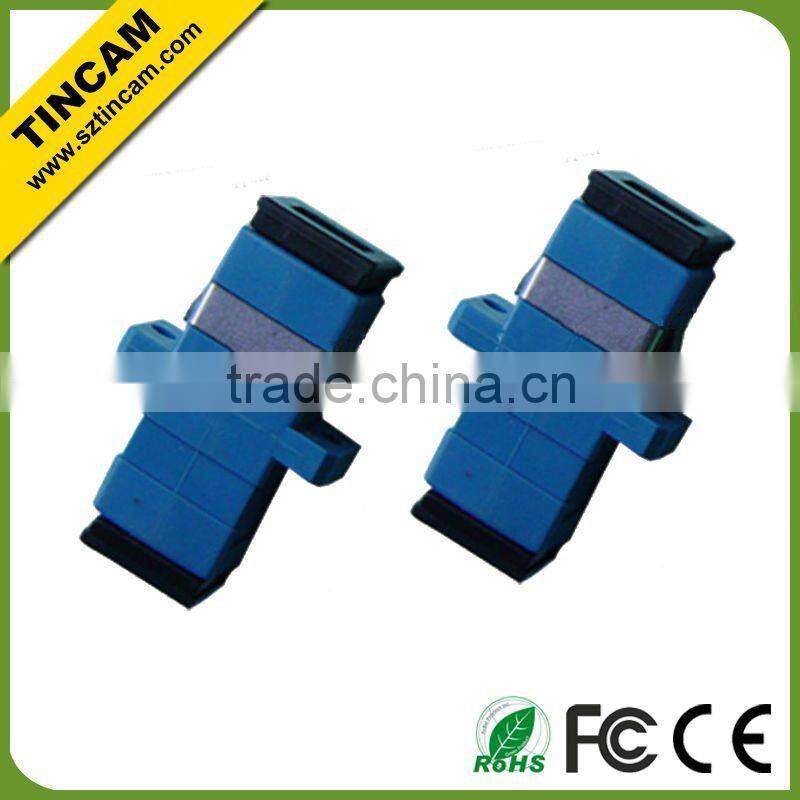

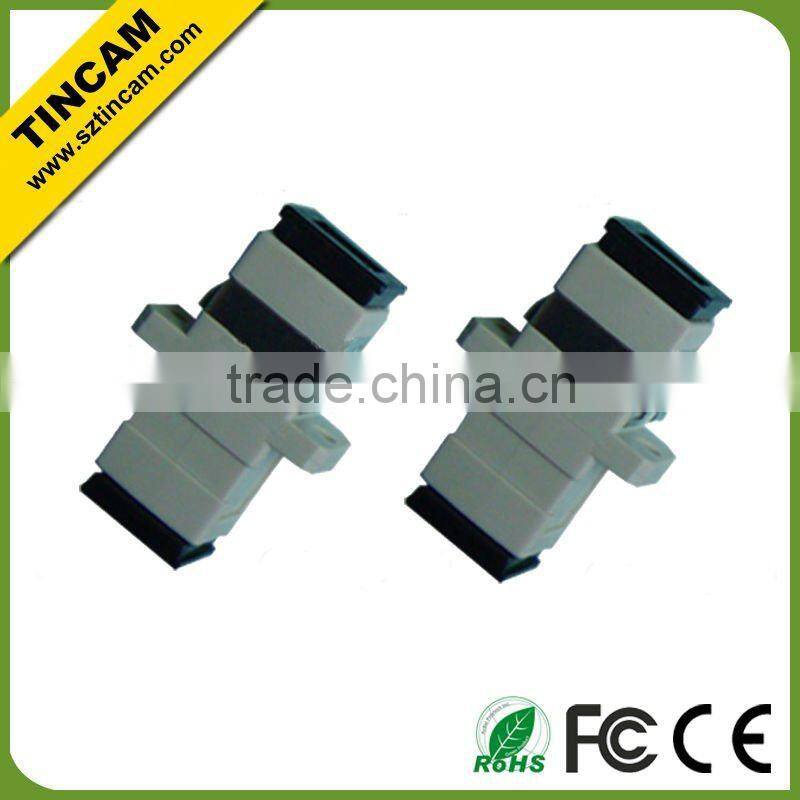

Help CenterSC APC SM DX Fiber Optic Adapter
Related Products
SC adaptors
Features
n Telcordia, ANSI, TIA/EIA, and ISO compliance
n Color coding & polarization
n High precision alignment
n Low insertion and return loss and back reflection
Application
n CATV system
n Active device/transceiver
n Telecommunication networks
n FTTH and FTTX; Metro; Multimedia
n Data processing networks; Video
n Premise installation
n Gigabit Ethernet; Testing equipment; Fiber LAN
Techical Specification
Product Type | SC Adapter | |
Mode | Single mode | Multi mode |
Insertion Loss | ≤0.2dB | ≤0.3dB |
Return Loss | ≥45dB | -- -- |
Mating Durability (500times) | Additional Loss≤0.1dB Return Loss Variability<5dB | |
Temperature Stability(-40°C~85°C) | Additional Loss≤0.2dB Return Loss Variability<5dB | |
Operating Temperature | -40°C~+85°C | |
Storage Temperature | -40°C~+85°C | |
Order information
TBC | — | SC | / | PC | — | SM | — | SX | |||||||||
0 | 1 | 2 | 3 | 4 | |||||||||||||
0 | Brand name | ||||||||||||||||
1 | Connector : LC,SC,FC,ST,E2000,DIN,D4,MU,MTRJ,etc. | ||||||||||||||||
2 | Lapping Way : PC&APC | ||||||||||||||||
3 | SM = Single mode MM = Multimode | ||||||||||||||||
4 | Fiber Number SX(Simplex) or DX(Duplex) 4X | ||||||||||||||||
