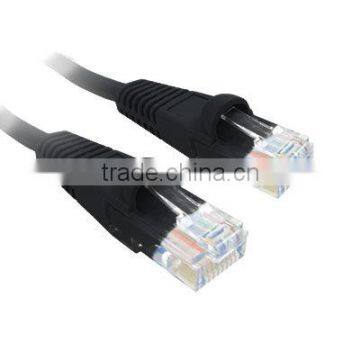

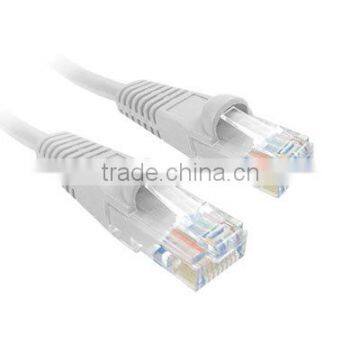

RJ59 Cat5e UTP Cable Lan Cable with High Quality

RJ59 Cat5e UTP Cable Lan Cable with High Quality

Features

TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC

Fire protection – IEC60332-1 (CM)

Application: Horizontal communication cable; for indoor installation

Wiring Scheme

ANSI/TIA/EIA-568-C.2: T568A & T568B

ISO/IEC 11801: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)

Cordage

Construction: 4 pairs, 7 strandsed oxyge-free copper,24 AWG, UTP CAT5e

Pair Identification: Pair1= Blue/White    Pair2= Orange/White

                                 Pair 3= Green/White  Pair4= Brown/White

Outer Cable Diameter: 5.5mm ± 0.2 mm

Outer Jacket: PVC/LSZH Jacket

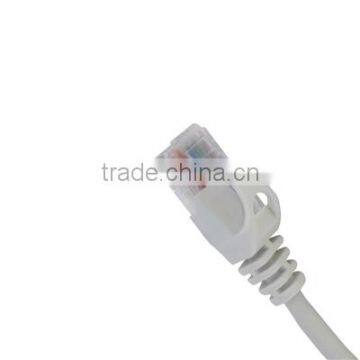

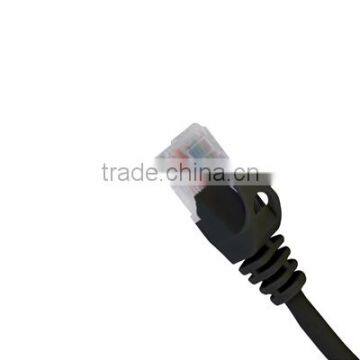

Plug

Type:Unshielded RJ45 8P8C Modular Plug

Housing: UL listed 94V-0/1/2 flame retardant polycarbonate

IDC blades: phosphor bronze, gold plating over 100 μin of nickel in contact area

 MECHANICAL

Retention: 50 N (11 lbf) for 60±5 s             Installation Temperature: 0°C to +60°C

Mating cycle life: min 750 cycles                Operating temperature: -20°C to +60°C

Tensile strength: ≥ 20 N per wire   Minimum bend radius: 4 outer cable diameters

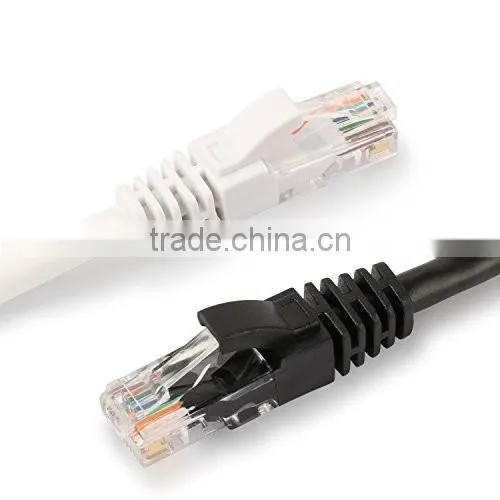

Boot Type

Product Details

Test Limit

 Component Level Tested ( DTX 1800 Fluke ISO Patch Cord Test )

Fluke DTX1800 Channel Test

Production Procedure

Color

Packing Rate

Package

Factory Info
