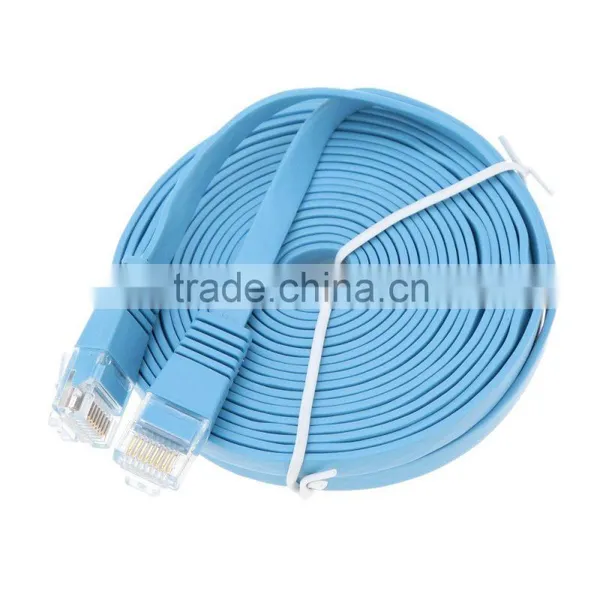

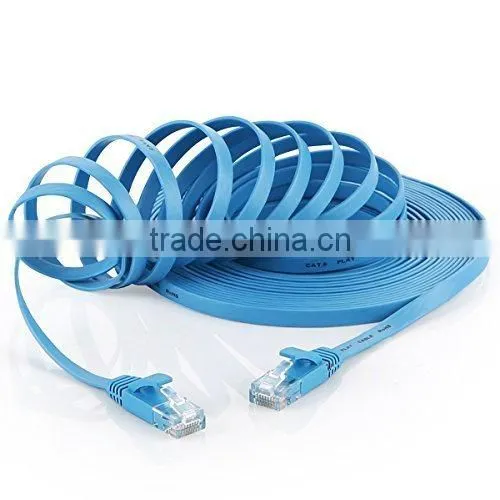

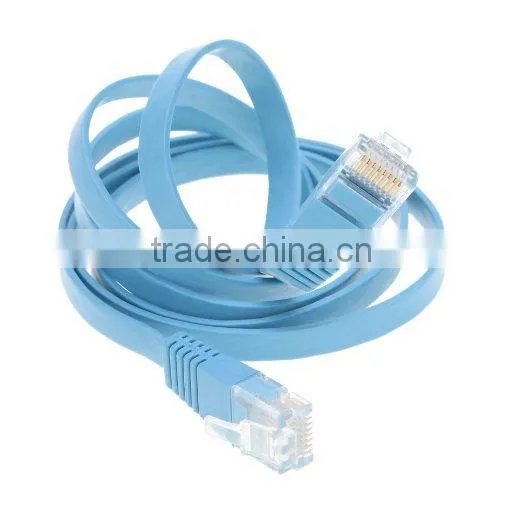

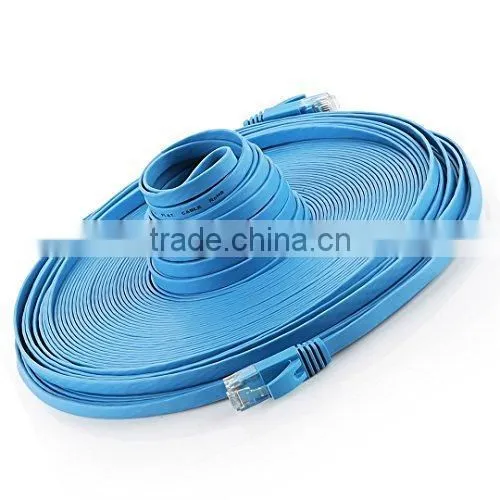

Flat UTP Ethernet Cable Cat 6 with High Quality

Features

TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC

Fire protection – IEC60332-1 (CM)

Application: Horizontal communication cable; for indoor installation

Wiring Scheme

ANSI/TIA/EIA-568-C.2: T568A & T568B

ISO/IEC 11801: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)

Cordage

Construction: 8 cords, 7 strandsed oxyge-free copper,36 AWG, UTP CAT.6 flat cable

Pair Identification: Pair1= Blue/White Pair2= Orange/White

Pair 3= Green/White Pair4= Brown/White

Outer Cable Diameter: width:4mm; thickness:1mm

Outer Jacket: PVC/LSZH Jacket

Plug

Type:Unshielded RJ45 8P8C Short body Modular Plug

Housing: UL listed 94V-0/1/2 flame retardant polycarbonate

IDC blades: phosphor bronze, gold plating over 100 μin of nickel in contact area

MECHANICAL

Retention: 50 N (11 lbf) for 60±5 s Installation Temperature: 0°C to +60°C

Mating cycle life: min 750 cycles Operating temperature: -20°C to +60°C

Tensile strength: ≥ 20 N per wire Minimum bend radius: 4 outer cable diameters

Boot Type

Product Details

Test Limit

Component Level Tested ( DTX 1800 Fluke ISO Patch Cord Test )

Fluke DTX1800 Channel Test

Production Procedure

Color

Packing Rate

Package

Factory Info
